ELECTRICAL
107

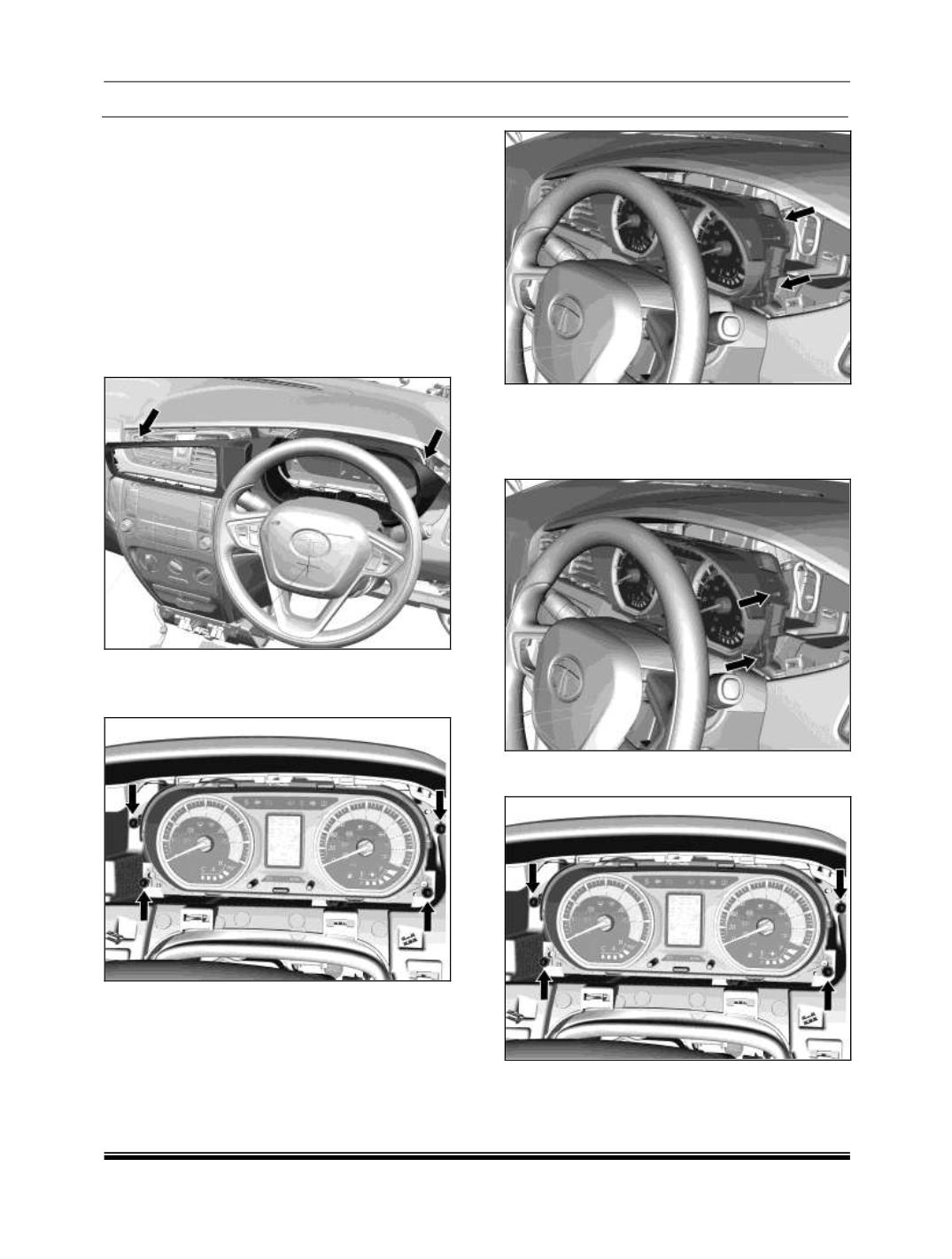

REMOVAL OF INSTRUMENT CLUSTER:
WARNING
Remove the key from key barrel. This is
necessary to ensure proper initialization of
Instrument Cluster Parameters like Odometer
value learning from Immobilizer and DTCs in
other ECUs against Instrument Cluster.
Removing Instrument Cluster with Key IN is
strictly prohibited otherwise it will corrupt the
odometer value.
1. Remove cluster Bezel gently from its position
by using screw driver as shown in figure.
2. Remove all electrical connections.
3. Remove four Instrument cluster mounting
screw as shown in figure
4. Remove
Instrument
cluster
electrical
connections.
5. Remove Instrument cluster
REFITMENT OF INSTRUMENT CLUSTER
1. Locate Instrument cluster to its proper position
as shown in figure and fit it's electrical
connection
2. Fit four Instrument cluster mounting screw as
shown in figure
3. Locate and fit Cluster Bezel to its proper
position as shown in figure
