ELECTRICAL
113

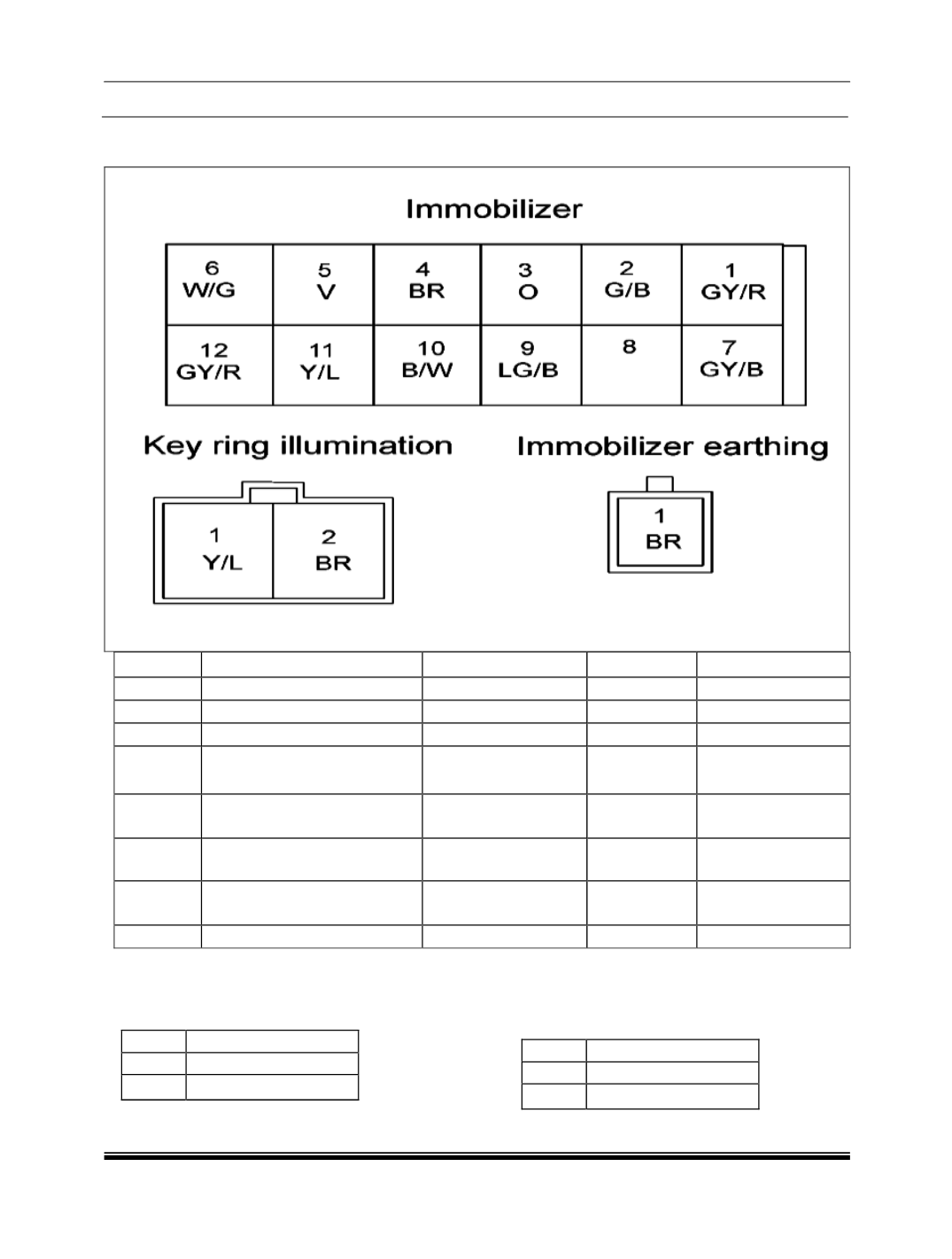

IMMOBILIZER CONNECTOR & PIN OUT DETAILS
PIN
SIGNAL NAME
INPUT / OUPUT
LEVEL
CLASSIFICATIO
N
1
Vbat (KL30)
ICU PWR
POWER
150 mA
2
GND
ICU PWR
POWER
150 mA
3
CAN - H (HIGH-SPEED)
COMMUNICATION
--
--
4
IGN (KL15)
INPUT
HIGH SIDE
HIGH ASSERTION,
2-20 mA
,
2-20 mA
5
STATUS LED
OUTPUT
LOW SIDE
LOW ASSERTION,
2-20 mA
6
LOCKSET ILLUMINATION
INPUT
HIGH SIDE
HIGH ASSERTION,
2-20 mA
7
TRANSPORT MODE
INPUT
HIGH SIDE
LOW ASSERTION,
2-20 mA
8
CAN -L (HIGH-SPEED)
COMMUNICATION
--
--
Immobilizer:
Key ring illumination:
PIN
SIGNAL NAME
1
KEY RING SUPPLY
2
GND
Immobilizer earthing:
PIN
SIGNAL NAME
1
IMMO GND
2
