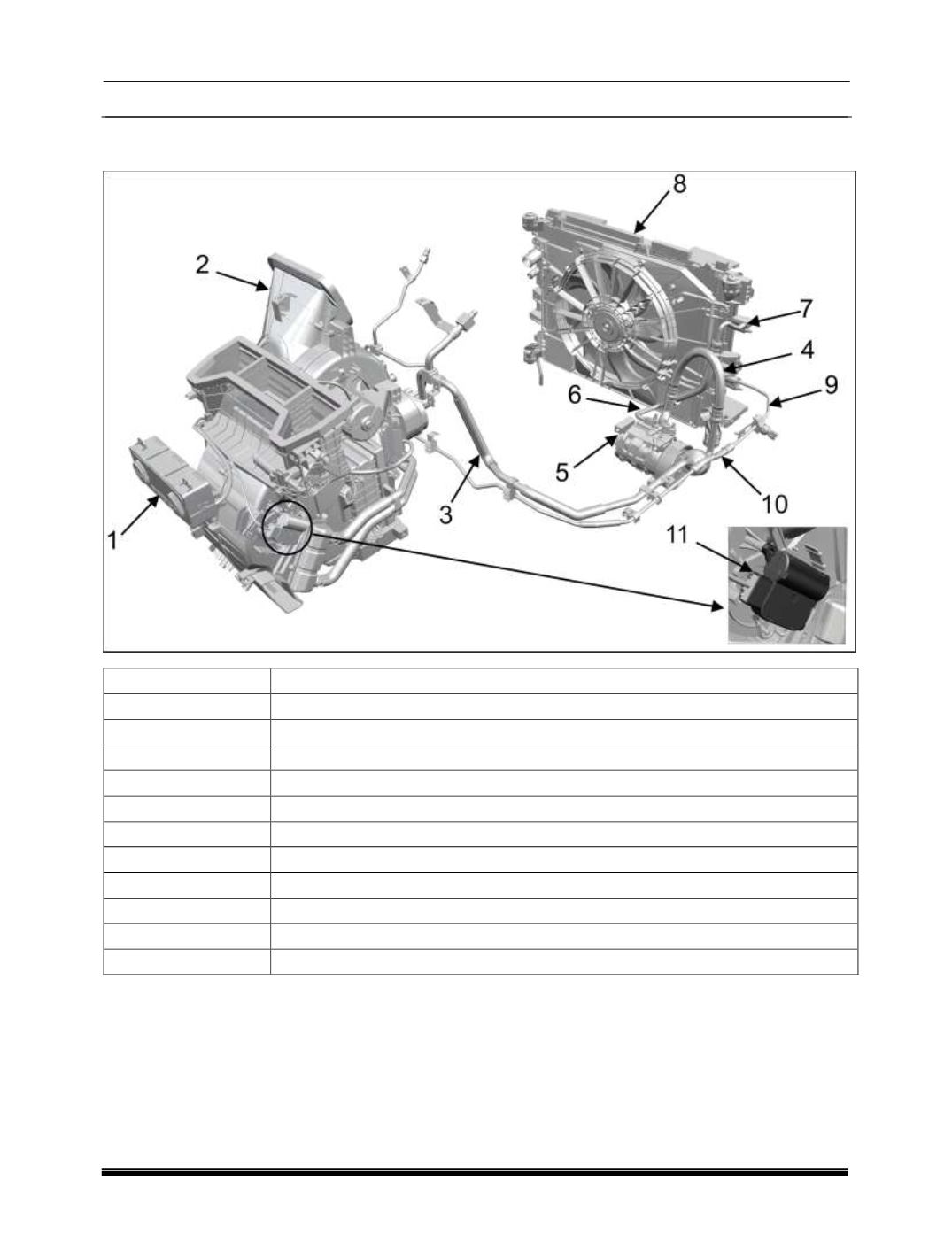

11.18.4 LAYOUT OF FATC SYSTEM
SR NO
COMPONENT
1
FATC CONTROL PANEL
2
FATC UNIT
3
ASSY SUCTION PIPE TXV END
4
ASSY HOSE SUCTION COMPRESSOR END
5
ASSY SEBX11 COMPRESSOR FRT DIRECT MTG
6
ASSY HOSE DISCHARGE COMPRESSOR END
7
ASSY CONDENSOR INLET PIPE
8
ASSY CONDENSOR
9
ASSY CONDENSOR OUTLET PIPE
10
ASSY TUBE LIQUID
11
ACTUATOR MOTOR
