BODY
4

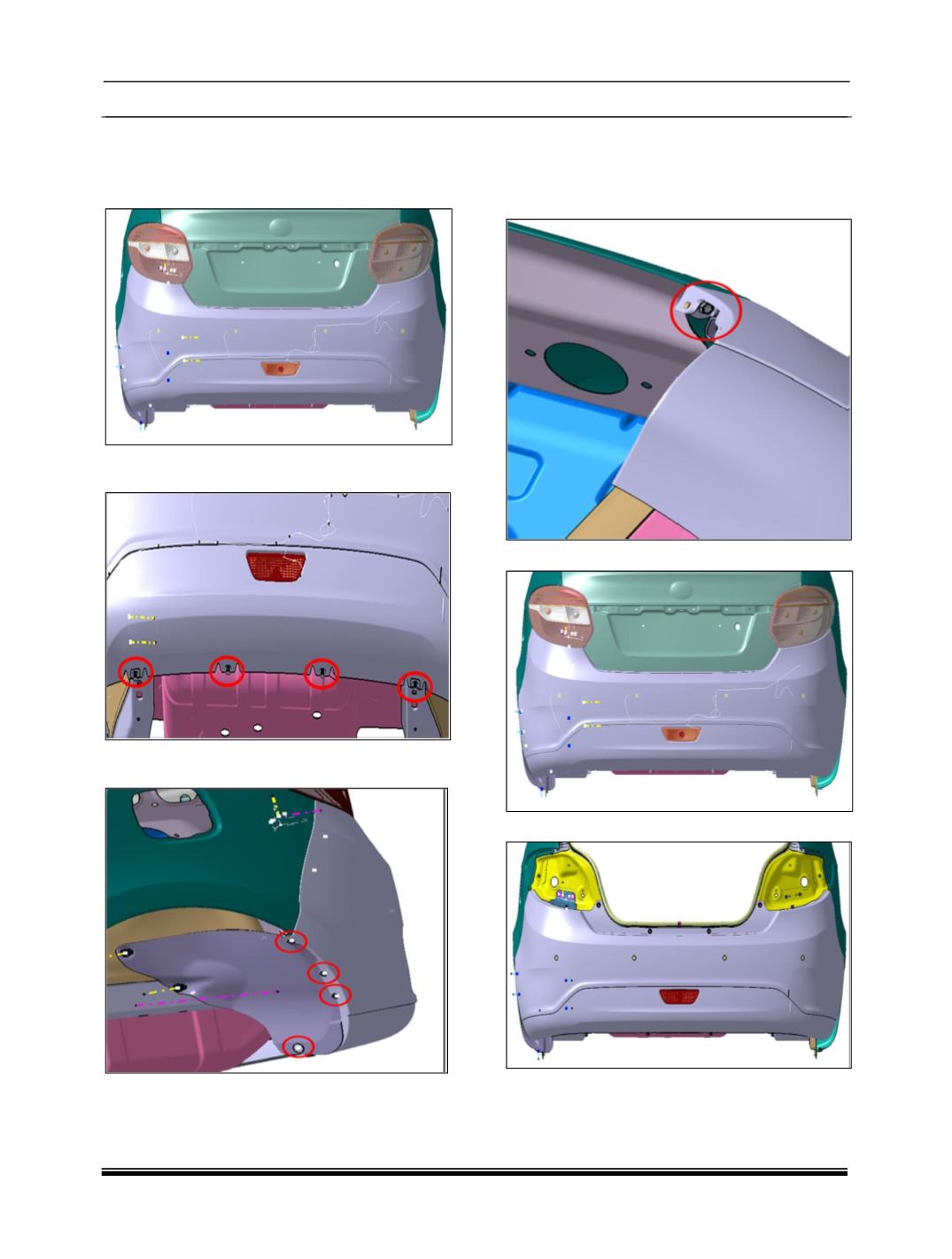

2. Rear Bumper :
Removal :
1. Parking the car on two post and lifting it up to
the height convenient for operator.
2. Removing bottom 4 mountings trim clips of
bumper.
3. Remove the rear wheel arch liner 3 mountings
and 1 trim clip mounting with rear bumper.
4. From side bottom side, Remove the rear
bumper 1 direct mounting with body side
outer.
5. Lower the car from the two post lift.
6. Open trunk lid, Remove the rear tail lamp.
