BODY
1

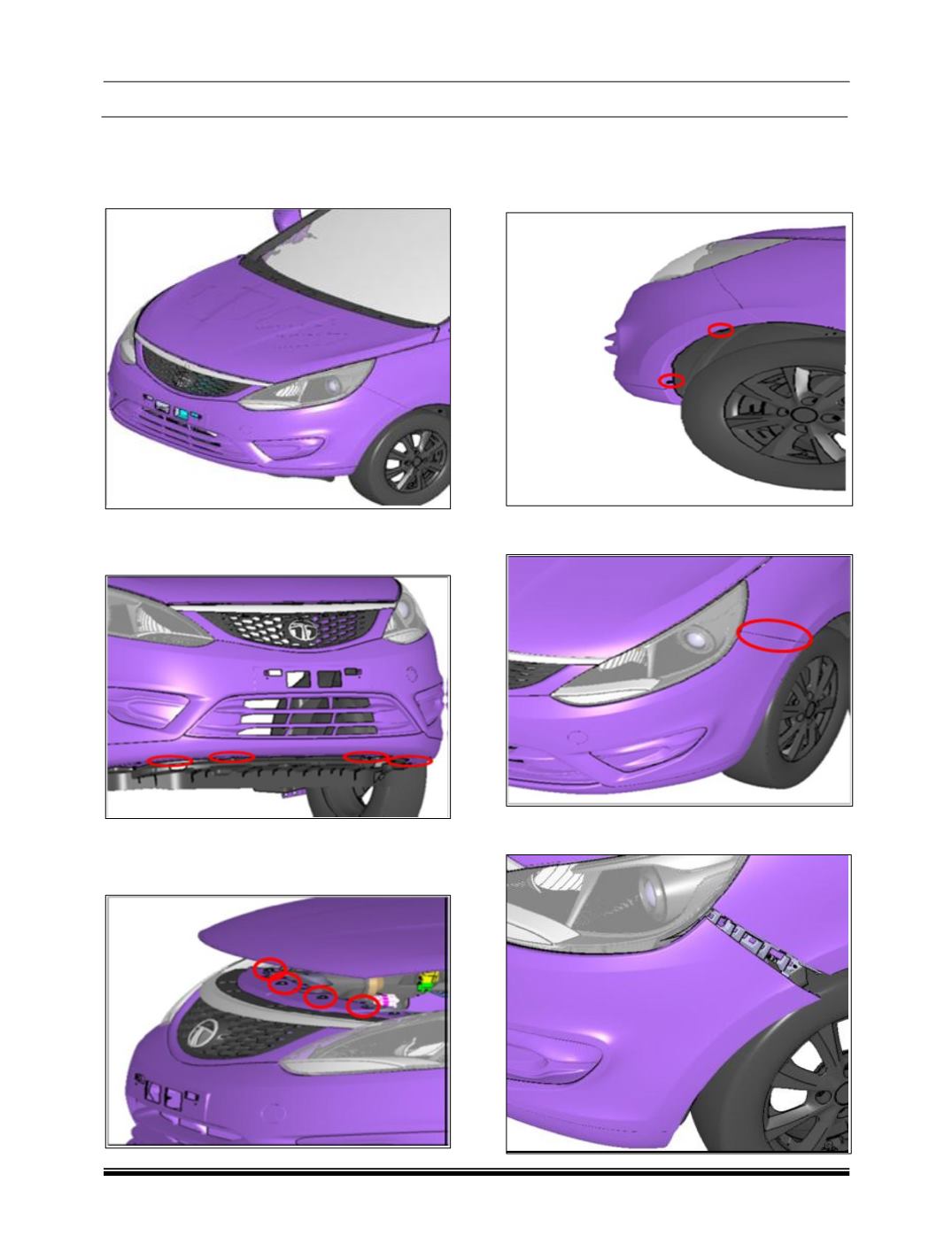

1. Front Bumper :
Removal :
1. Park the car on two post & lifting it up to the
height convenient for operator.
2. Removing bottom four mountings of bumper,
out of which two end mountings are common
with splash guard & front wheel arch liner.
3. Lower the car from the two post lift.
4. Remove the top four mountings by opening
the hood.
5. Remove the front wheel arch liner mountings
with front bumper.
6. Remove the front bumper direct mounting
with fender.
7. Remove the front bumper from side bracket
by pulling.
