Nexon Service Manual

TRANSAXLE TA6300

ASSEMBLY OF TOP COVER:

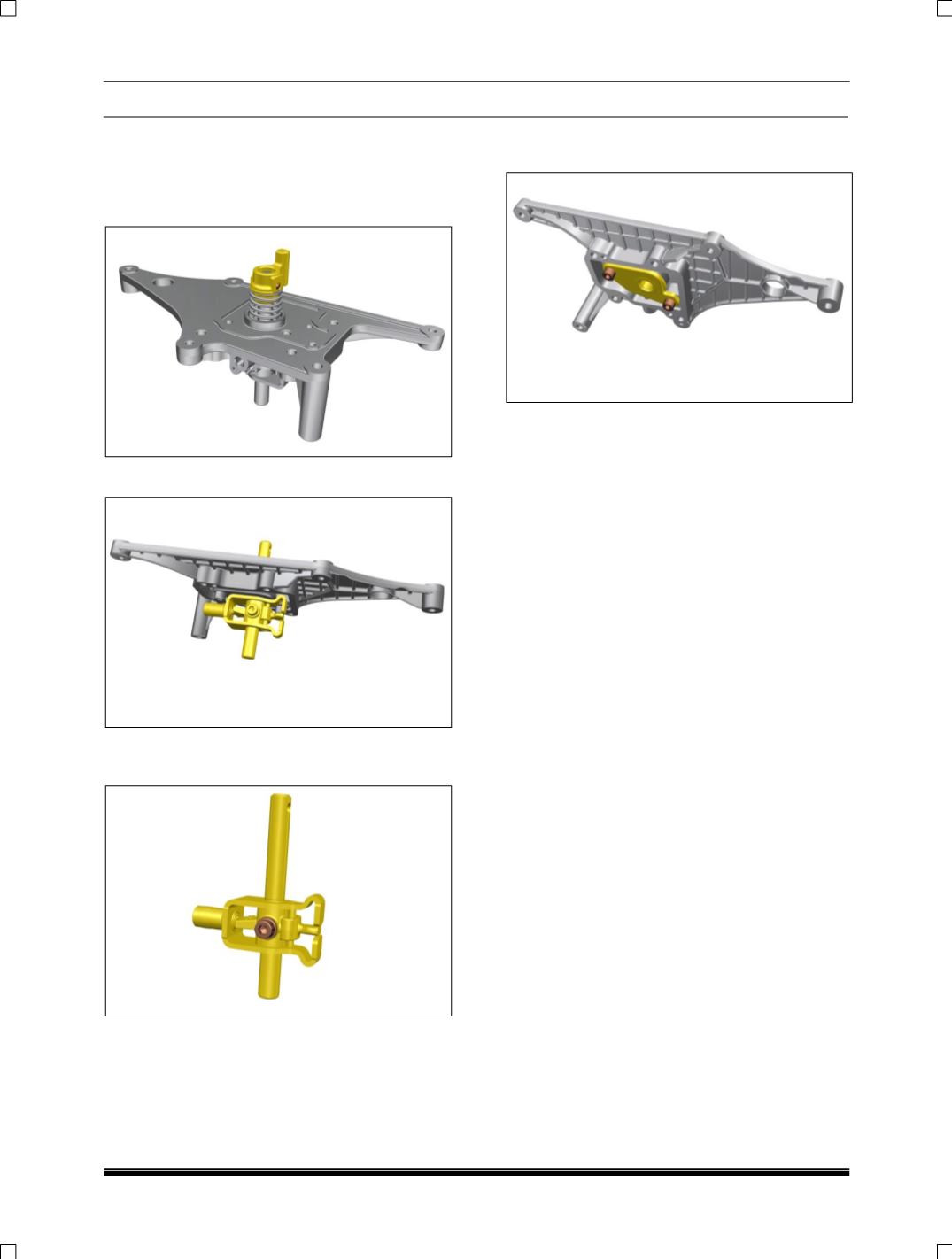

DISMANTLING:

1. Loosen Spiral pin & take out Interface

shown below

2. Take out selector shifter shaft Assy

3. Loosen cross pin Bolt of Selector shifter shaft

to remove interlock & shift finger Assy.

4. Remove Cap screw M8X20 & take out spring

seat sub Assy.

ASSEMBLY TOP COVER:

Follow the Reverse Procedure as given above.

NOTE:

Fixture required for spring seat assembly.
