Nexon Service Manual

CLUTCH AMT

CLUTCH PRESSURE PLATE

PETROL

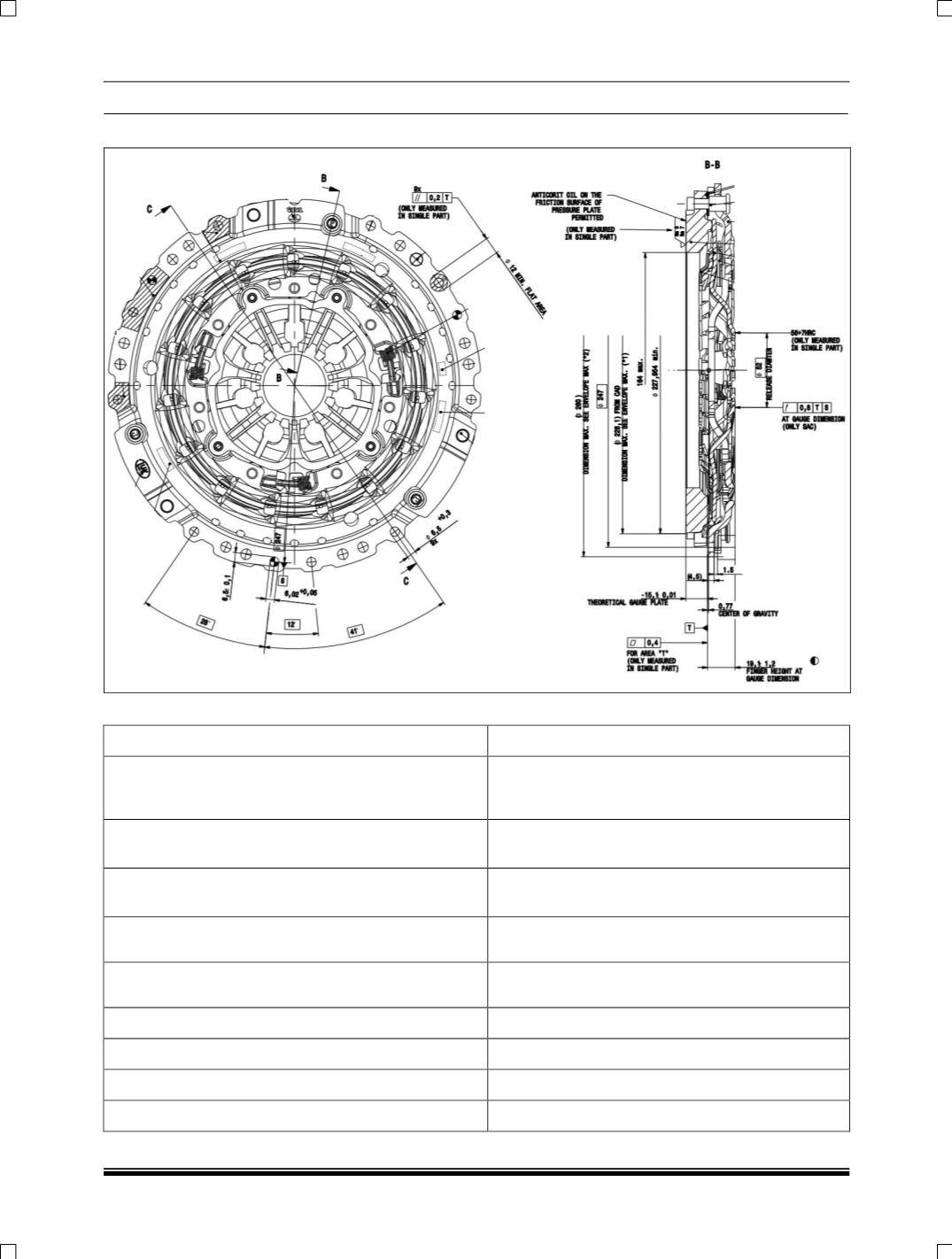

1. Max finger height of Pressure plate from clutch

mounting face

19.1 ± 1.2 mm

2. Max permissible imbalance of clutch cover

assembly.

Max.200 gmm

3. Max. Permissible face runout of release bearing

contact surface of diaphragm.

0.8 mm

4. Clamp load (Minimum on unloading curve)

7200 N

5. Max. release load (New gauge plate)

1380 ± 190 N

6. Release travel

7.5 + 1 mm

7. Max. Wear travel

6.14 mm

8. Min. Pressure plate lift for release travel of 8 mm

1.4 mm

9. Weight of Clutch cover assembly

4.43 kg
