TRANSAXLE TA6300
54

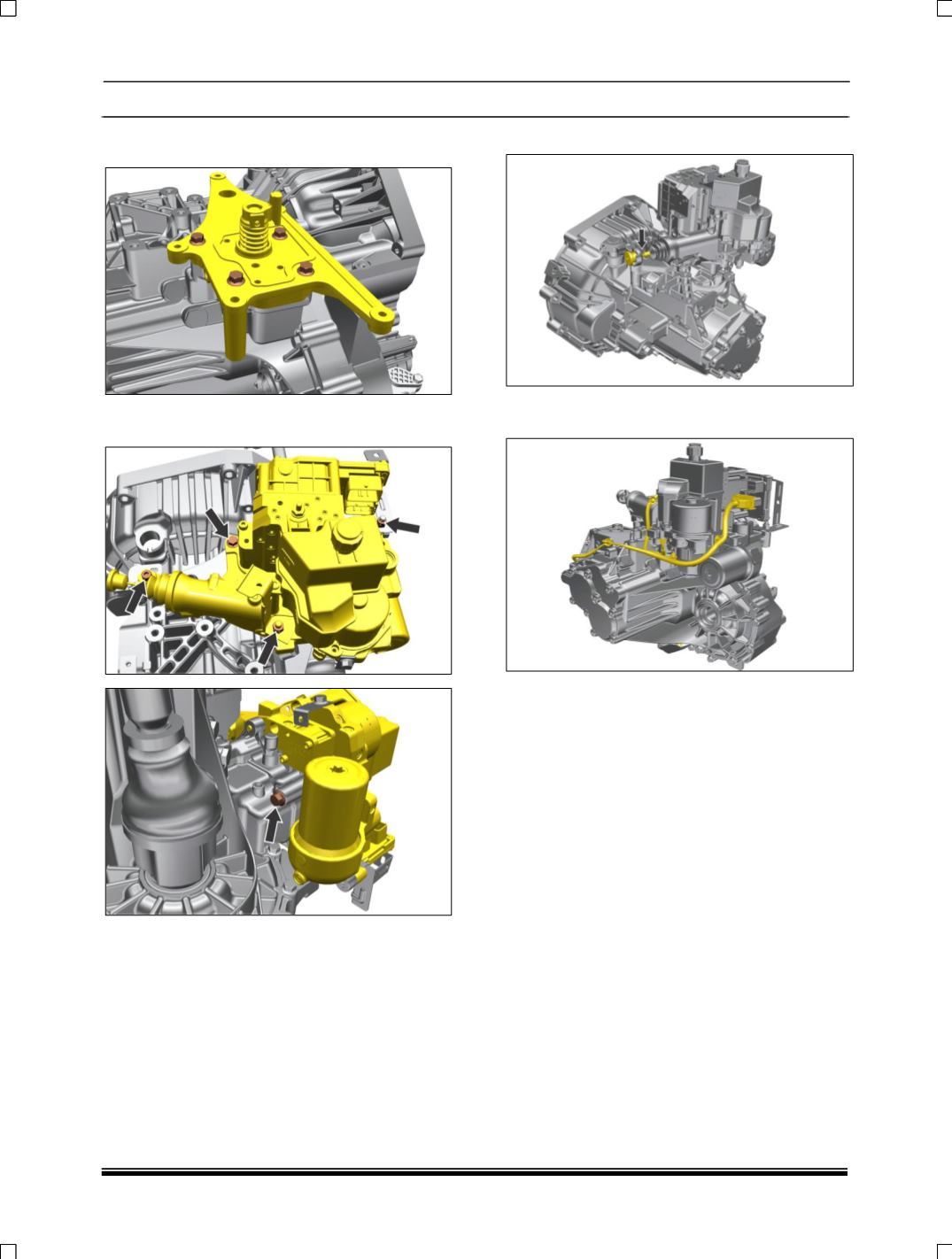

18. Assemble AMT top cover assembly with
spring interface Finger.
19. Lastly Assemble AMT Kit on Transaxle by
fixing all mountings.
20. Assemble clutch interface as shown
21. Connect all electrical connection from AMT
Kit.
22. Fix the C-mount bracket.
23.
Fix the B-mount bracket.
24. Fix filler plugs with new washers.
25. Fix the C-mount bracket on the gear box front
housing.
26. Fix the B-mount bracket in the correct
orientation.
