406 / 1265
1.5L REVOTORQ ENGINE
151

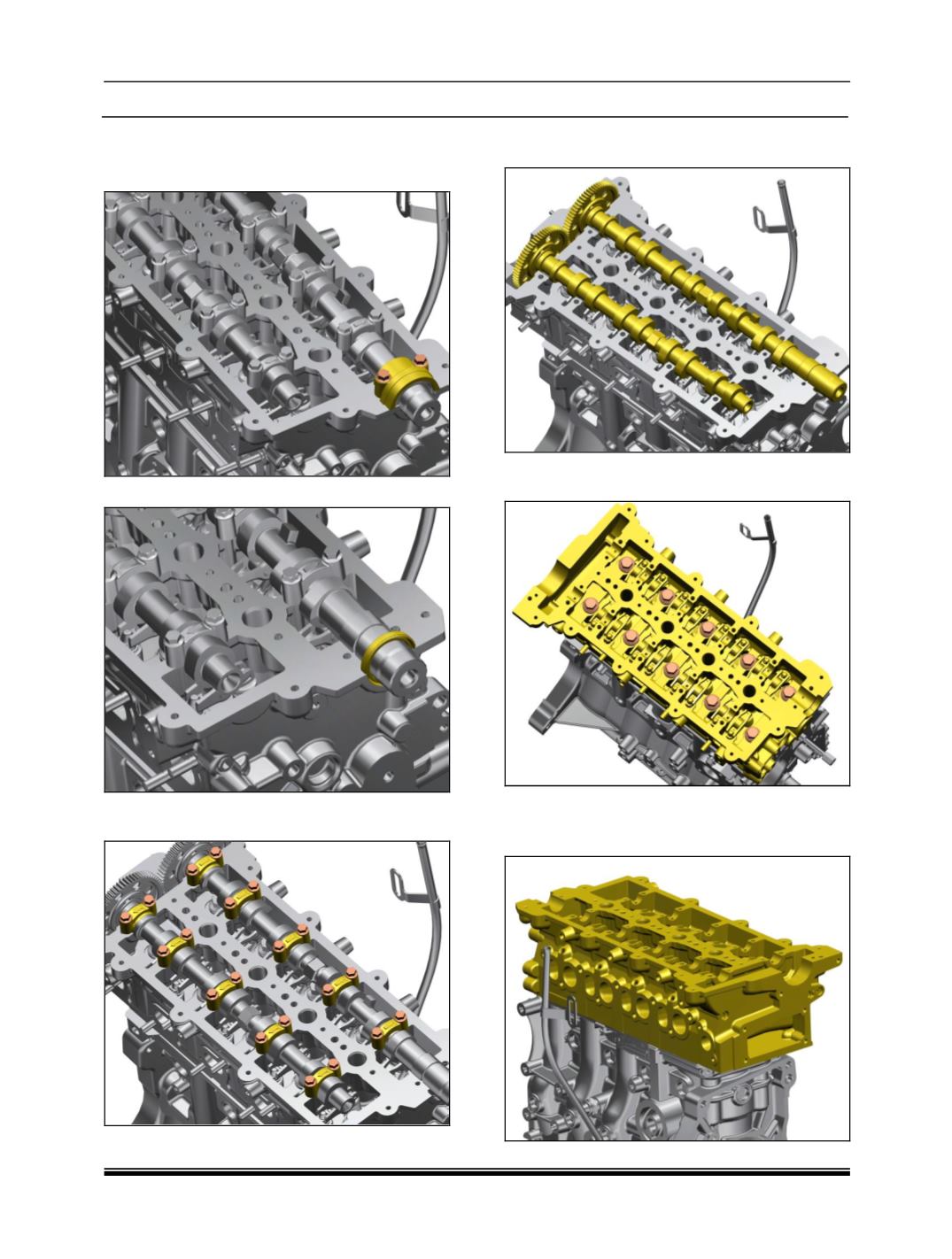

viii. REMOVAL OF CYLINDER HEAD
1. Remove the camshaft bearing cap on the
front end.
2. Remove the oil seal on the shaft.
3. Remove the thrust and inner bearing cap of
the intake and exhaust camshaft.
4. Remove the intake and exhaust camshaft
along with its gear.
5. Loosen and remove the mounting bolts of
cylinder head cover in specified sequence.
6.
Slightly
lift
the cylinder head to clear locating
hollow dowel in crank case, and place it on a
table
.
