1.5L REVOTORQ ENGINE
150

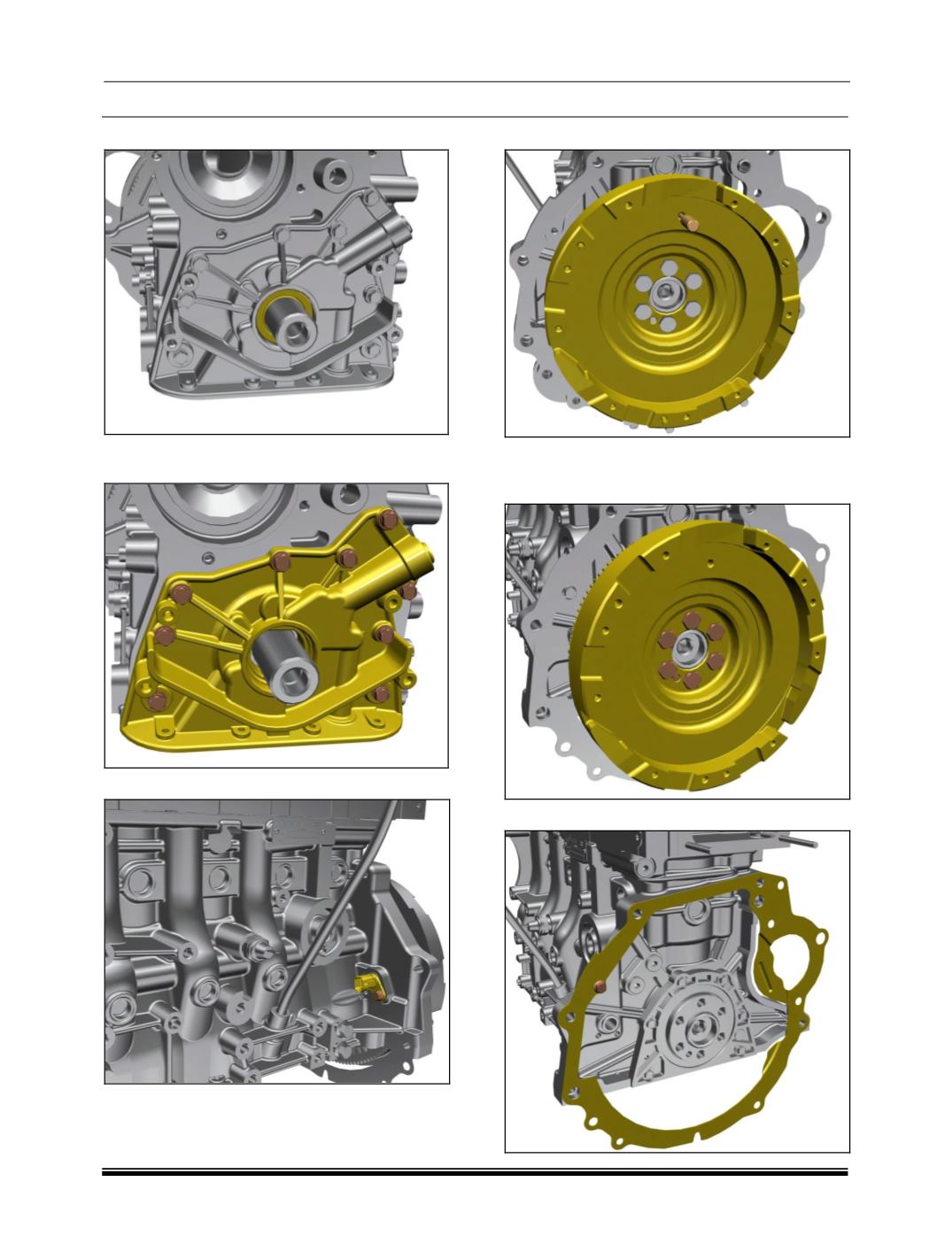

24. Remove the crankshaft oil seal.
25. Loosen and remove the mounting bolts and
take out the oil pump assembly.
26. Remove the crank position sensor.
27. Remove flywheel locking pin.
28. Remove the flywheel mounting bolts and
locator pin and take out the flywheel
assembly.
29. Remove the back cover.
