1.5L REVOTORQ ENGINE
130

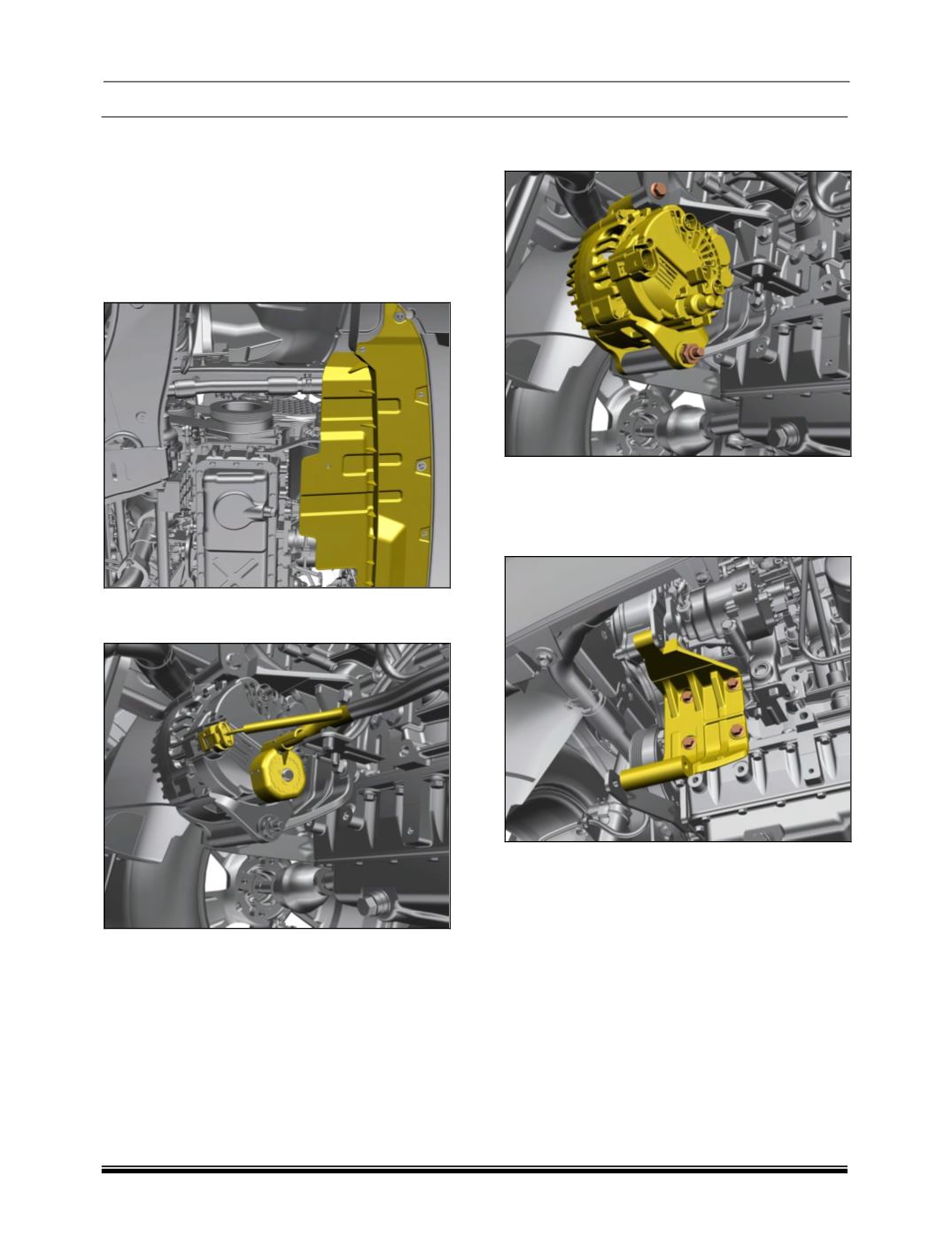

I. ALTERNATOR MOTOR REMOVAL AND
REFITMENT
REMOVAL
1. Remove the alternator belt.
(For removal
procedures refer compressor and alternator
belt replacement).
2. Remove the splash guard.
(For removal
procedures refer body section).
3. Remove the electrical connections of the
alternator.
4. Loosen and remove the mounting bolts on the
alternator support brackets.
5. Take out the alternator.
6. Loosen and remove the mounting bolts of the
alternator support bracket and take out the
bracket.
REFITMENT
Follow the reverse order of removal procedure.
