1.2L REVOTRON ENGINE

128

1.8 ENGINE OVERHAULING : (ON OVERHAUL

STAND)

A. ENGINE DISASSEMBLY

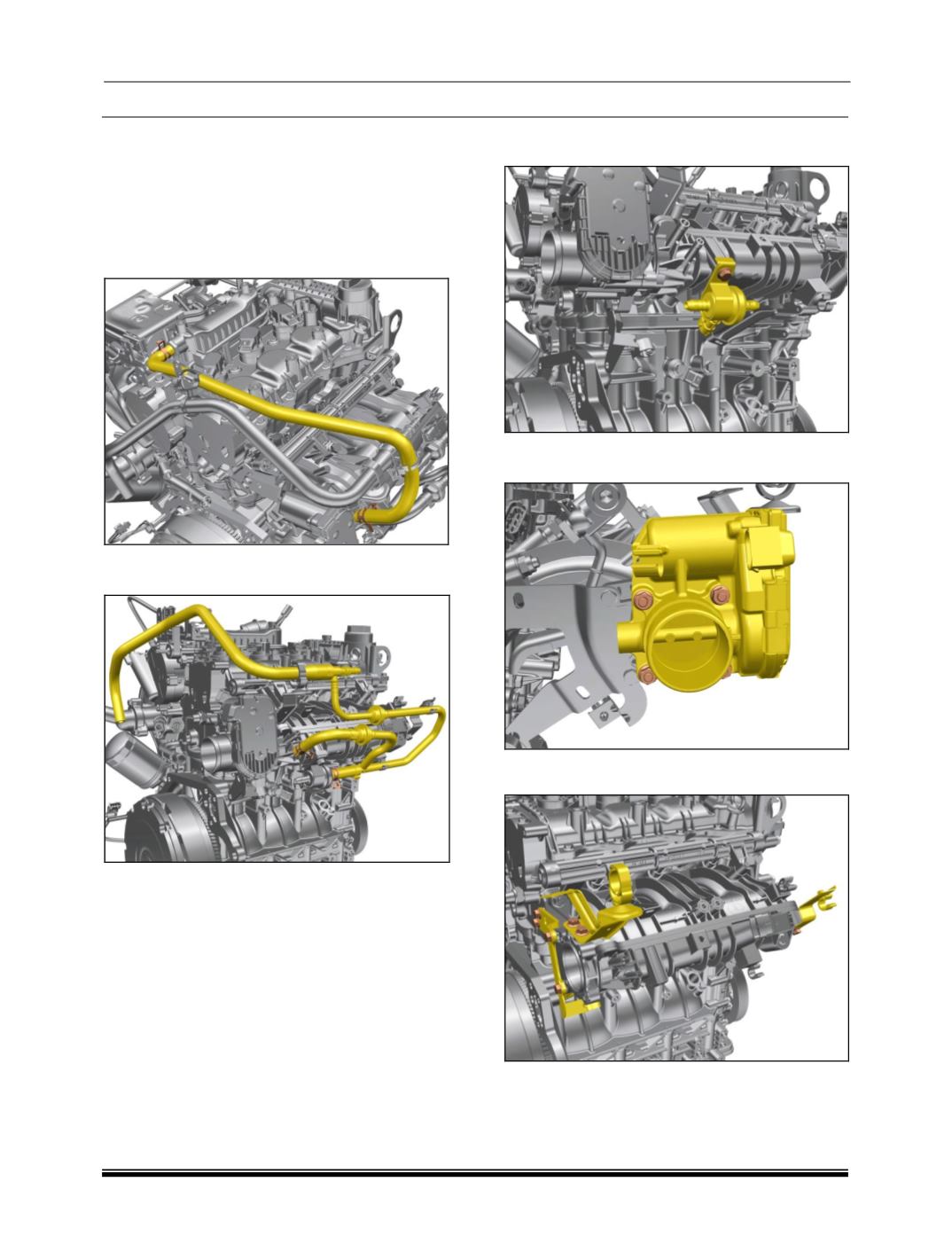

I. Removal of Intake Manifold

1. Keep the engine on bench suitably.

2. Remove the hose connecting Cylinder head

cover to Intake manifold.

3. Remove all the hoses between purge valve

and the intake manifold.

4. Remove the mounting bolt of the purge valve

and take it out.

5. Loosen and remove the mounting bolts and

remove the electronic throttle body.

6. Remove all the support brackets mounted on

the intake manifold.
