1.2L REVOTRON ENGINE
124

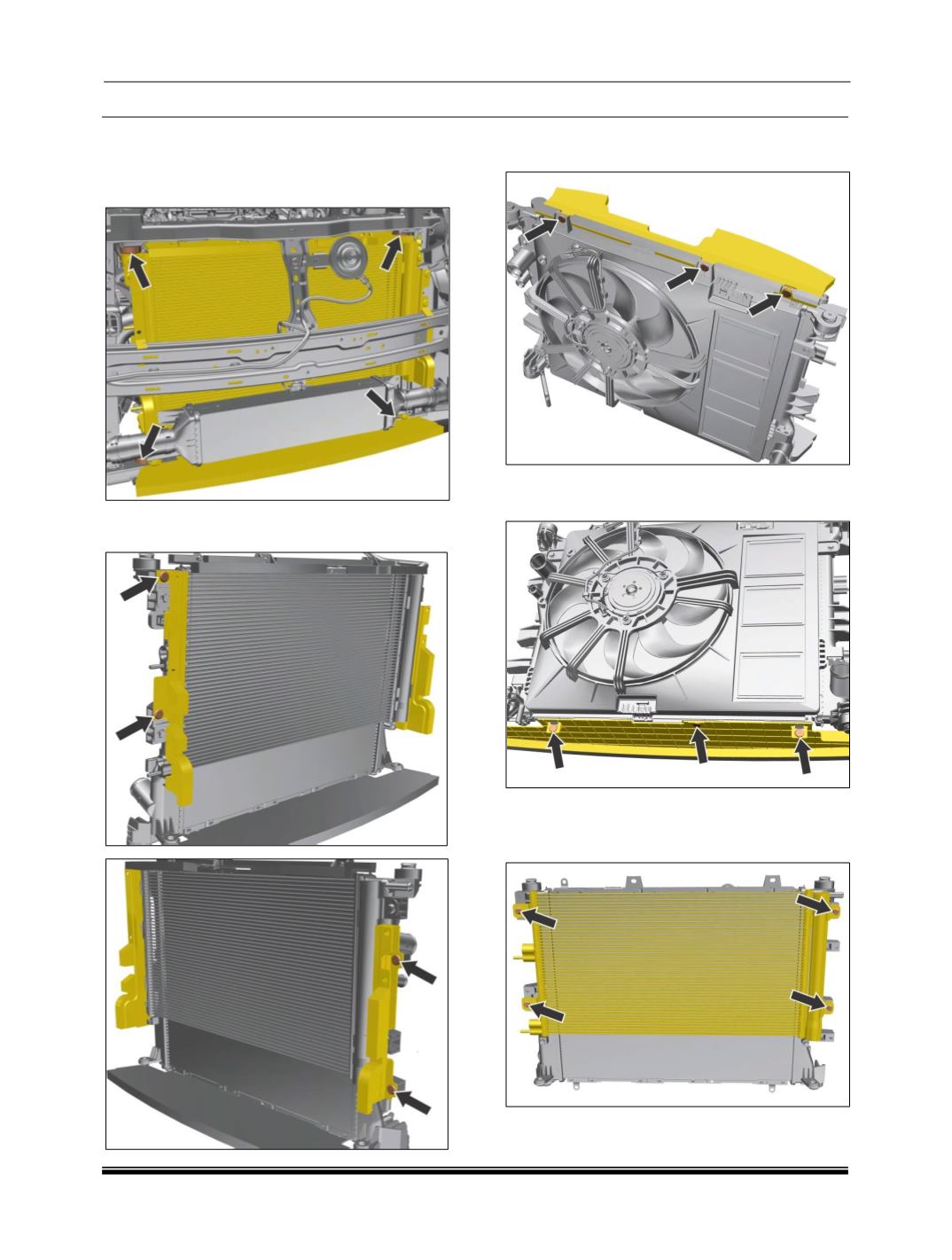

12.Tilt the radiator inwards and down the radiator
and condenser assembly from the grommet on
the top mounts, both LH and RH
simultaneously.
13.Pry out the sealing rivets and remove both the
LH and RH side condenser sealing.
14.Pry out the sealing rivets and remove top
radiator sealing.
15.Pry out the sealing rivets and remove bottom
radiator sealing.
16.After removing the radiator and condenser
assembly out, separate the condenser from
the radiator, by removing fasteners.
