FATC
21

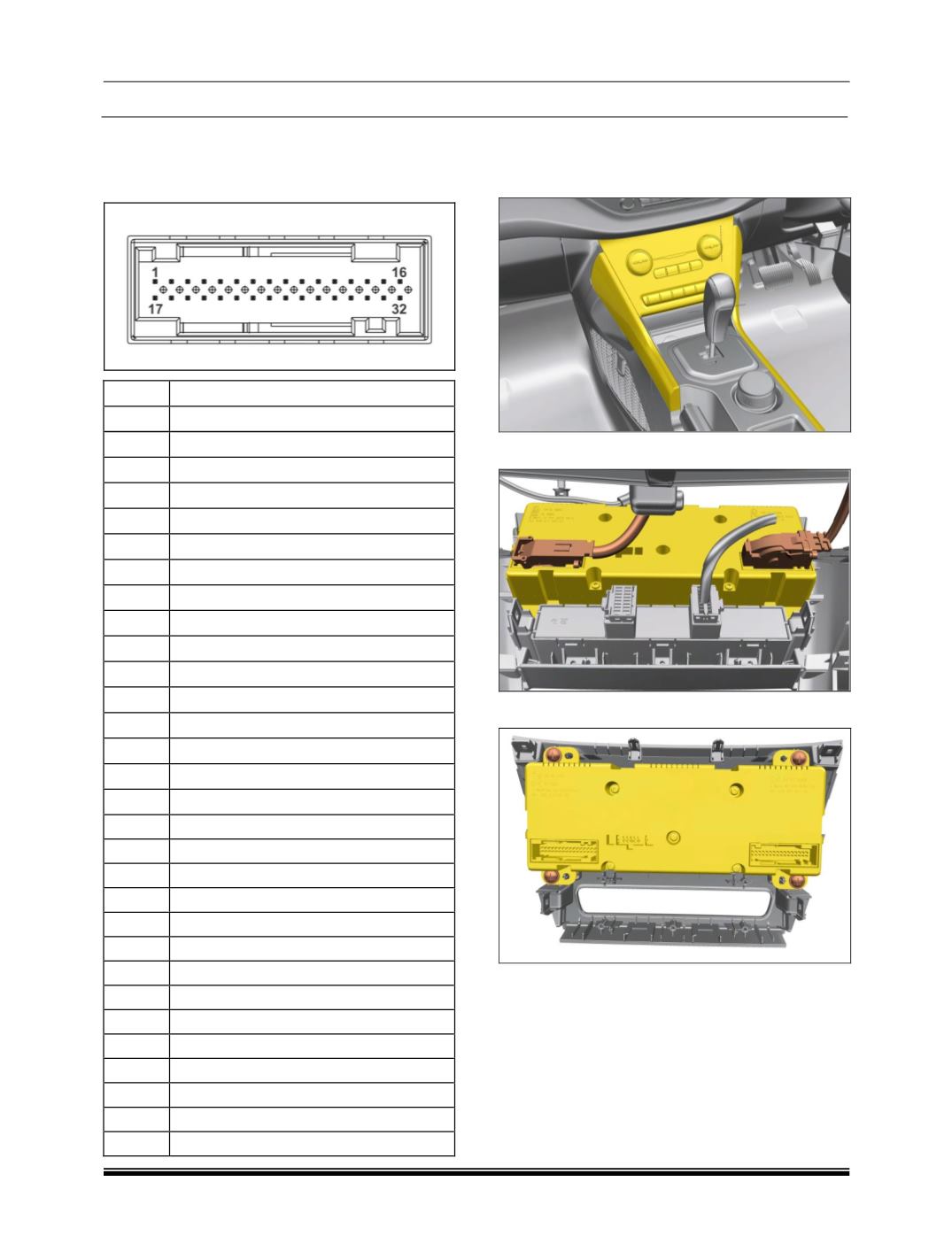

CONNECTOR C1
VEHICLE SIDE CONNECTOR (GREEN CON-
NECTOR) PINOUT DETAILS
PIN
DESCRIPTION
1, 2
Terminal 31 (Battery GND)
3
Not connected
4
Not connected
5
Not connected
6
Not connected
7
Not connected
8
Not connected
9
Not Connected
10
Not Connected
11
Terminal 15 (ignition)
12
Not Connected
13
Not Connected
14
Not Connected
15, 16 Power terminal 30 battery
17
Not Connected
18
Not connected
19
Solar Sensor GND
20
Not connected
21
Not connected
22
CAN L
23
Not connected
24
CAN H
25
Solar Sensor Signal
26
Not connected
27
Not connected
28
Not connected
29
Not connected
30
Not connected
31
Not connected
32
Not connected
REMOVAL
1. Remove the top console panel along with control
panel.
2. Disconnect the electrical connection of panel.
3. Remove four mounting screws of control panel.
4. Take out the control panel.
REFITMENT
For fitment, follow reverse procedure of removal.
