FATC
27

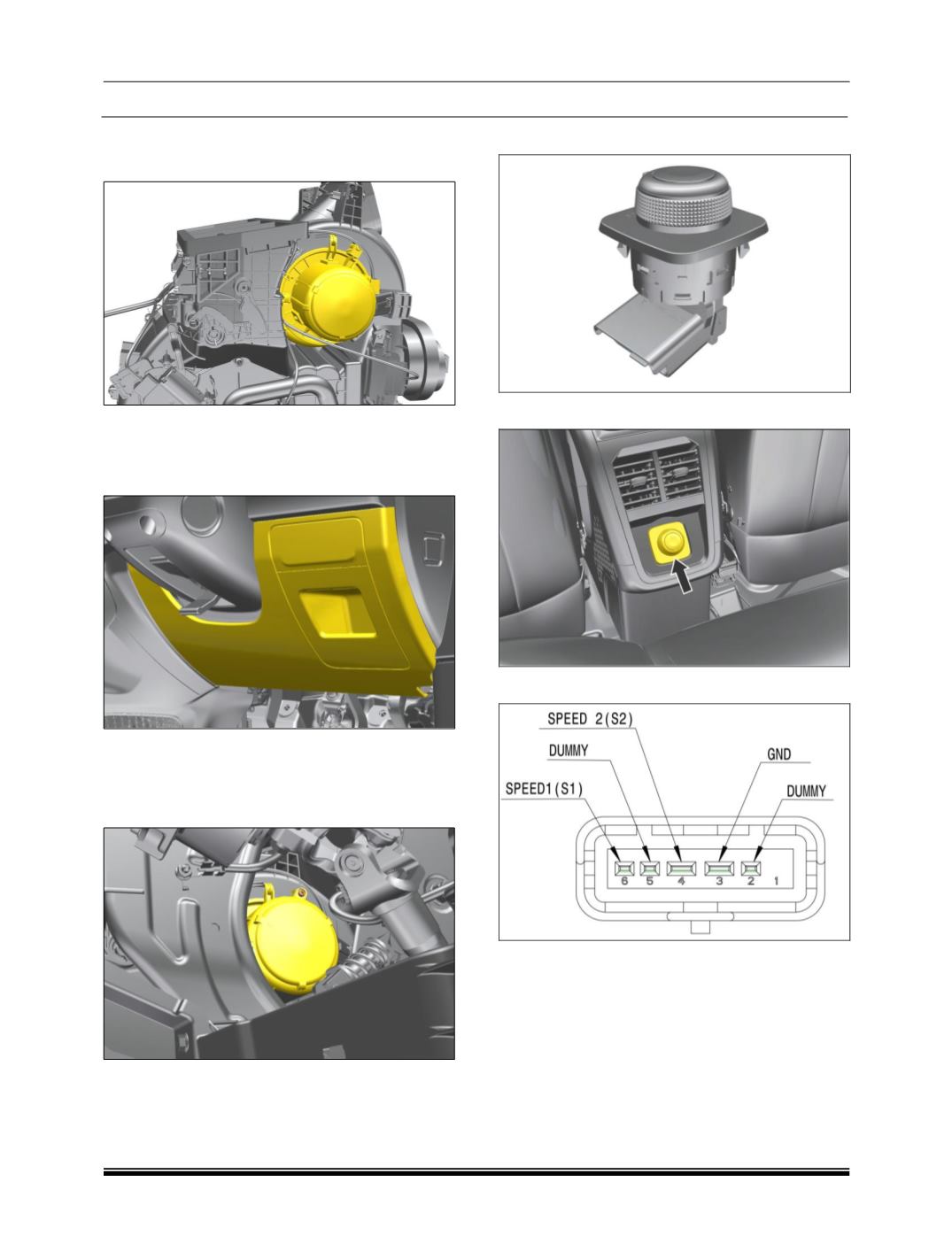

1.11. FRONT HVAC BLOWER ASSY
LOCATION
It is located on the right top side of the HVAC unit.
REMOVAL
1. Remove steering column cover.
2. Access the blower from driver side. Remove the
electrical connection from the module.
3. Loosen and remove mounting screw of blower
motor.
4. Rotate blower assembly in anticlockwise direc-
tion & take out the same.
REFITMENT
For fitment, follow reverse procedure of removal.
1.12. REAR BLOWER SWITCH
LOCATION:
PIN OUT DETAILS
