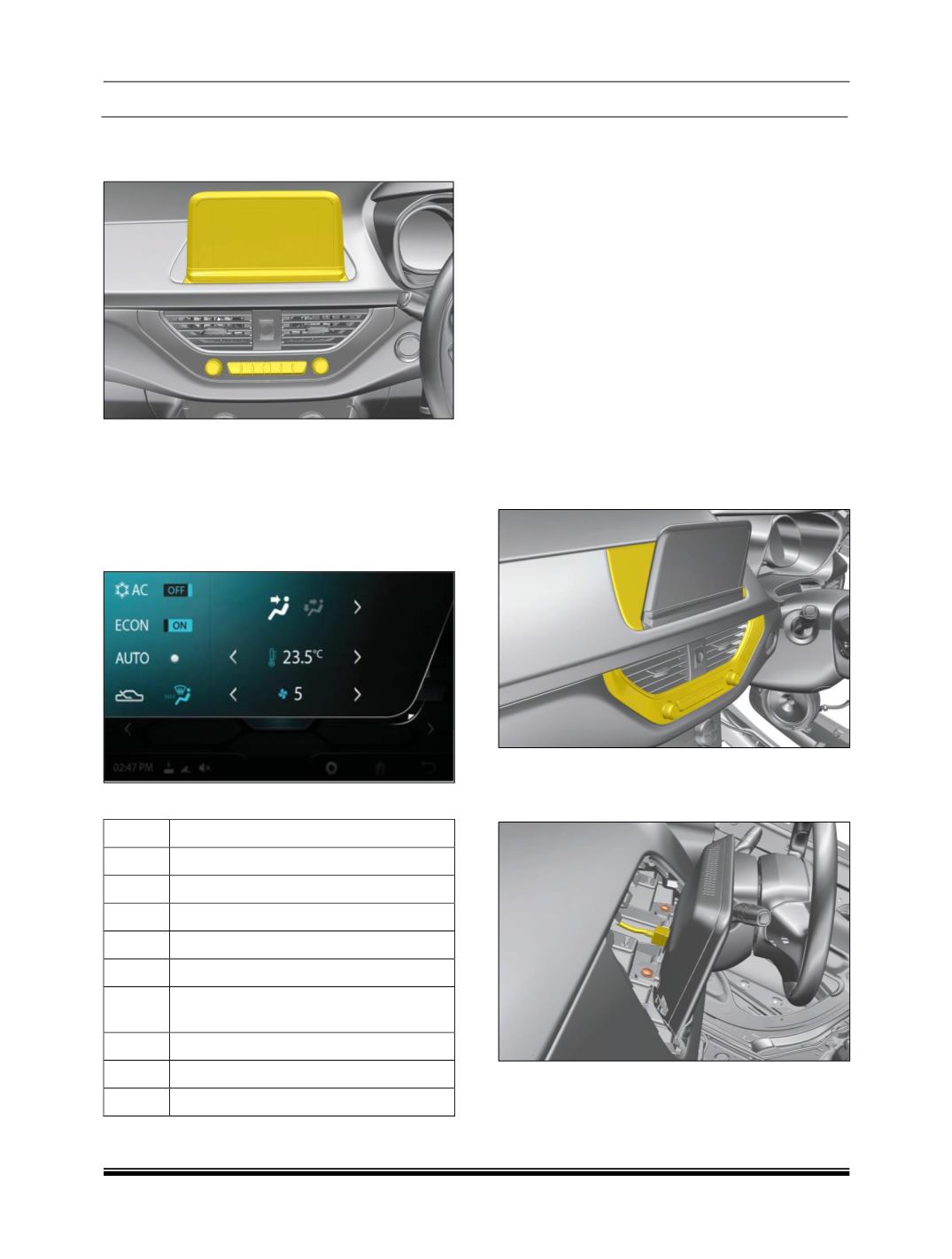

1.8. HMI CLIMATE CONTRL DISPLAY
It is located on the dashboard.
HMI CLIMATE CONTRL STATUS DISPLAY
The Climate Control feature is vehicle dependent.
The infotainment system displays the following cli-
mate control related information in its display screen
bottom bar.
Display Screen with Climate Control Details in
Footer
Display Screen Climate Information
1.
AC ON/OFF display and control
2.
ECON ON/OFF display and control
3.
Blower speed display and control
4.
MAX-Defrost display and control
5.
Air distribution display and control
6.
AUTO ON display
7.
Air inlet(Fresh \ recirculation) display
and control
8.
Fresh-AIR mode
9.
Temperature display and control
10.
CLIMATE SETTINGS CHANGE POPUP
The system displays message when you change any
of the climate settings like temperature / blower us-
ing the FATC controls. The system displays popup
message when you:
Switch ON/OFF the AC
Increase/decrease the blower speed
Increase/decrease the temperature
Shift between air re-circulation options (Recircu-
late or Fresh)
Change the air distribution mode
Set Maximum Defrost
Set Economy mode
Set AUTO mode
REMOVAL
1. Carefully pry out cover assembly and the air vent
assembly.
2. Remove the 2 mounting screw and Disconnect
all the electrical connections to take out the dis-
play.
REFITMENT
For fitment, follow reverse procedure of removal.
