ELECTRICAL
217

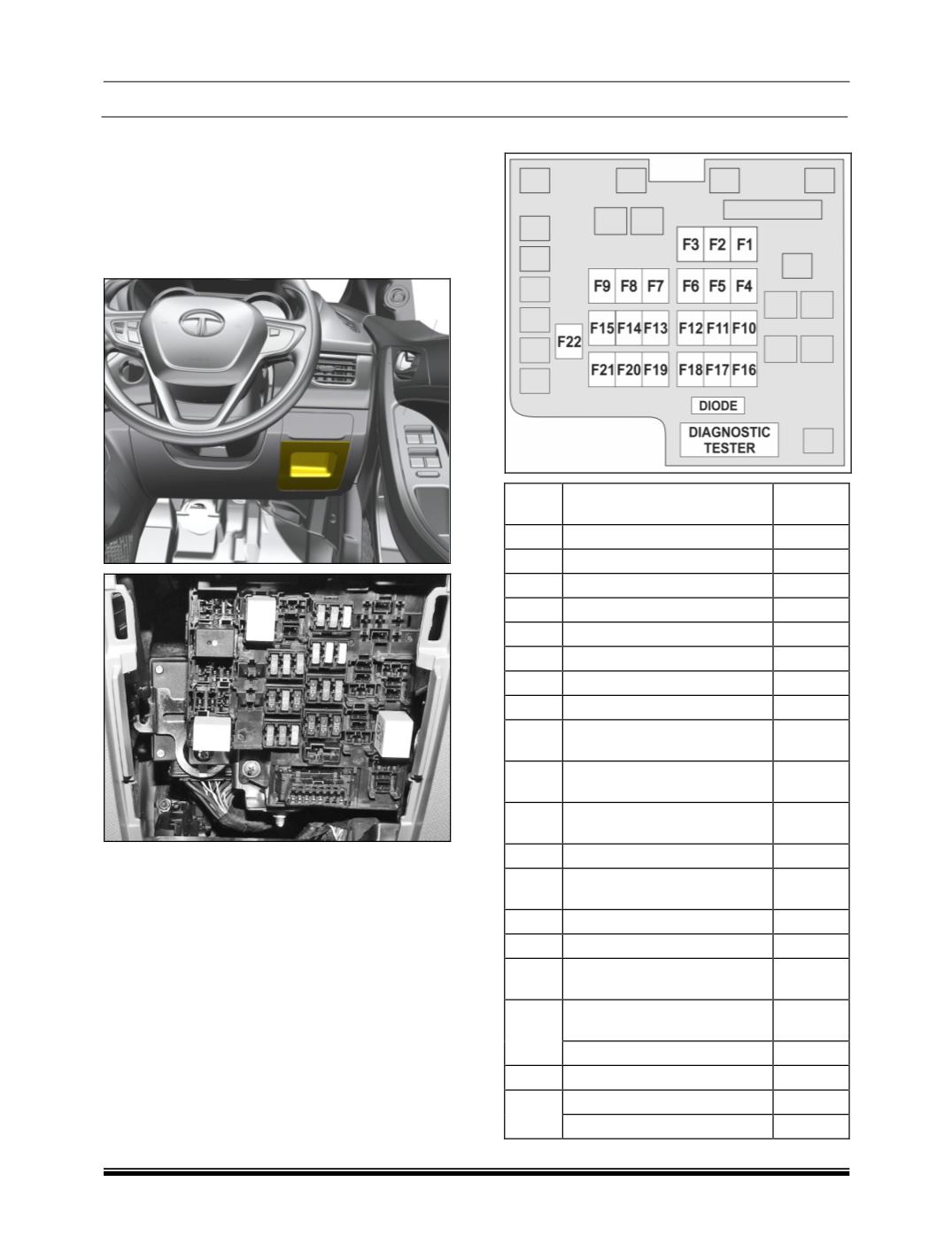

1.29.3 CABIN FUSE AND RELAY BOX
This fuse box is part of main wiring harness. For
details refer the below fuse box sticker fitted on
steering column lower cover. For other pin out
details of fuse box refer the power distribution II
circuit schematics.
LOCATION
CABIN FUSE AND RELAY BOX DETAILS
FUSE
NO.
FUNCTION
FUSE
RATING
1
HL RLYCL /BCM
5A/20A
2
ACC BATTERY
15A
3
TRANSIT / INFO
15A
4
BCM
20A
5
BCM
20A
6
BLOWER
30A
7
INT LAMP/MIR ADJ MTR
5A/5A
8
POWER SKT FRT
15A
9
INFOTAIN
MENT/FLASHER
5A/15A
10
RESTRAINTS CONTROL
MODULE
5A
11
IMMOBILIZER /
EPAS/CLUSTER
5A
12
IGNITION
10A
13
IGN SW / PEPS/REALY
COIL
10A
14
CDL
15A
15
CLUSTER /OBD
10A
16
TAILGATE REALESE
MOTOR
10A
17
PARK LAMP LH /
POSITION LAMP LH
5A
REAR BLOWER
10A
18
HVAC
10A
19
HEATED REAR SCREEN
25A
IGN-ACC
5A
