ELECTRICAL
215

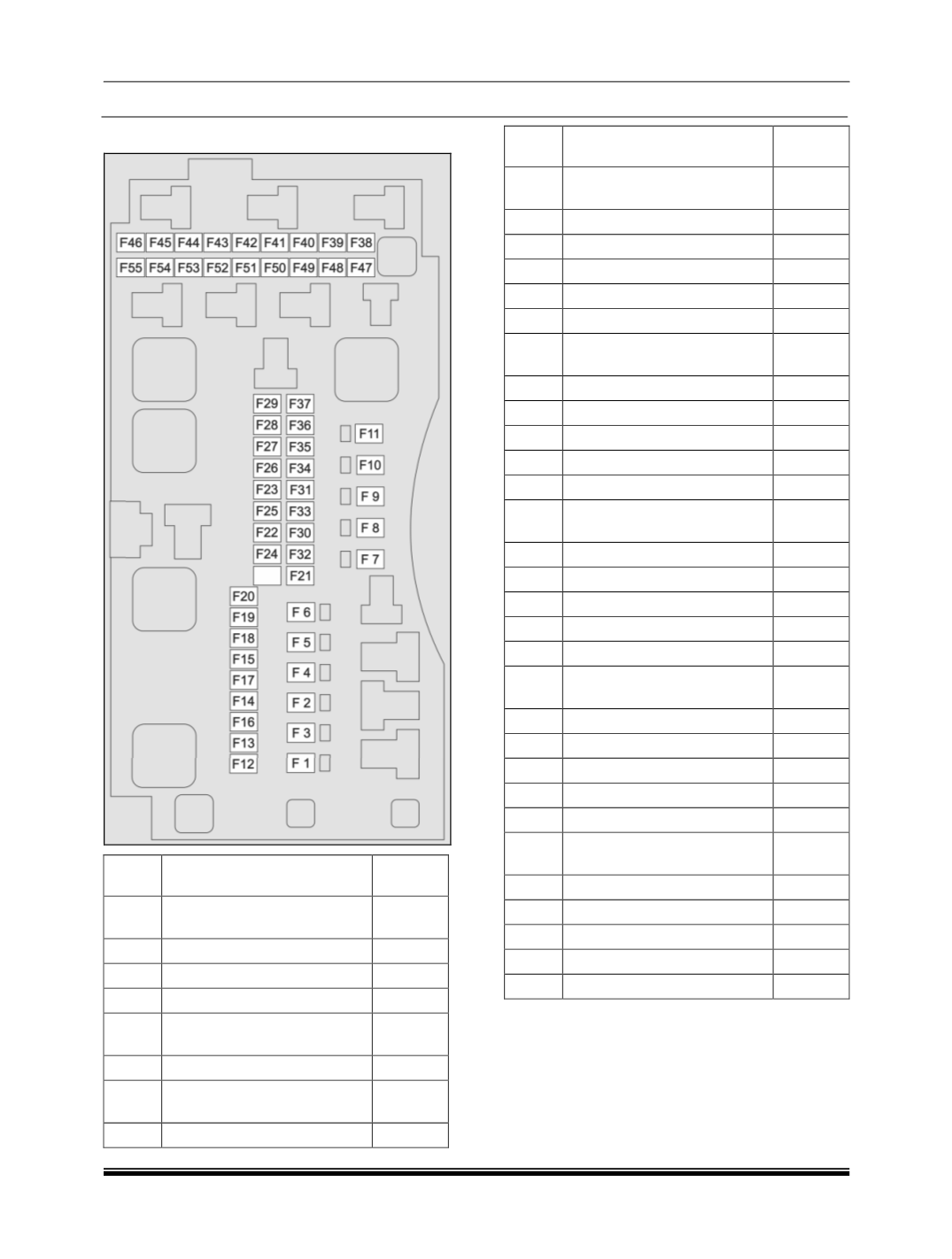

PETROL VEHICLE
FUSE
NO.
FUNCTION
FUSE
RATING
1
SUPPLY CABIN FUSE
BOX- 1
60 A
2
ABS ECU
40 A
3
SPARE
-
4
COOLING FAN
40 A
5
STARTER MOTOR SOL
RELAY CONTACT
30 A
6
SPARE
-
7
SUPPLY CABIN FUSE
BOX-2
60 A
8
HEAD LAMP
40 A
FUSE
NO.
FUNCTION
FUSE
RATING
9
TRANS. CONTROL UNIT
(AMT)
30 A
10
IGNITION LOAD
40 A
11
EPAS
60 A
12
COMPRESSOR
10 A
13
MAIN RELAY
30 A
14
ABS ECU
25 A
15
TRANS. CONTROL UNIT
(AMT)
10 A
16
HORN
15 A
17
SPARE
-
18
MAIN RELAY
5 A
19
BRAKE SWITCH
10 A
20
FUEL PUMP
15 A
21
FRONT WASH MOTOR
(NON BCM)
10 A
22
STARTER FEEDBACK
5 A
23
SPARE
-
24
SPARE
-
25
HEAD LAMP LOW BEAM
15 A
26
SPARE
-
27
TRANS. CONTROL UNIT
(AMT)
10 A
28
ECU SENSOR
15 A
29
IGNITION DYL
15 A
38
EMS ECU
15 A
39
ECU RELAY CONTROL
5 A
40
INJECTORS
15 A
41
REVERSE AND BRAKE
LAMP
10 A
42
ABC ECU
5 A
43
FRONT WIPER MOTOR
20 A
44
SPARE
-
45
REAR WIPER MOTOR
10 A
46
HEAD LAMP HIGH BEAM
15 A
