SUSPENSION
37

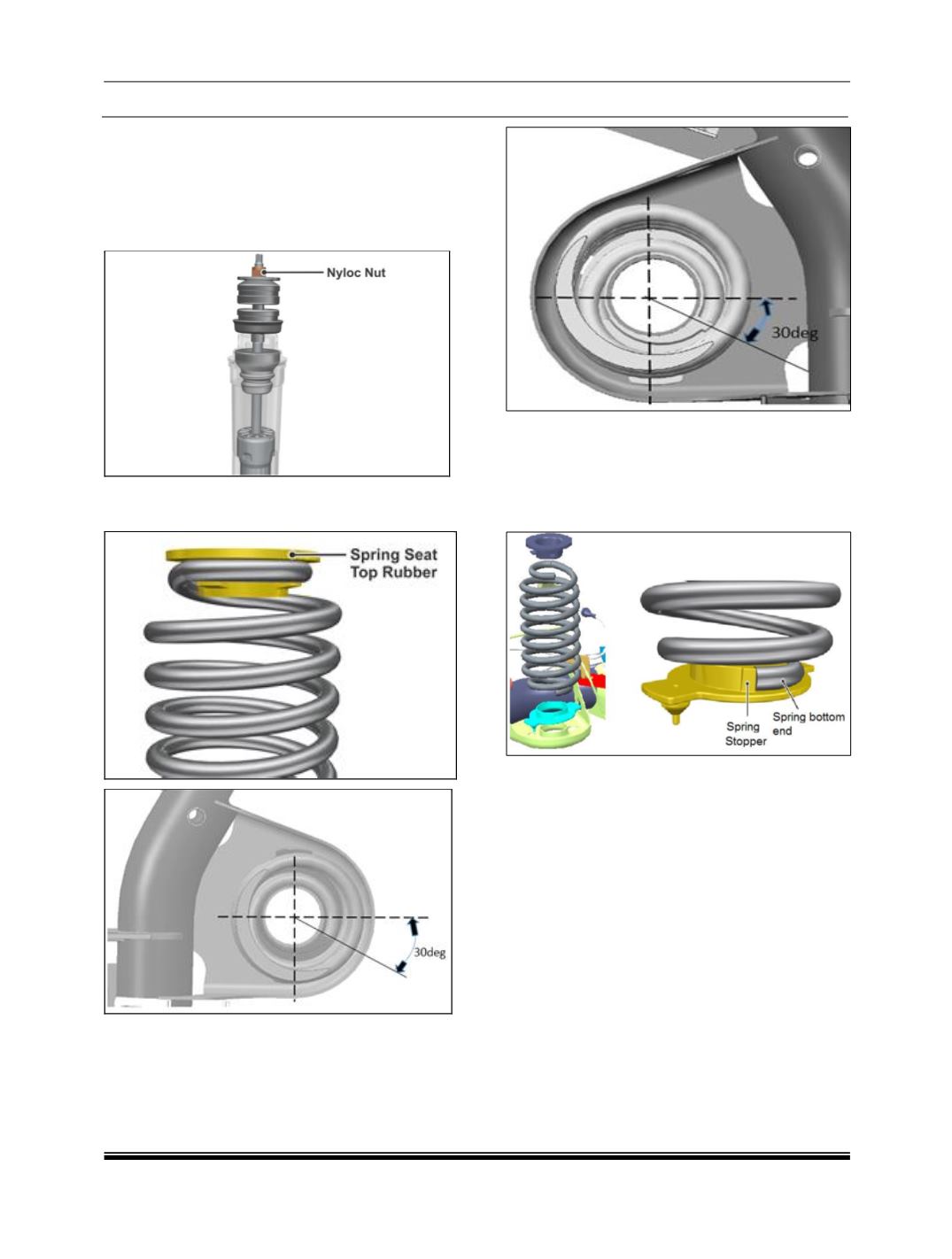

INSTALLATION OF REAR SHOCK ABSORBER
AND COIL SPRINGS:
1.
Refit the shock absorber top mounting
fasteners with new nylon nut in the luggage
compartment and tighten to 2.5 to 3 kgm
Torque as shown in Figure.
2.
Fit and rotate the top rubber with the coil
spring.
LH Spring Orientation
RH Spring Orientation
3.
Position the spring bottom rubber pad is to
fixed to twist beam in two holes. Spring to be
oriented such that end rest and against the
stopper of bottom rubber pad as shown in fig
4.
Raise the torsion beam using hydraulic jack so
that the coil spring gets compressed and shock
absorber sits exactly over torsion beam
properly.
5.
Refit and Torque Rear Shock Absorber Bottom
Fastener.( as per torque table).
6.
Refit the rear wheels.
7.
Remove the Car from 2 Post Lift.
NOTE:
While fitment of damper the bottom bus to be
tighten in ECIE condition. Jacking on the
beam not to be done to avoid failure
.
