SUSPENSION
40

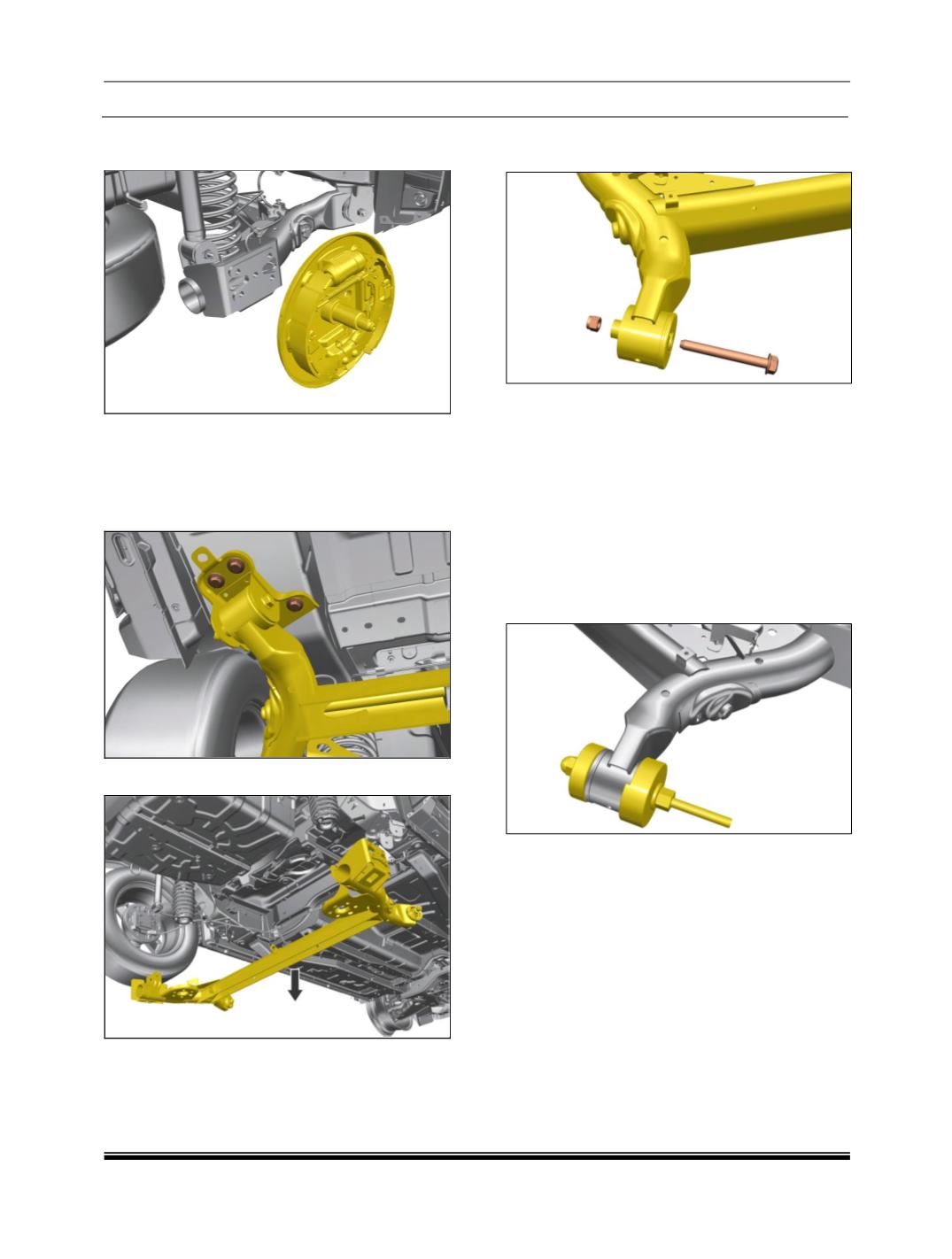

17.Remove the stub axle and back plate along
with brake shoe assembly as shown in figure
18. Remove the shock absorber lower bolts and
coil springs. (Refer removal and refitment of
shock absorber and coil springs)
19. Loosen and remove the twist beam bracket
bolts on both sides.
20. Lower the twist beam along with bracket
21. Remove the twist beam cross bolt on both
sides
22. Twist beam bush removal
23.Remove twist beam front pivot bush using
special tools as shown in below arrangement.
NOTE:
Apply soap water to the bush and the bore of
twist beam assembly before installation.
Tightening of RTB on body to be done in
ECIE condition. No jacking to be done on
beam, avoid oil based lubricant while pushing
the bushes in eye
