CLUTCH
23
1.10. ON VEHICLE PROCEDURES

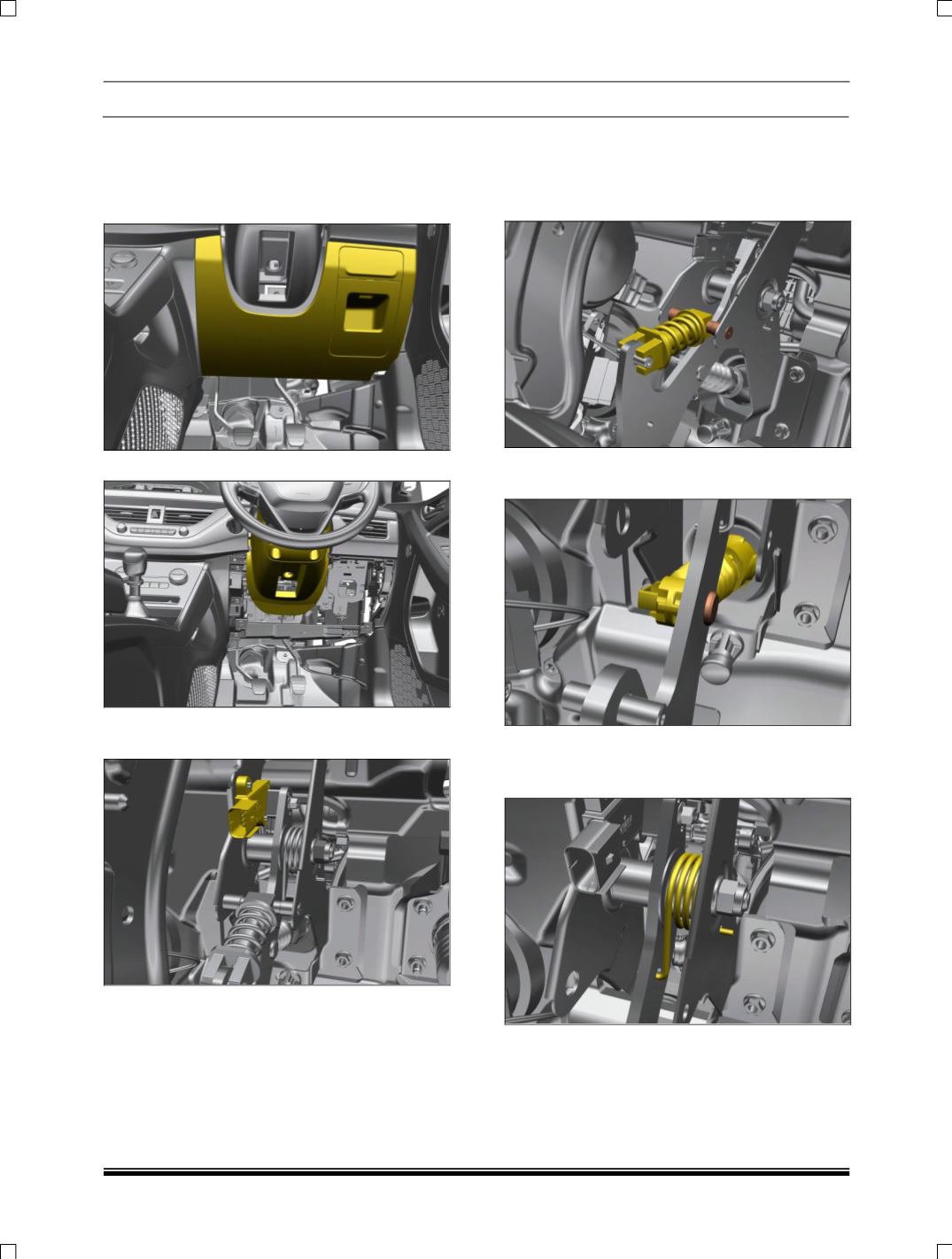

A. CLUTCH PEDAL ASSEMBLY REMOVAL
1. Disconnect battery connection.
2. Pry out the lower cover of steering column.
3. Pry out the nacelle lower of steering column.
4. Disconnect the electrical connector from the
clutch switch
.
5. Remove the circlip from the pedal pin,
pressing the clutch pedal downwards remove
the stay rod from the pedal pin and then
remove the stay rod with assistance spring
and pivot pin from the mounting bracket.
6. Free the clutch pedal from the clutch master
cylinder by removing the clevis pin.
7. Remove the clutch pedal return spring which
is mounted on clutch return spring mounting
bracket.
