1.8. PRECAUTION FOR SAC ASSEMBLY

Use only paired Clutch Disc & SAC set for

assembly

Don´t mix the disc from SAC-Set 1 to other SAC-

Sets 2, 3, 4... The Release load is adjusted with

same set of SAC and disc.

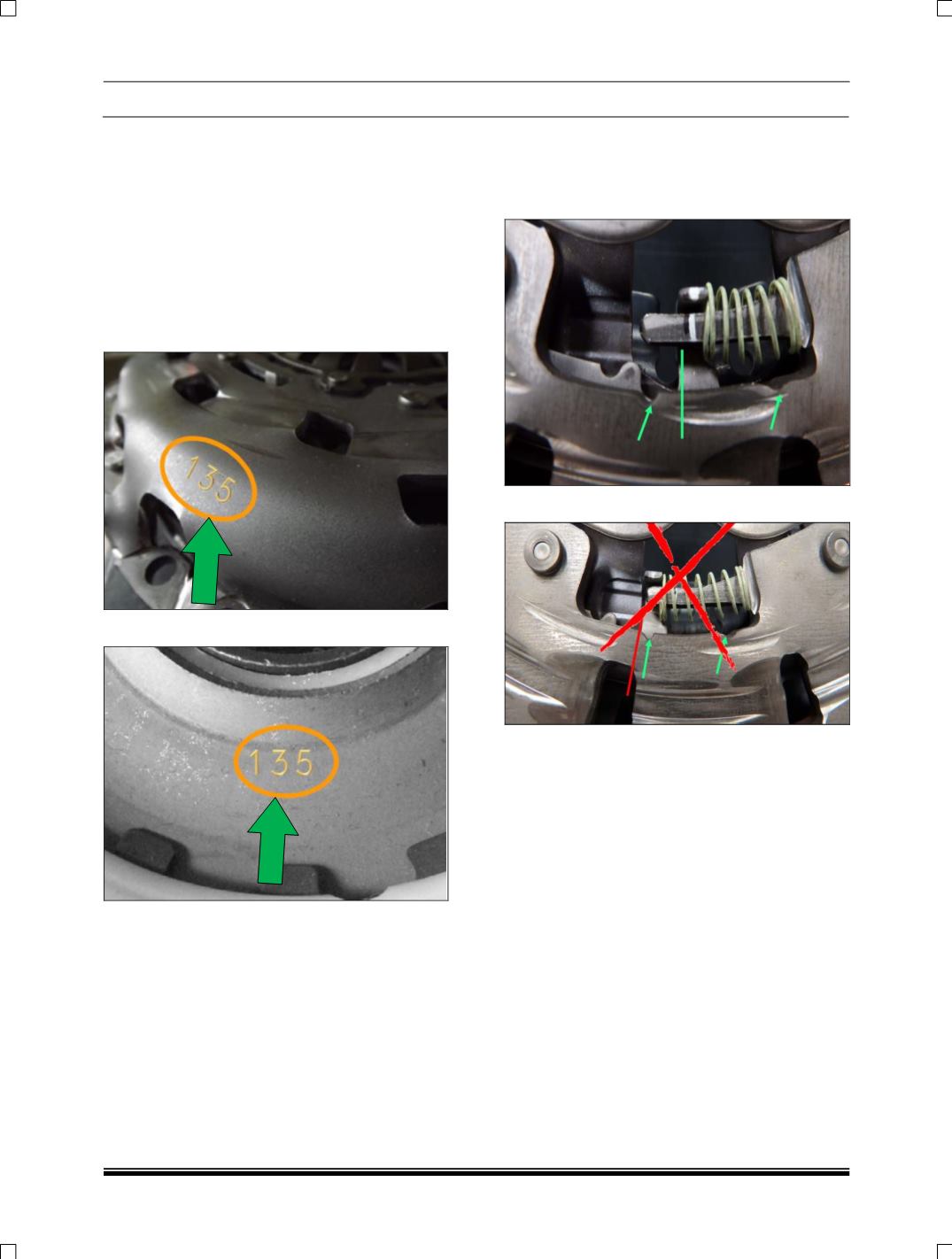

You can recognize that a disc was measured with

a SAC because of the same serial number.

Ensure same serial no. marking on SAC cover

assembly & Clutch Disc.

SAC Cover Assembly

Clutch Disc Assembly

SAC should be assembled with counter load

only (i.e. without releasing the clutch)

Don’t engage or disengage a clutch cover without

having a disc under the pressure plate. SAC will

adjust irregularly and produces unpredictable.

Release load and Clamp load and therefore

Pedal load is also unpredictable.

Adjusting ring is inside cover notches, SAC is ok.

Adjusting ring is outside cover notches, SAC is not

Don't release SAC without a clutch disc under

pressure plate & unless the SAC is properly

screwed to flywheel.

Replacement of the clutch should be as a set

only.

Do not replace individual clutch disc or SAC.

In field strictly follow the procedure as mentioned in

service manual

Ensure marking position on adjusting ring, if

unfortunately a SAC adjust during mounting

process, change the whole set.

Ensure that the clutch facing material is not

contaminated with oil or grease as this shall result

in clutch slipping.
