TA65 Star AMT
32

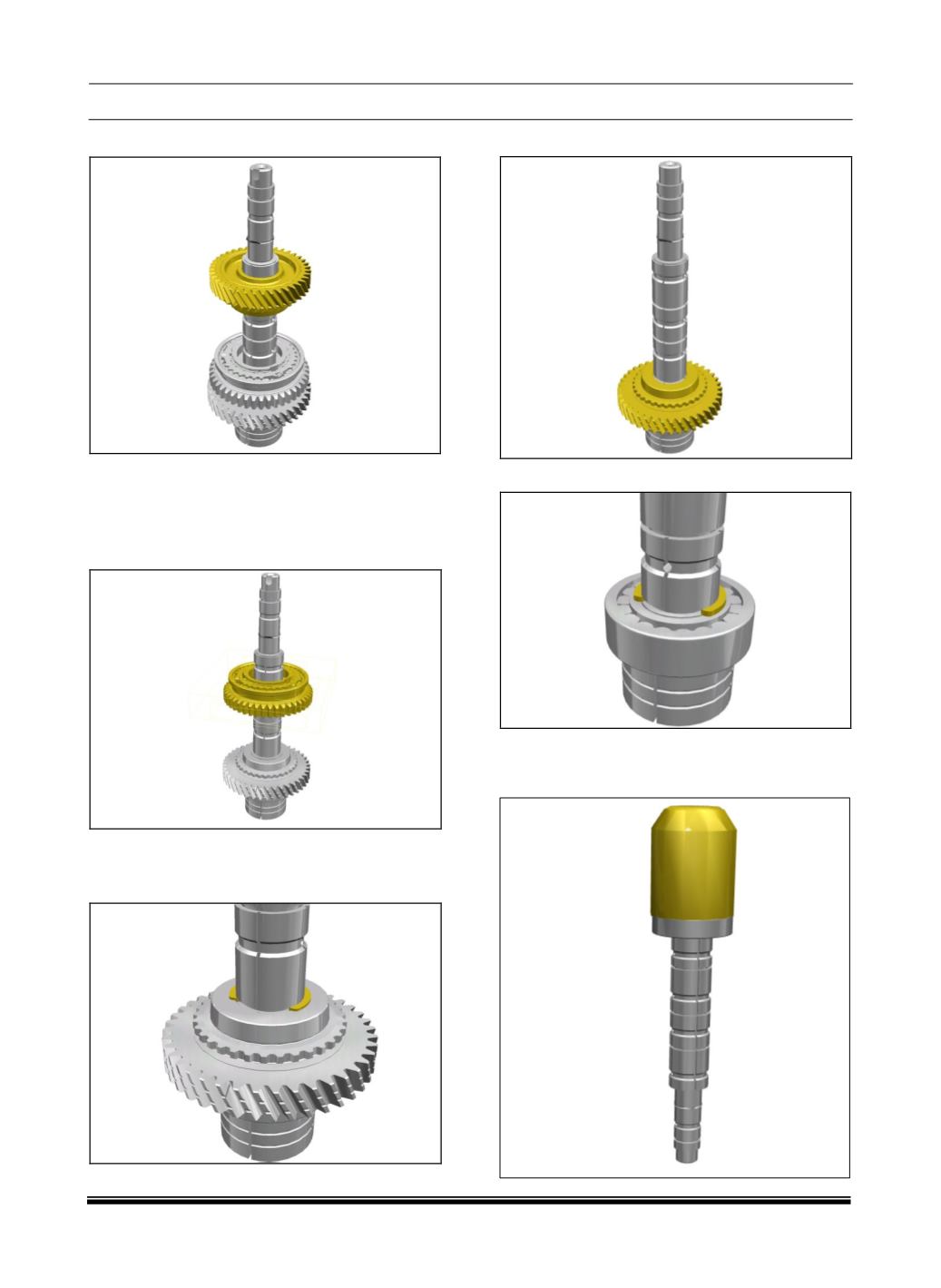

8. Remove 2nd gear from lay shaft.
9. Remove the double synchro pack that sits on
the second gear
9a. Remove the engaging gear pack (1/2 speed)
CAREFULLY so that springs, carriers and
balls do not jump out.
9b. Remove the double synchro pack that sits, on
the first gear.
10. Pry out circlip from lay shaft.
11. Remove 1
st
gear lay shaft.
12. Pry out circlip from lay shaft.
13. Place the lay shaft upside down and remove
cylindrical roller bearing using drift Part No.
2702 5890 2605.
