ELECTRICAL
74

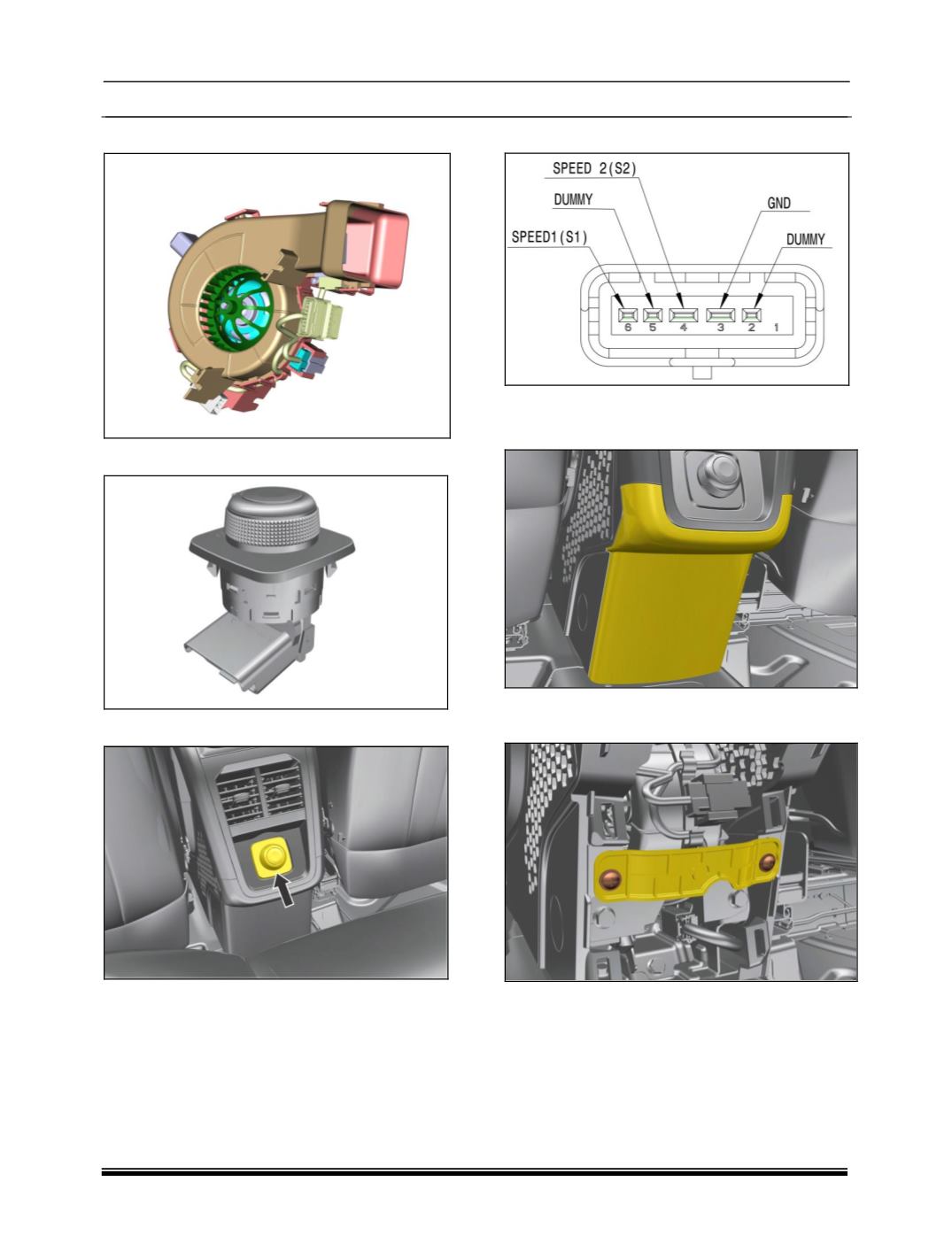

A. REAR BLOWER (IF APPLICABLE)
REAR BLOWER SWITCH
LOCATION
PIN OUT DETAILS
REMOVAL REAR BLOWER ASSY
1. Pull out the rear console cover assembly.
2. Remove tap screw & take out console Frame
Bridge.
|
|
