ELECTRICAL
70

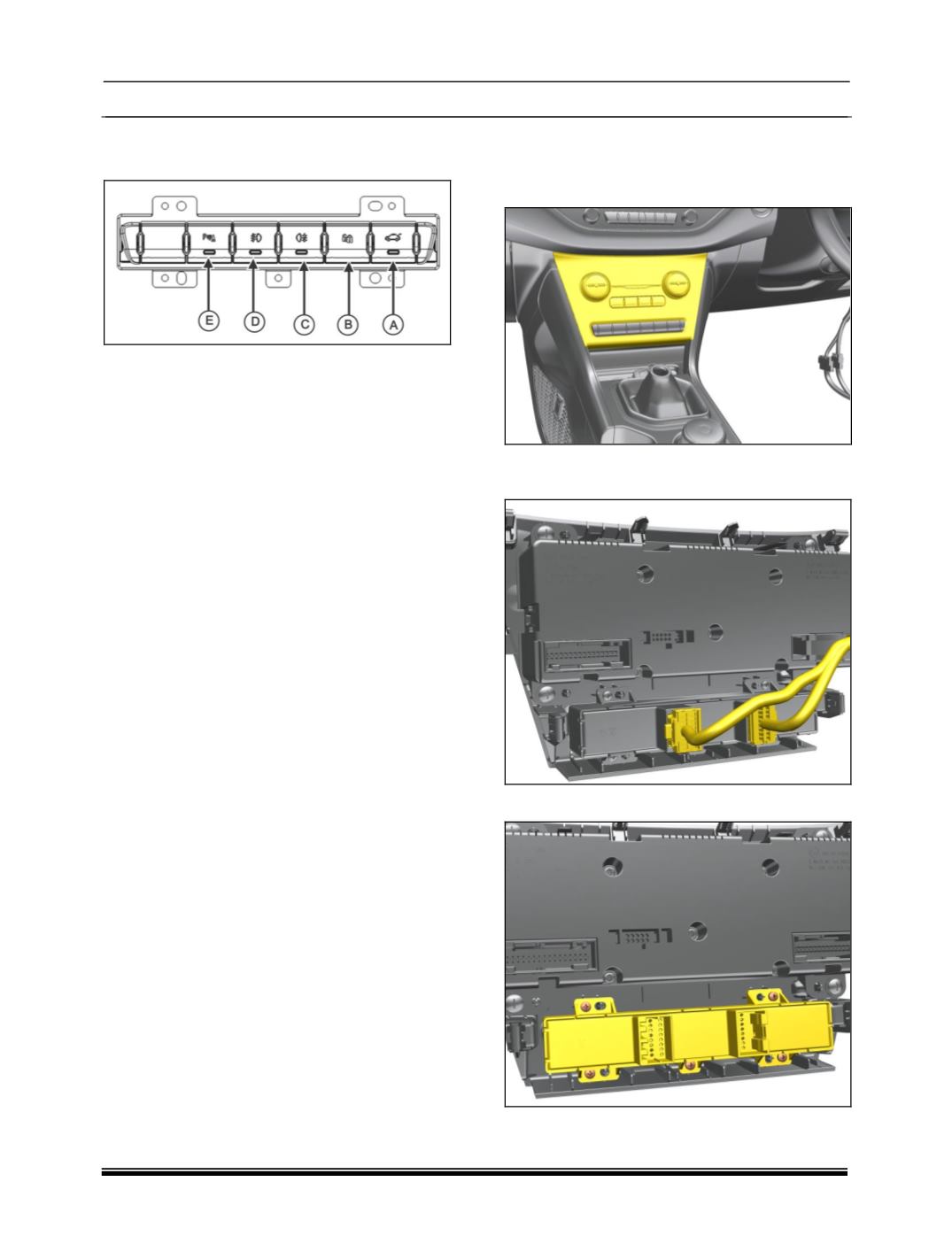

1.15 FASCIA SWITCHES
PDC, fog lamps are located on fascia switches
A. TAILGATE SWITCH:
To open the tail gate, press the switch lo-cated on
fascia switch It can also be opened by using door
key. The lock is located on the tailgate.
For closing, pull the tail gate down and close
it with a slight swing.
B. DOOR LOCK-UNLOCK
The power door lock switch is a rocker switch that
allows you to lock and unlock your car doors with a
the simple touch of a button. Although older cars
used manual lock switches,.
C. REAR FOG LAMPS (IF FITTED):
Rear Fog Lamps are provided on rear bumper to
provide improve divisibility in adverse weather
conditions to avoid accidents when visibility is
poor.
The rear fog lamps can be switched ‘ON’ with
ignition and parking lamp ‘ON’ and can remain on
till the parking lamp is switched ‘OFF’.
D. FRONT FOG LAMPS (IF FITTED):
Front Fog Lamps are provided on front bumper to
provide improve divisibility in adverse weather
conditions to avoid accidents when visibility is
poor.
The front fog lamps can be switched ‘ON’ with
ignition and parking lamp ‘ON’ and can remain on
till the parking lamp is switched ‘OFF’.
E. PDC ( Park distance control )SWITCH
An acoustic warning signal lets you know how
close you are to the car or object behind you.
Ultrasound sensors integrated into the bumper at
the rear of your car measure the
distance
to the
nearest large object behind the vehicle. As you
reverse closer, the frequency of the warning tone
increases.
FASCIASWITCH PANEL
REMOVAL
1. Carefully pry out console controller panel
2. Disconnect all the electrical connection from
the fascia switch assembly.
3. Remove the mounting screws.
4. Take out the console controller panel
