ELECTRICAL
79
4. Remove the three mounting screws and take
out the switch.
REFITMENT
Follow the removal procedure in reverse.

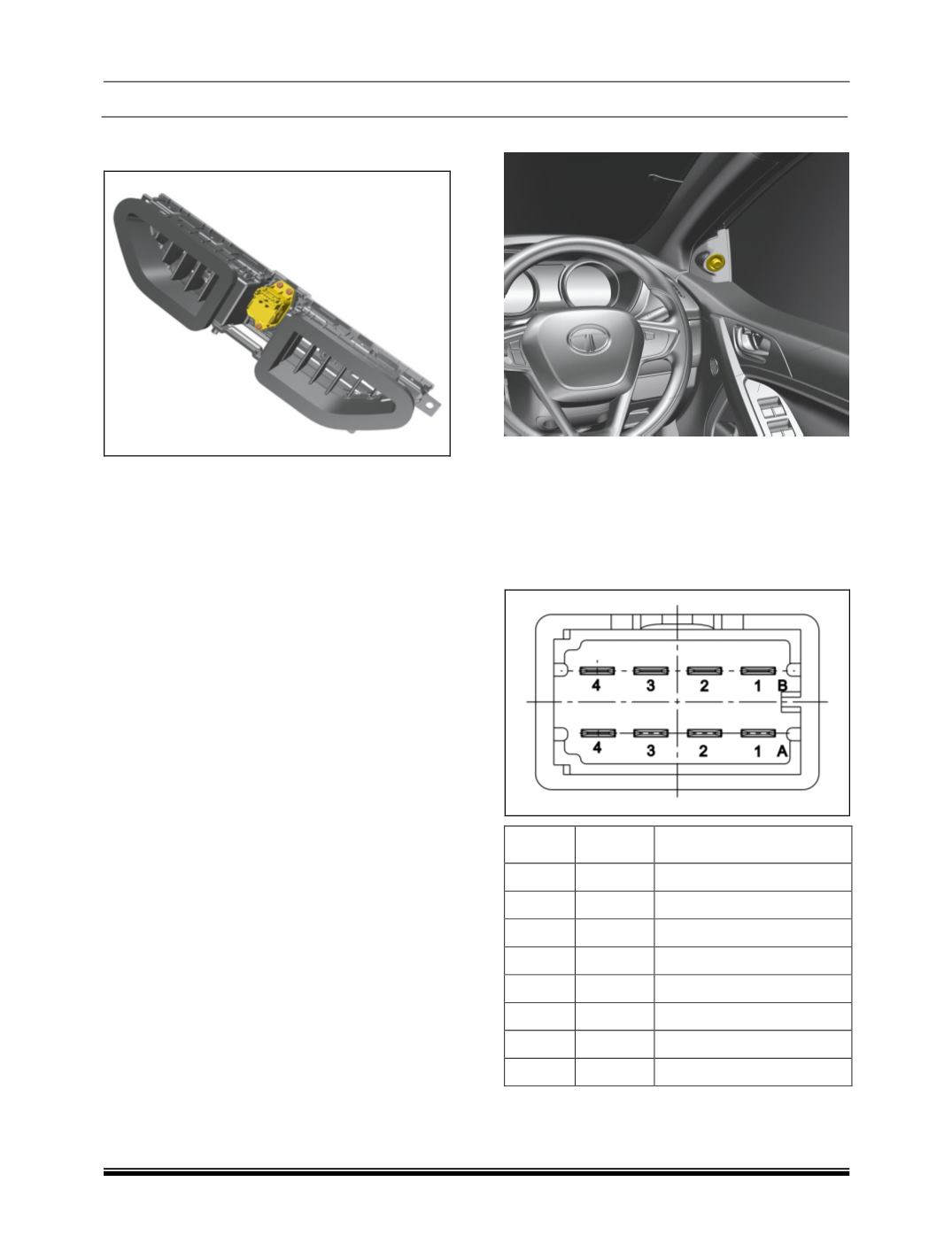

1.17 MIRROR SWITCH (If Applicable)
Mirror fold/Unfold (If applicable)-
Knob need to be in center. It should not be at left
& right mirror selection.
Pull Knob down for Mirror folding & again for
mirror unfolding.
PINOUT DETAILS
NO
PIN
DESCRIPTION
1
1A
2
2A
ACC
3
3A
4
1B
5
2B
6
3B
GND
7
4B
8
4A
BCM INPUT
