ELECTRICAL
76
B. DRIVE CONTROL SWITCHES

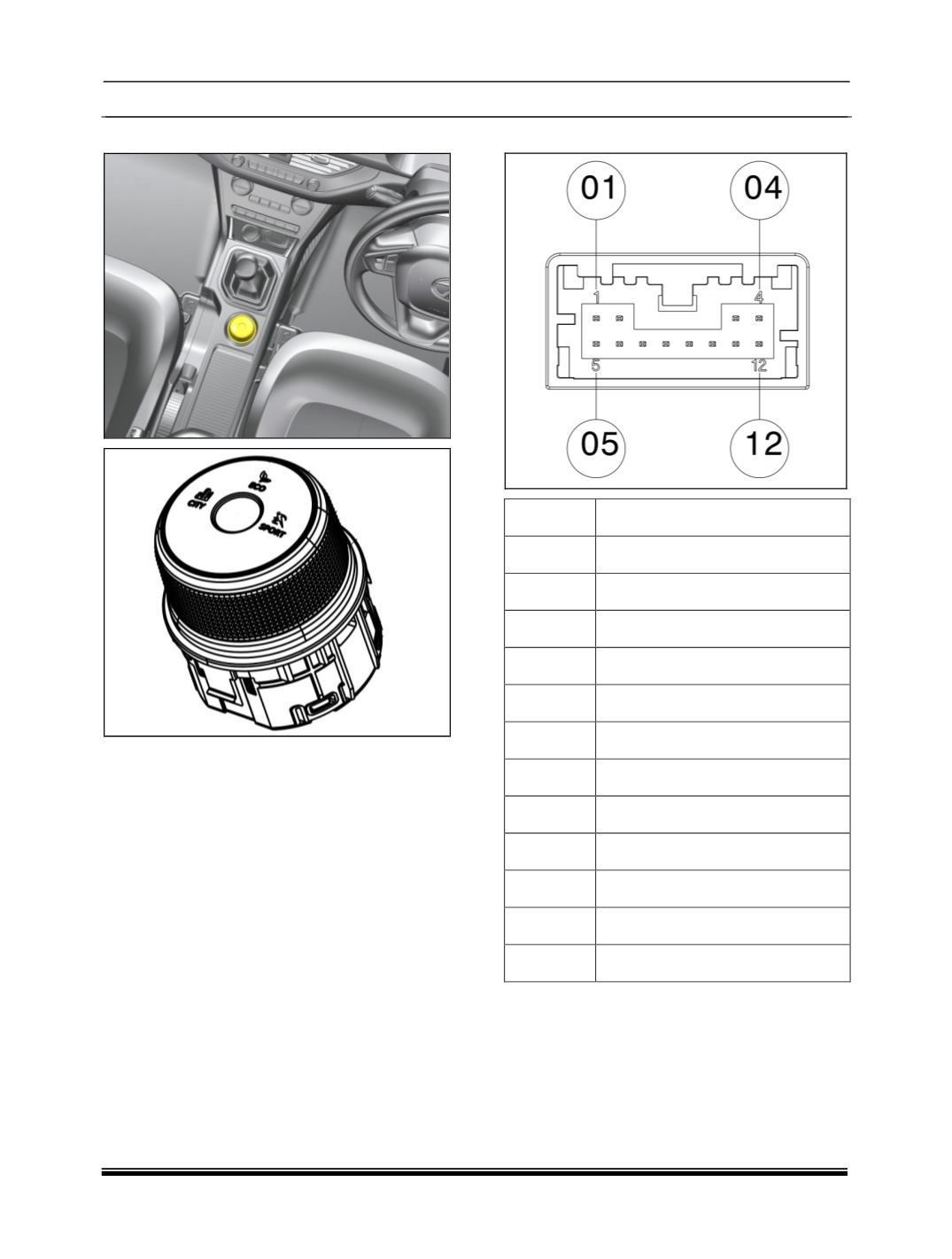

1. ECO DRIVE MODE SWITCH (If Applicable)
Three drive modes are provided. These modes
can be used to adjust characteristics of engine &
Vehicle performance.
Drive mode switch is provided on Centre Floor
console. Selected drive mode will be displayed on
instrument cluster as telltale
When Switch is in ECO mode, Switch sends
continuous signal to EMS ECU at ECO Pin.
There is no Signal at Sport Pin
When Switch is in Sport mode, Switch sends
continuous signal to EMS ECU at Sport Pin.
There is no Signal at ECO Pin
When Switch is in City mode, Switch does not
send any signal to EMS ECU Switching
sequence City-->ECO-->Sport will be
repeated in 4 sets in one 360 rotation in clock
wise knob rotation & Vice versa for antilock
wise direction.
CONNECTION PIN DETAILS
PIN NO.
DESCRIPTION
01
NC
02
Parking illumination +
03
Park Illumination -
04
ECO sw input.
05
ECO sw ground.
06
Sport sw input
07
Sport sw ground.
08
NC
09
NC
10
Pakage Protected
11
Pakage Protected
12
NC
