NEXON

ELECTRICAL

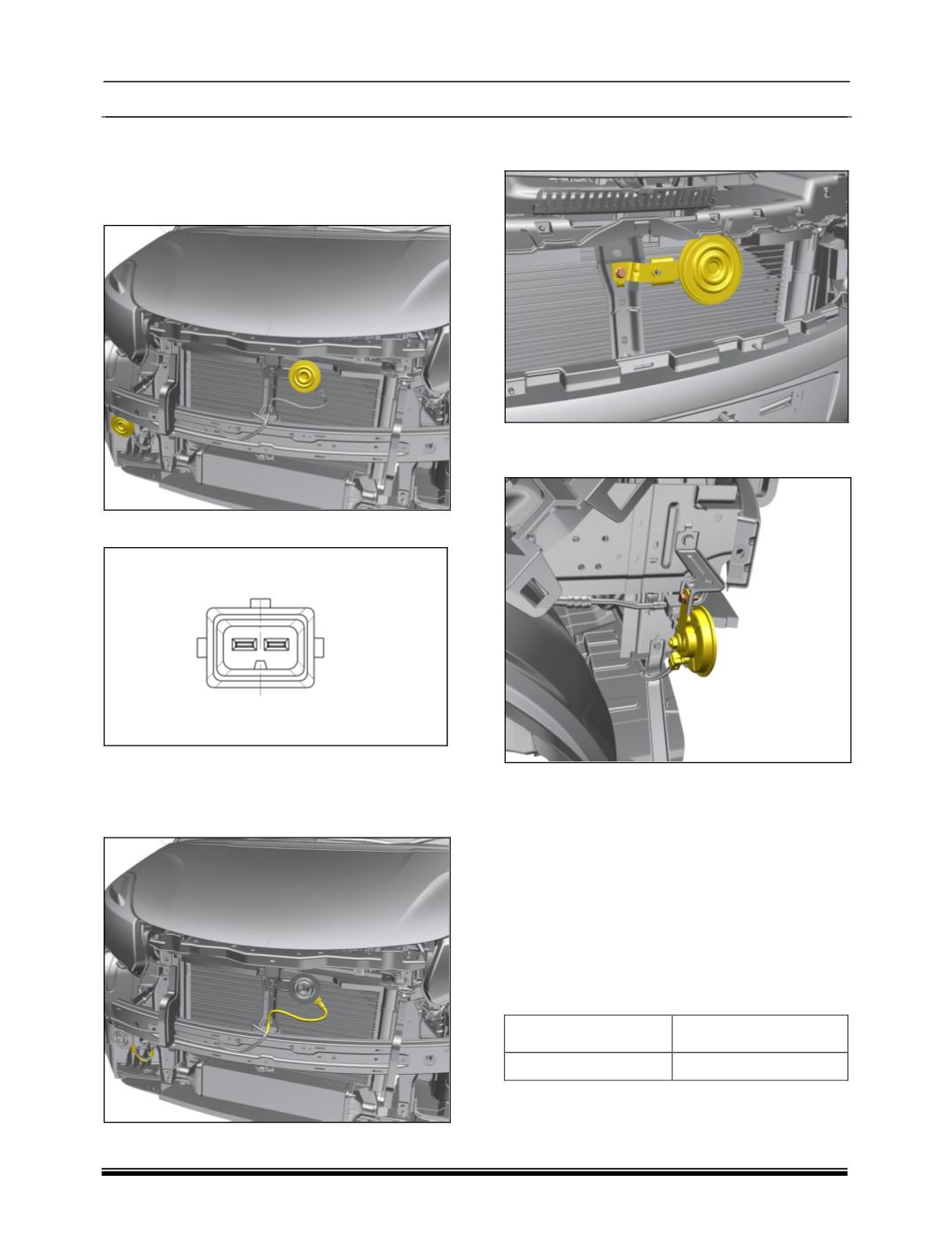

1.8 HORN

LOCATION

Horn is located in front of the car, behind the front

bumper, on frame-radiator support and chassis

PINOUT DETAILS

REMOVAL OF HORN

1. Remove the front bumper: Refer body group.

2. Disconnect the connector from horn.

3. Loosen horn-mounting fastener & remove

Horn.

4. Remove the mounting bolt and take out the

side-mounted horn.

INSPECTION OF HORN

Connect the positive terminal of the horn to

battery (+) and negative terminal to battery (-). If a

clean and sharp sound is heard, the horn is OK. If

no sound is heard, check continuity of the horn

coil using a multi-meter. If the coil is OK, check

the settings of the setting screw. Adjust the setting

screw till a clean and sharp sound is given out.

REFITMENT:

For refitment follow the procedure in reverse.

HORN –TORQUE VALUE TABLE

APPLICATION

TORQUE

Horn MTG Bkt

0.95 to 1.0 Kgfm
