ELECTRICAL
40

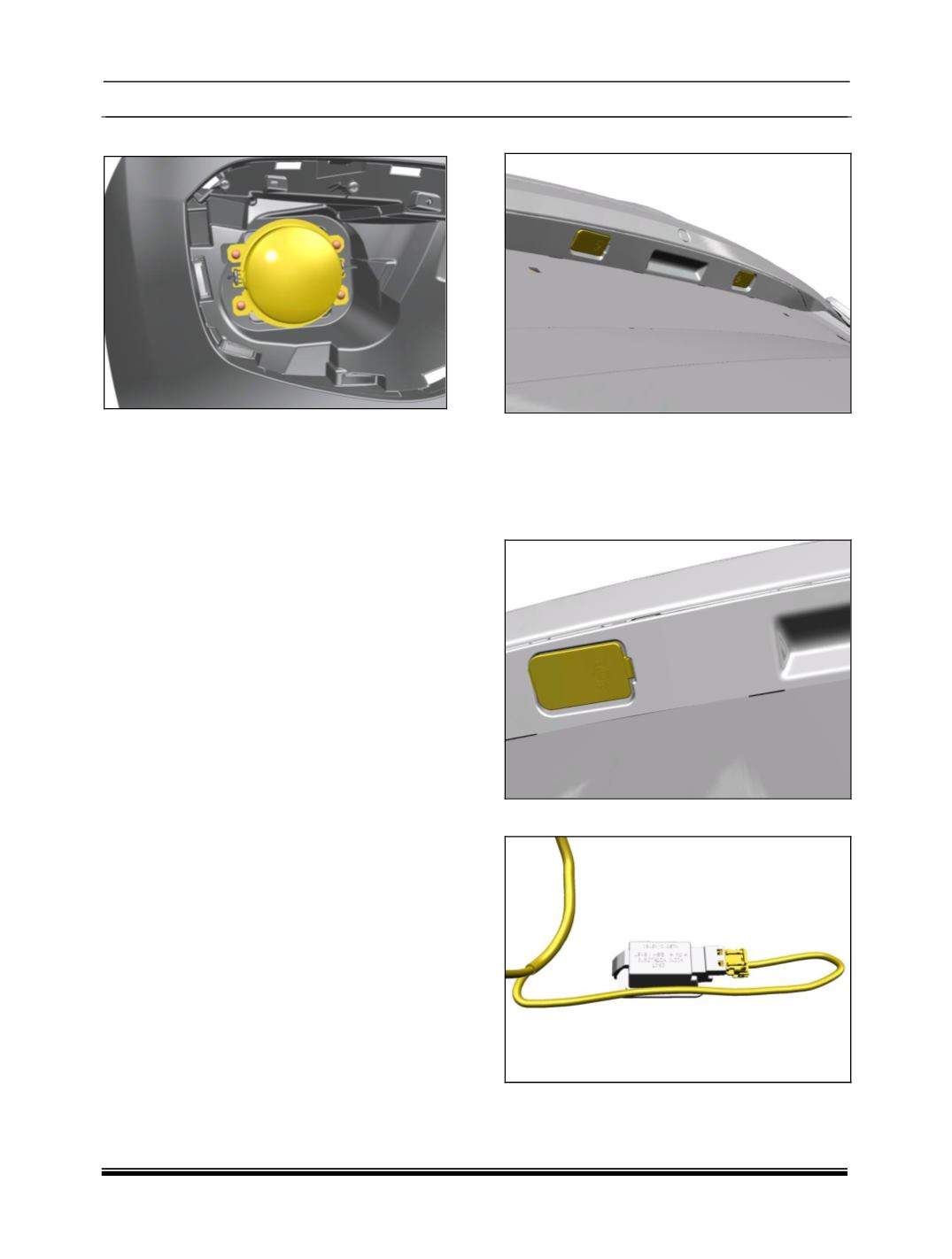

3. Remove four screw of fog lamp.
REFITMENT
For refitment follow the procedure in reverse.
BULB REPLACEMENT PROCEDURE
1. Disconnect the electrical connection.
2. Remove the bulb assembly by rotating in
anticlockwise direction.
3. Take out the bulb from holder& replace with
new one.
4. Fit the assembly by rotating in clockwise
direction.
5. Connect the electrical connection.
1.7 11 REGISTRATION PLATE LAMP
REMOVAL
AND
REFITMENT
OF
REGISTRATION PLATE LAMP
REMOVAL
1. Gently pry out the lamp assembly from the rear
bumper by pressing the mounting clip.
2. Disconnect the connector from lamp.
REFITMENT
Carry out the fitment process in the reverse order
of the removal.
