ELECTRICAL
38

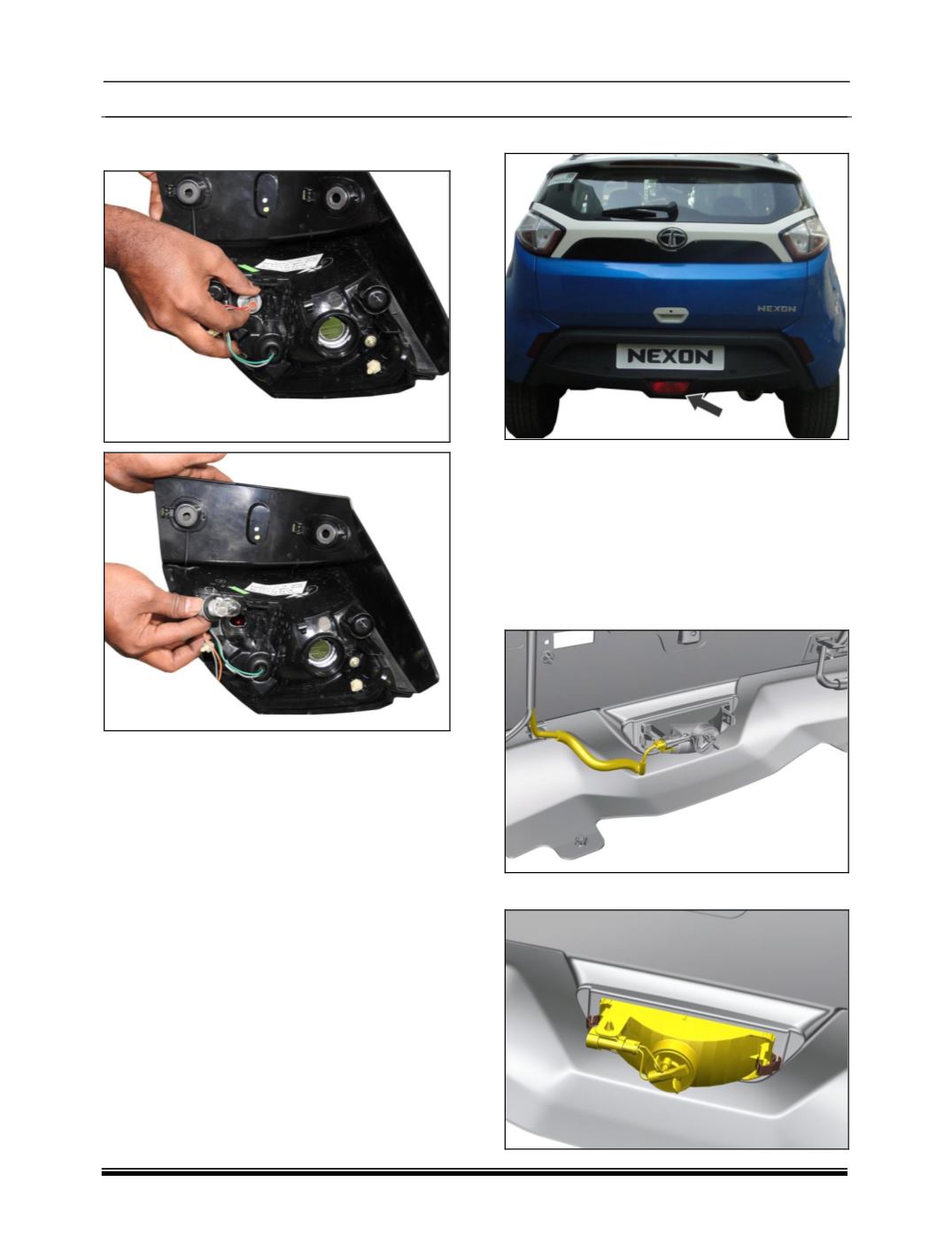

7. Rotate the bulb holder in clockwise to lock the
bulb holder on lamp
REFITMENT
1. Position Tail lamp to its proper place.
2. Push the lamp at catcher points to sliding
direction x axis to lock with Trim Clip on BSO &
simultaneously catcher on BSO.
3. Tight the both nuts
4. Connect Tail lamp connection.
5. Close the Tailgate
1.7.9 REAR FOG LAMP (HIGH VERSION ONLY)
LOCATION
The Rear fog lamp is located in the lower part of
the Rear bumper.
REMOVAL
1. Remove Rear bumper
2. Ensure all lamps in OFF condition.
3. Disconnect Rear fog lamp Connector.
4. Remove Rear fog lamp locking clip.
