NEXON

ELECTRICAL

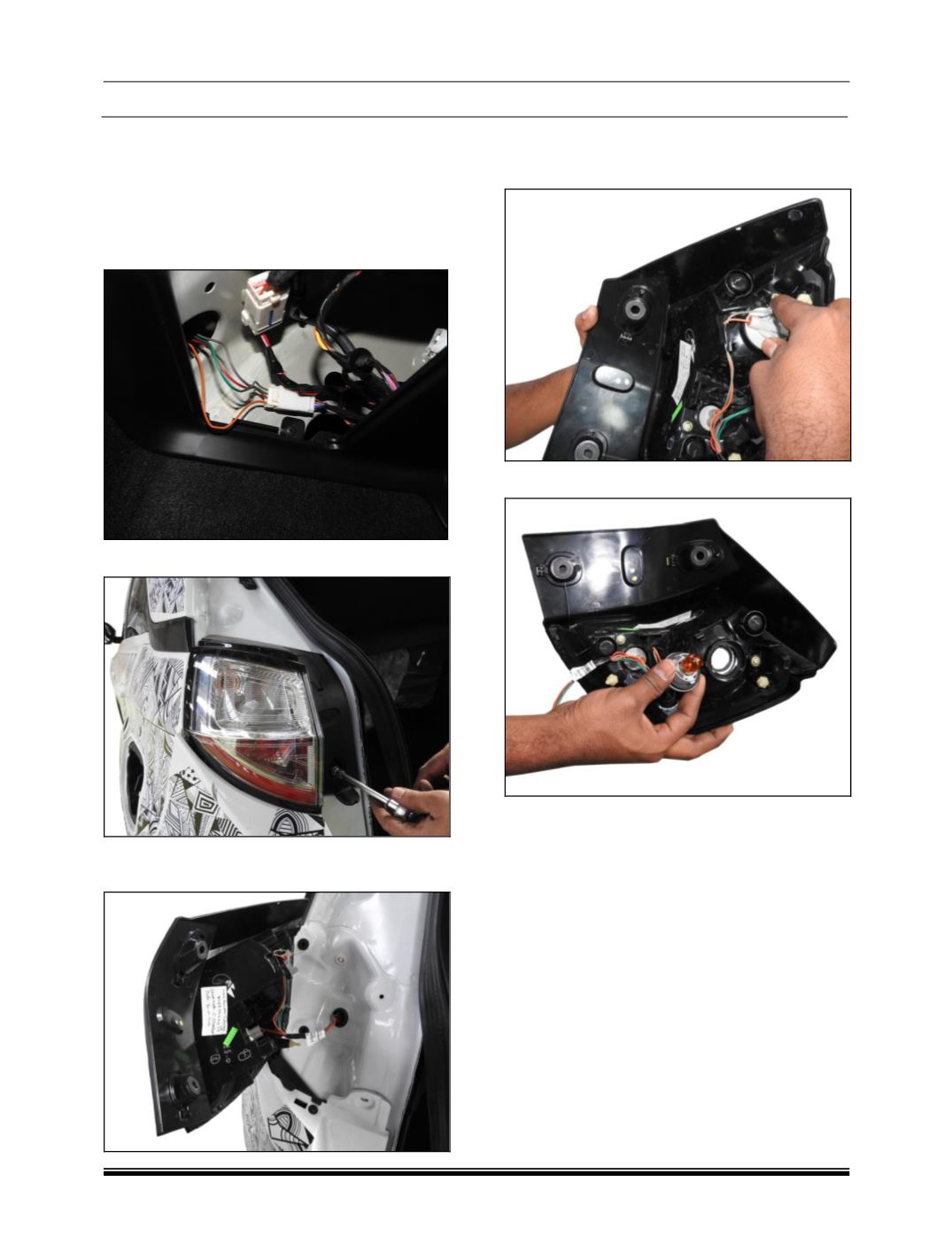

REMOVAL & REFITMENT OF TAILLAMP &

BULBS

REMOVAL

1. Open Tailgate & ensure all lamps in OFF

condition.

2. Disconnect Tail lamp Connector.

4. Remove the two nut mounting fastener.

5. Pull the lamp at catcher points to release from

BIW & take lamp out from vehicle.

5. Rotate the turn signal bulb holder in anti-clock

wise direction to unlock the bulb holder from

lamp.

6. Remove the bulb holder from lamp.

6. Remove/replace the bulb.
