NEXON

1.5L REVOTORQ ENGINE

201

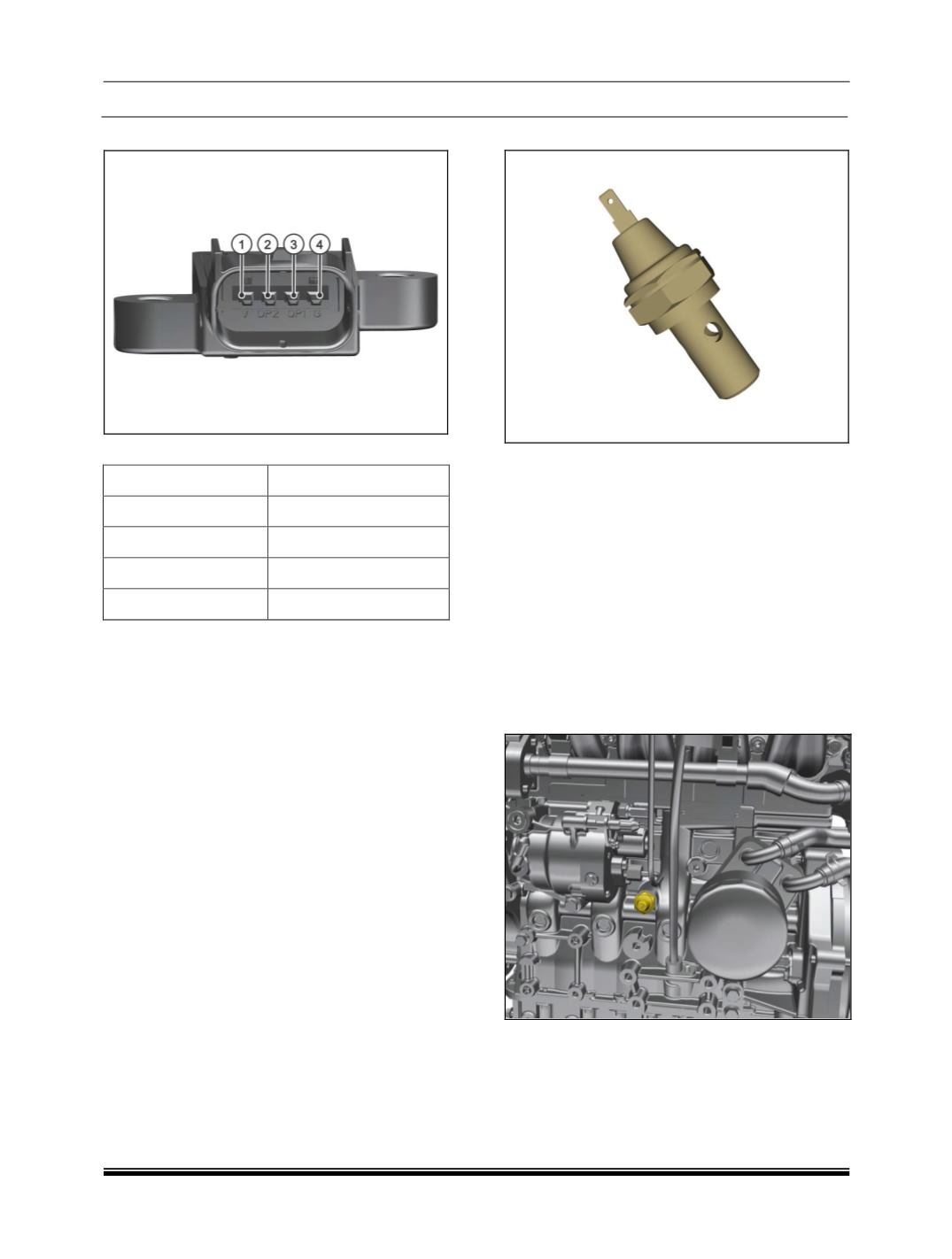

CONNECTOR DETAILS

PINOUT DETAILS

Pin No

Description

+ VE

O/P - 2

O/P - 1

- VE

x. OIL PRESSURE SWITCH

Oil Pressure switch is installed on the engine

block to check pressure in oil gallery. If the oil

pressure is detected as low, it Switch On the "Low

Oil pressure" tell-tale in the Instrument Cluster.

This information is very useful for the customer so

as to alert him to check the engine oil level in the

dip stick and top up the oil to bring it closer to max

mark level.

This switch is Normally Closed contact type and

opens only when oil pressure is above the range

of 0.6 to 0.9 Kg/

. It has a spring loaded

diaphragm which opens up to generate OK signal.

Otherwise if pressure is below the designated

range, the tell-tale on Cluster gets ON.

SENSOR LOCATION
