1.5L REVOTORQ ENGINE
196
STAND ALONE DIAGNOSIS / SENSOR
CHECKING PROCEDURE
OPERATING SPECIFICATION
Equipment
:
Use Multimeter
Power Supply :
6-16V
Checking
:
With Ignition 'ON',
Condition
:
Voltage between GND and
Vout
Signal Voltage :
4.7V (When the Flag is not in
front of the sensor)
:
0.6V (When the Flag is in
front of the sensor)
Operating Temperature:
-30
0
to 120
0
C
Air Gap:
0.5-1.5 mm
Target Speed:
0-4000 rpm
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Ground
2
Vout
3
Vs

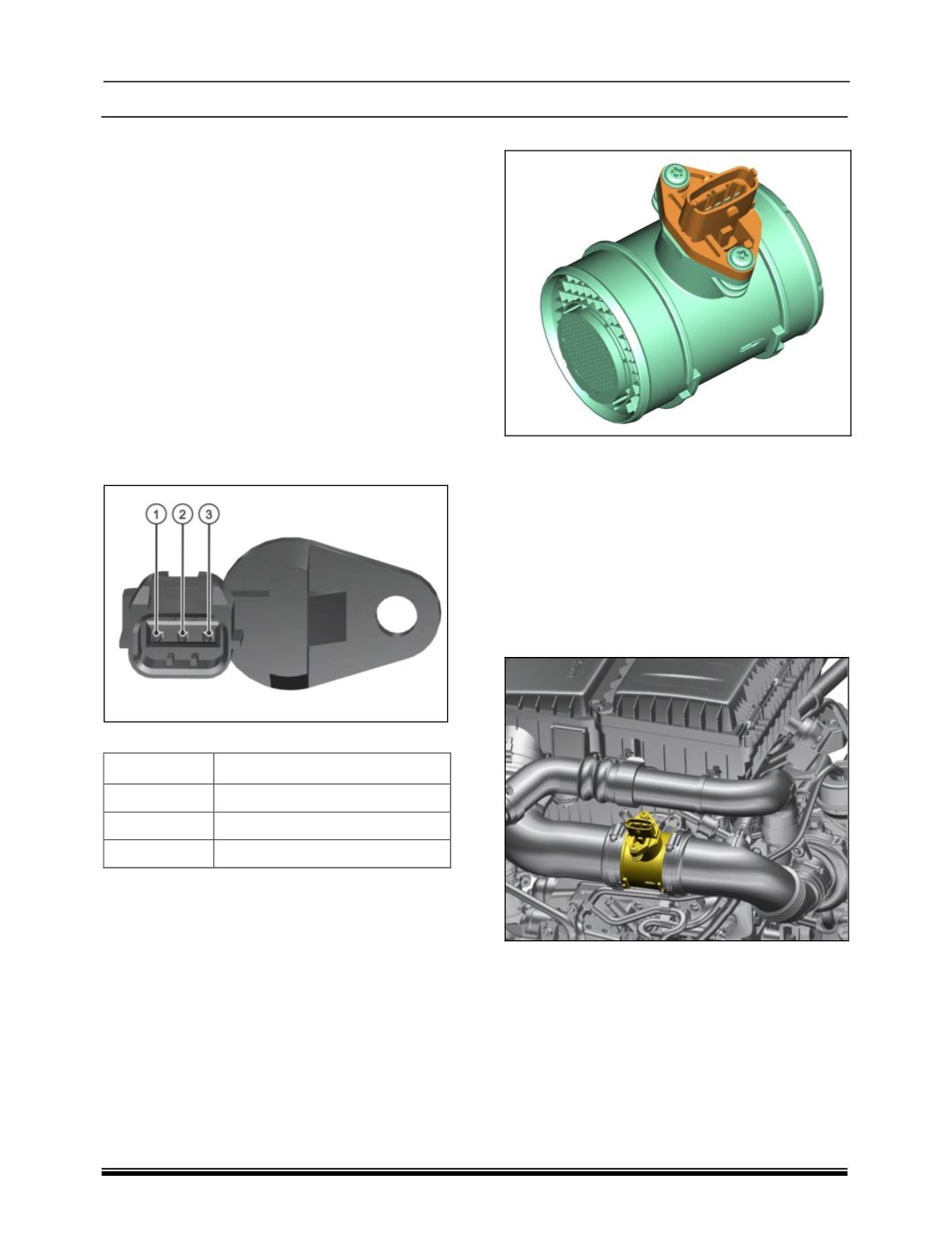

iv. AIR MASS FLOW SENSOR
This sensor is mounted between air filter and
turbocharger. It gives Information about the
amount of air quantity & temperature entering the
engine.
This input is used by the ECU for corrections of
fuel quantity based on amount of air availability for
optimization of exhaust gas circulation & the
turbocharger control. While assembling, the AMF
sensor the point of the arrow should be towards
the Turbo charger.
SENSOR LOCATION
Checking Condition
With Ignition 'ON',
Check Output Voltage between Pin 3
(MAF) and Pin 5 (GND).
Check Output Current between Pin 1 (Ub)
and Pin 5 (GND).
Signal/Output Current
The current consumption has to be between 35
and 55mA.
