1.5L REVOTORQ ENGINE
204

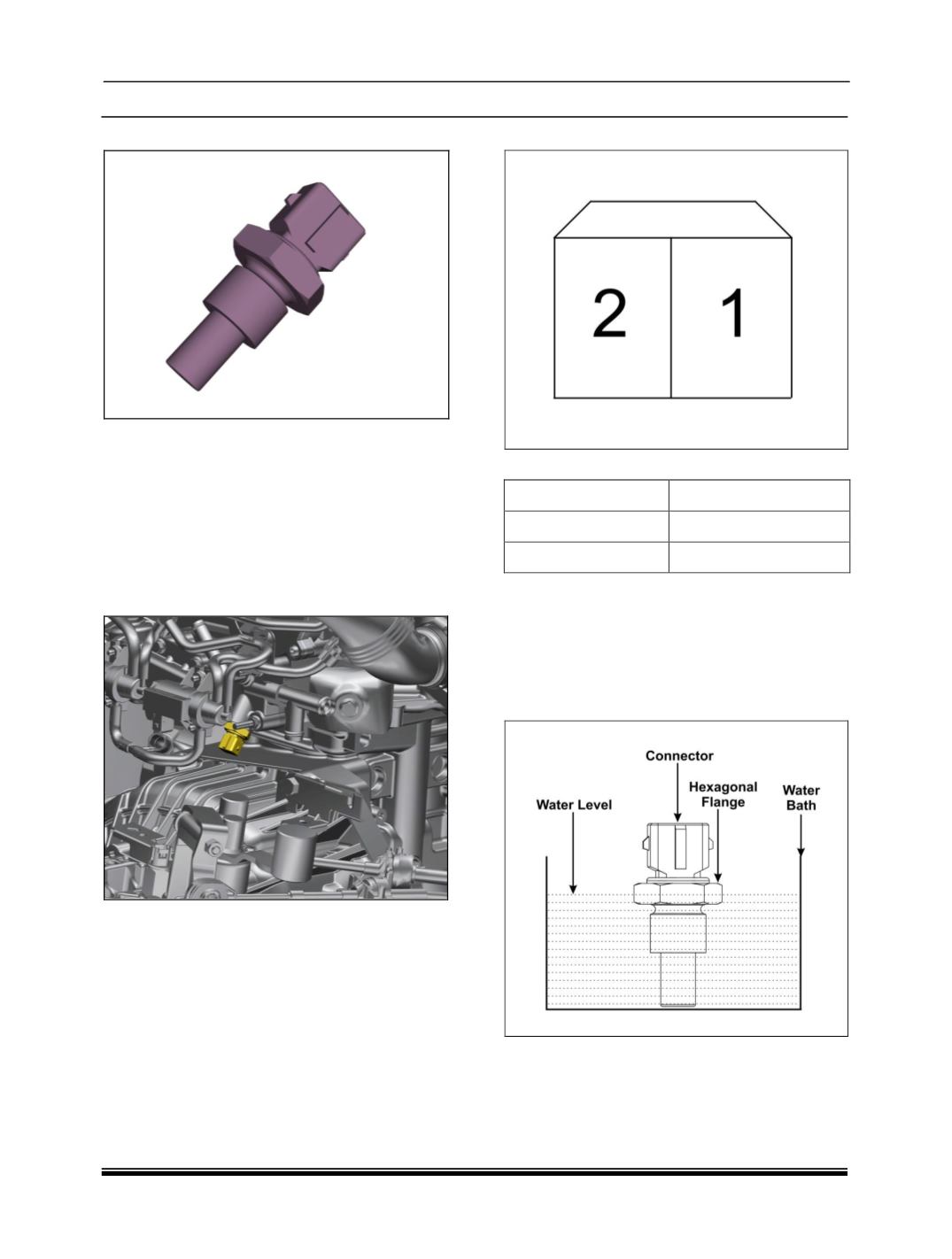

xii. COOLANT TEMPERATURE SENSOR
A semiconductor material changes its resistance
when exposed to variable temperature source.
There is one temperature sensor fitted on water
box. Resistance decreases as temperature
increases this provides engine operating
temperature input to the ECU. Corrections for
injection parameters are done by the ECU based
on coolant temperature to run the engine with
maximum efficiency at all temperatures.
SENSOR LOCATION
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Sensor Signal
2
Sensor Return
Equipment Required
3 ½ Digital Multi-meter (DMM)
Water Bath
Heating arrangement for boiling the water
Measurement Set-up showing the water level up
to which the sensor should be dipped.
