1.5L REVOTORQ ENGINE
126

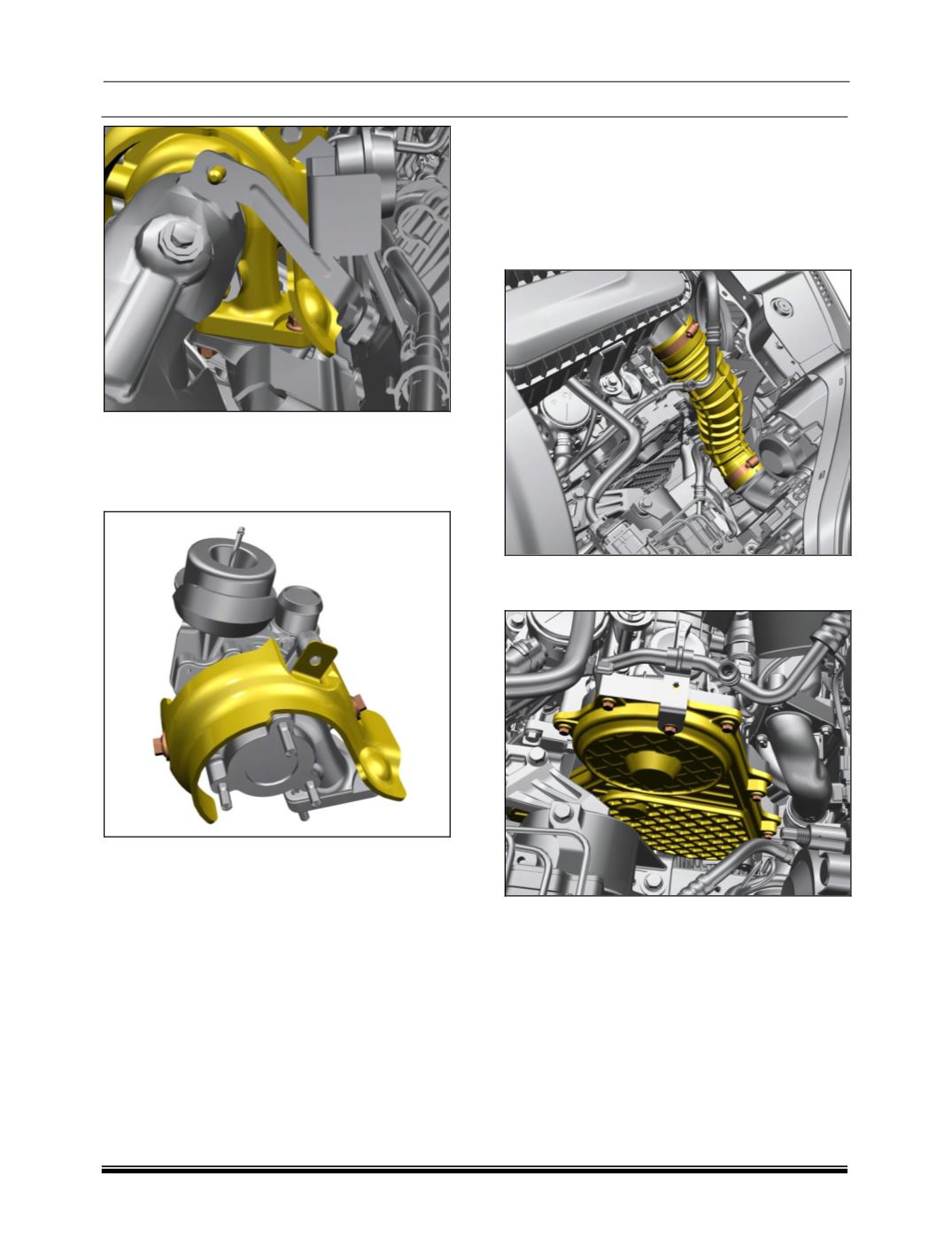

10. Remove the turbocharger assembly along
with the heat shield.
11. Remove the mounting fasteners and take out
the turbocharger heatshield.
FITMENT
Follow the reverse order of removal procedure.
G. TIMING BELT REMOVAL AND REFITMENT
1. Place the vehicle on the two post lift and
engage the parking brake.
2. Open the hood (bonnet).
3. Disconnect the rubber hose connecting the air
filter.
4. Remove the top timing cover mounting bolts
accessible from the bonnet side.
