1.5L REVOTORQ ENGINE

131

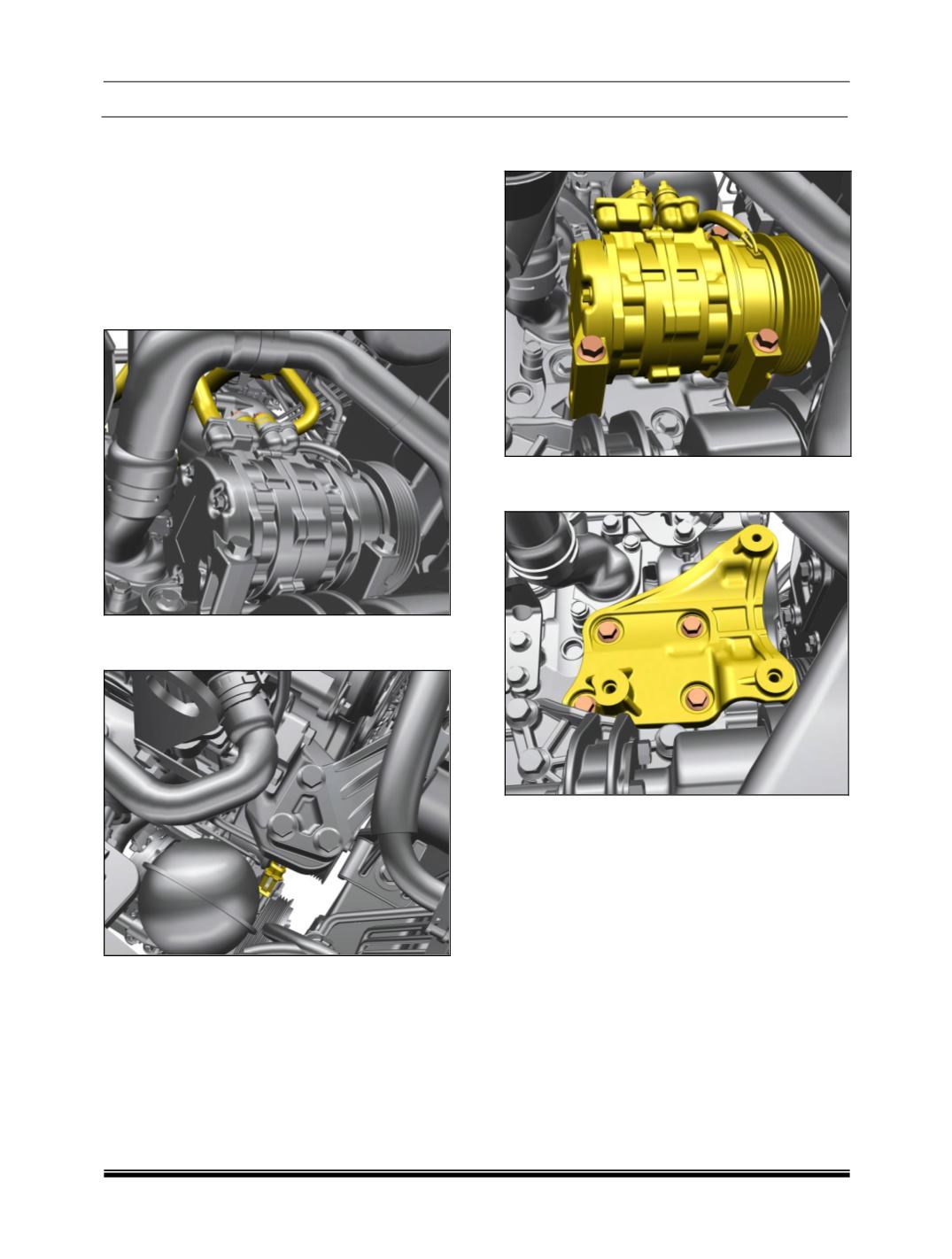

J. COMPRESSOR MOTOR REMOVAL AND

REFITMENT

REMOVAL

1. Remove the compressor belt.

(For removal

procedures refer compressor and alternator

belt replacement).

2. Lift the vehicle on the two post lift.

3. Remove the suction and discharge hose of the

compressor.

4. Disconnect the electrical connection of the

compressor.

5. Loosen and remove the three mounting bolt

and take out the compressor.

6. Loosen and remove the mounting bolts and

take out the compressor support bracket.

REFITMENT

Follow the reverse order of removal procedure.
