1.5L REVOTORQ ENGINE

122

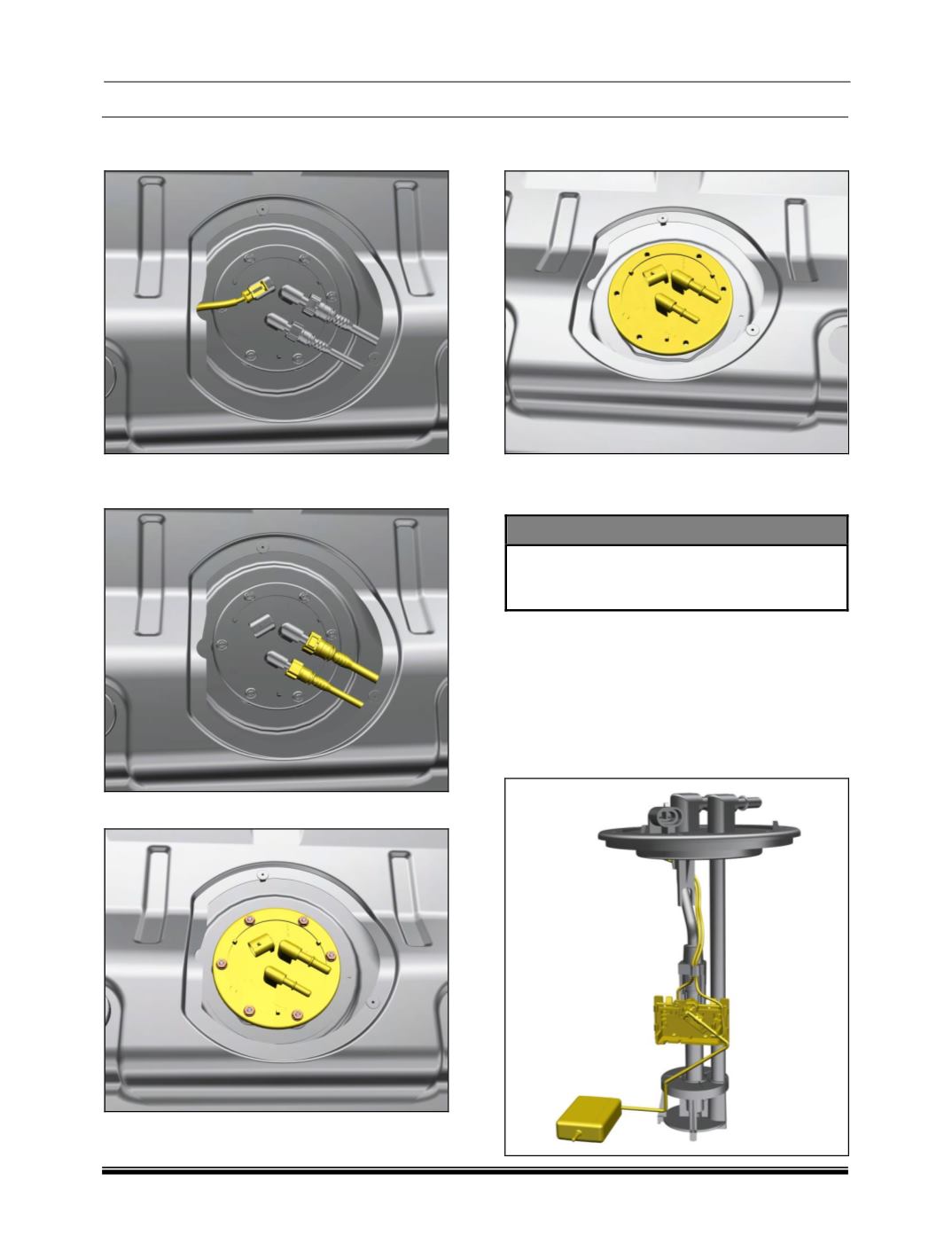

4. Disconnect the electrical connection of the fuel

pump module.

5. Disconnect the fuel delivery line and the hose

connecting fuel pump module to the canister.

6. Loosen and remove the mounting fasteners.

7. Lift the in-tank pump carefully out from the

tank.

FITMENT

For fitment follow reverse procedure for removal.

INSPECTION

Use multi-meter to confirm that the resistance

of the fuel level sensor changes with the level

of float position.

FUEL LEVEL SENSOR

REMOVAL

1. Remove the tank unit.

(For Removal Refer

Tank Unit removal process).

2.

Disconnect the electrical connection and

remove the fuel level sensor by releasing the

snap.
