1.5L REVOTORQ ENGINE
121
Check fuel pump and fuel level gauge
gaskets for leaks, cracks etc. Replace if
necessary.
Visually inspect fuel tank for leaks and
damage. Replace if necessary.
Check TPV for dust accumulation. Clean if
required.
FITMENT
For fitment follow reverse procedure for removal.
E. TANK UNIT
REMOVAL
CAUTION
Unless replacement is necessary, Tank
unit, fuel level sensor should not be
removed from the tank since the rubber
parts i.e. gasket, seals etc. may harden
when exposed to air and light.
Never apply an excessive force to the
tank unit nipple or lead wire. This may
result in bent or poor contact.

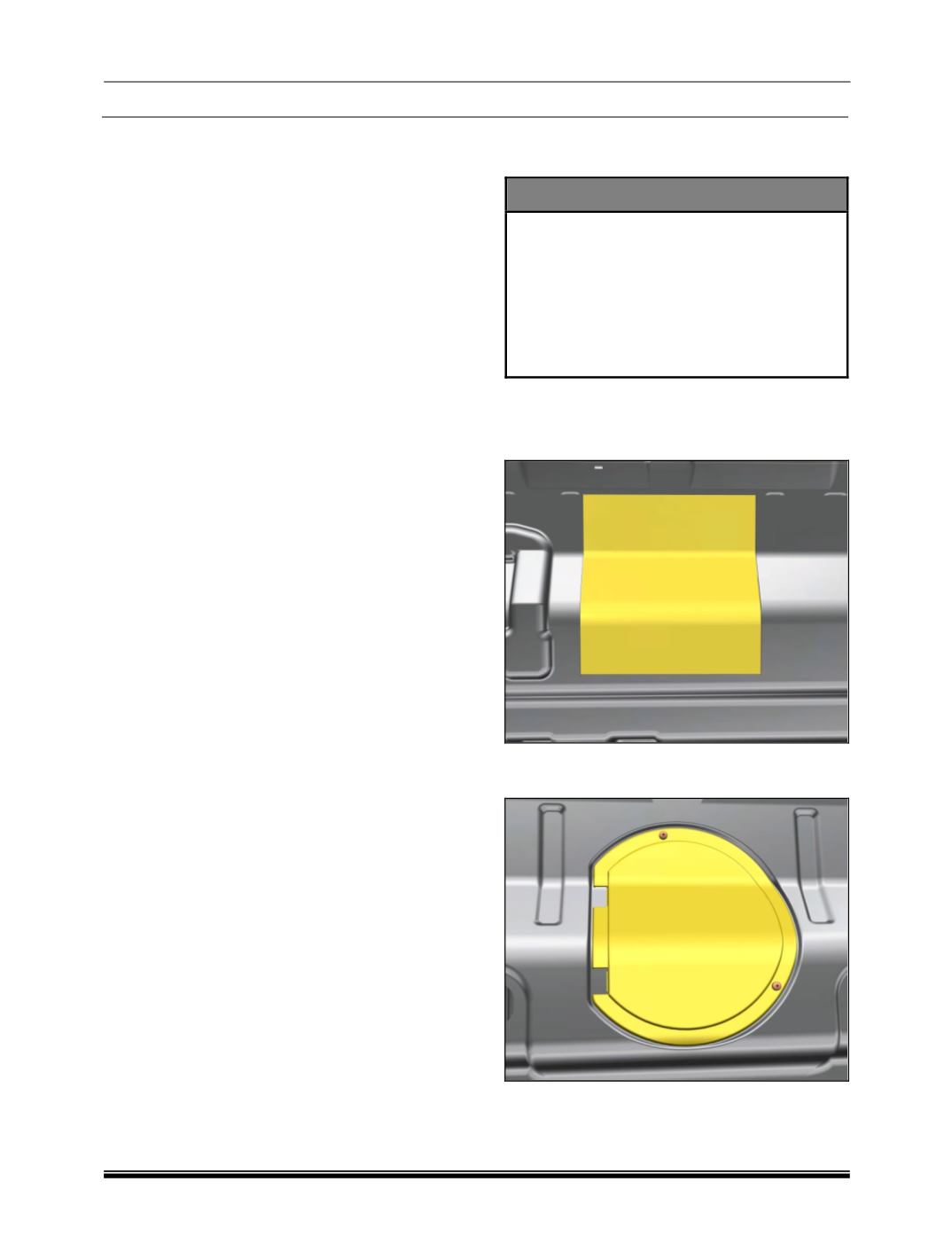

1. Fold the 2
nd
row Seat and somersault it to
access the in tank pump cut out.
2. Lift the carpet with foam at the cutout.
3. Loosen and remove the four screws of the
cutout cover and remove it.
