1.5L REVOTORQ ENGINE

119

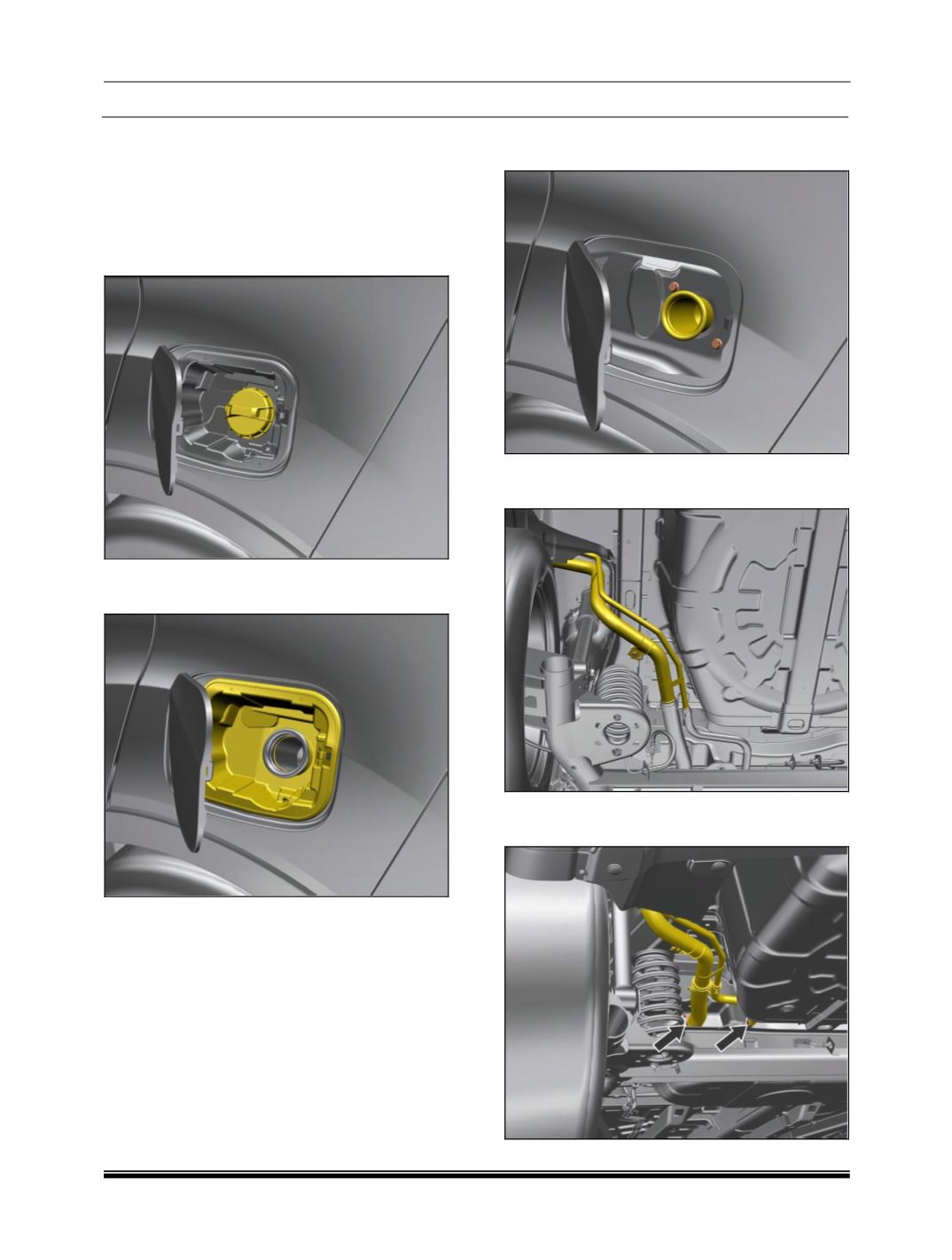

C. FUEL FILLER NECK ASSEMBLY AND

BREATHER HOSE

REMOVAL

1. Place the vehicle in a 2 poster lift.

2. Refer precautions and relive fuel pressure.

3. Remove the fuel filler cap.

4. Remove the fuel filler cover to access the fuel

filler neck assembly mounting bolts.

5. Disconnect fuel lid cable from fuel lid lever

and pull it out from the luggage compartment.

6. Loosen and remove the fuel filler neck

assembly mounting fasteners.

7. Unscrew the fastener at filler neck support

bracket.

8. Remove the fuel filler and breather hose

clamps from filler neck end.
