TANK UNIT
REMOVAL
CAUTION
Unless replacement is necessary, Tank
unit, fuel level sensor should not be
removed from the tank since the rubber
parts i.e. gasket, seals etc. may harden
when exposed to air and light.
Never apply an excessive force to the tank
unit nipple or lead wire. This may result in
bent or poor contact.

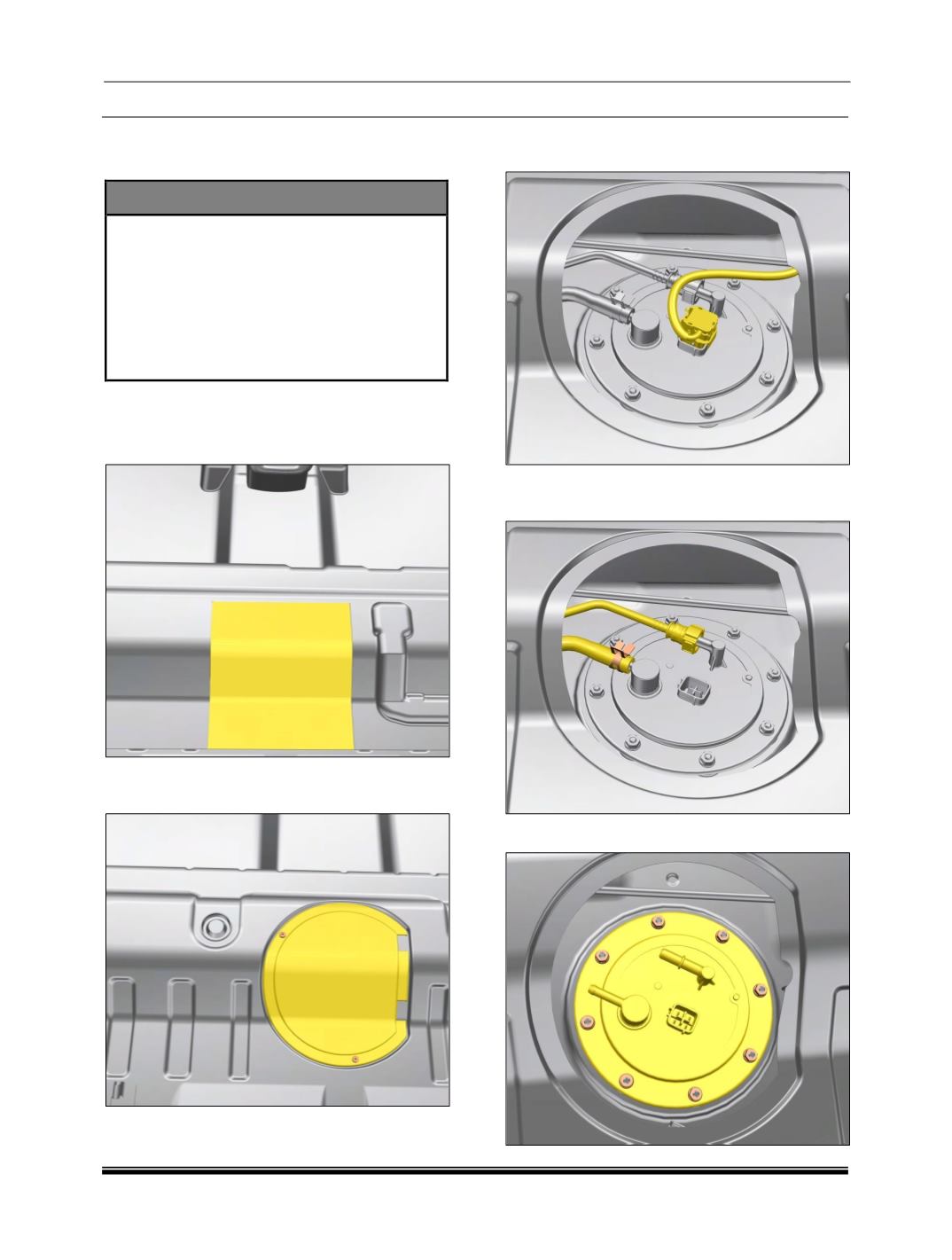

1. Fold the 2
nd
row Seat and somersault it to
access the in tank pump cut out.
2. Lift the carpet with foam at the cutout.
3. Loosen and remove the four screws of the
cutout cover and remove it.
4. Disconnect the electrical connection of the fuel
pump module.
5. Disconnect the fuel delivery line and the hose
connecting fuel pump module to the canister.
6. Loosen and remove the mounting fasteners.
