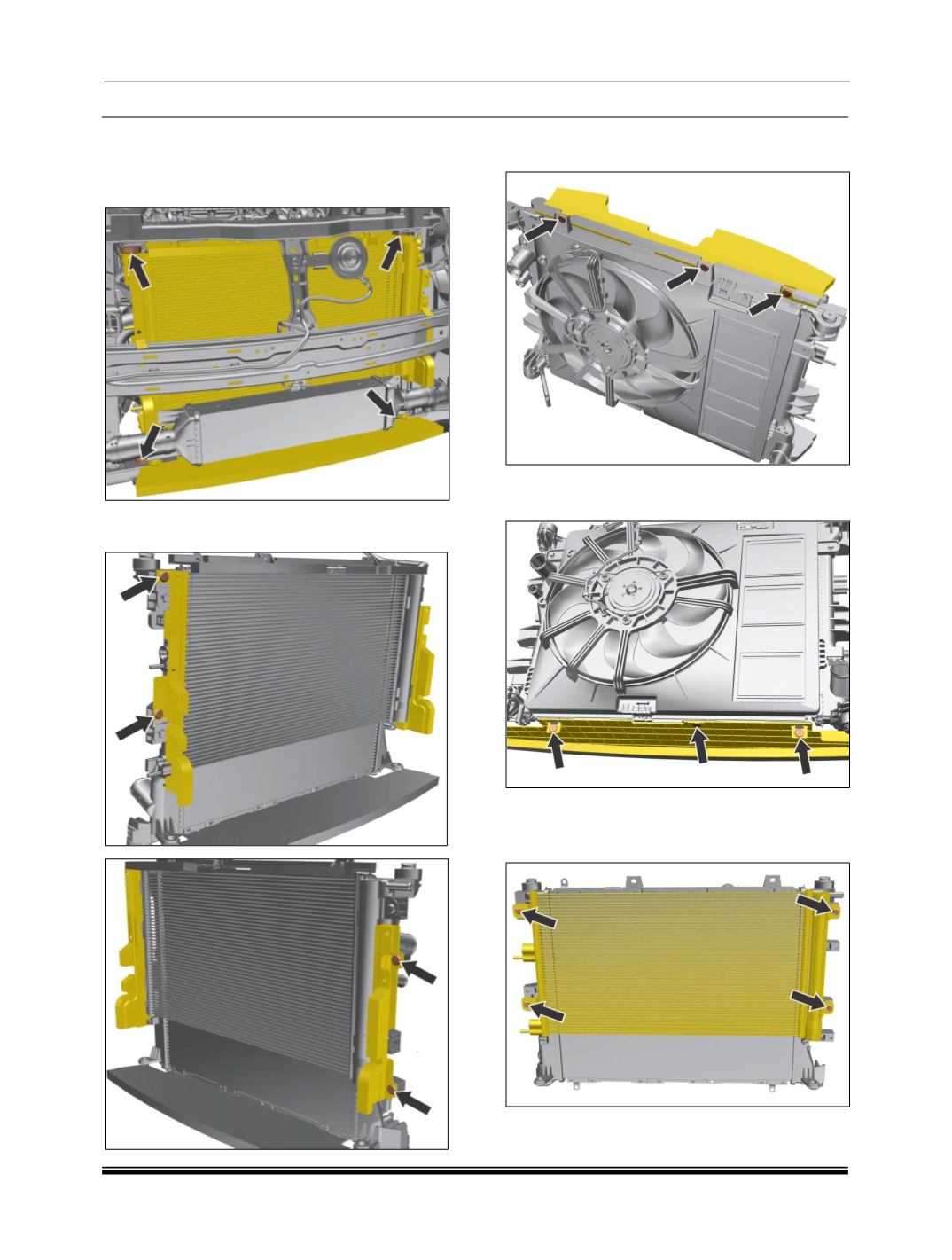

12.Tilt the radiator inwards and down the radiator

and condenser assembly from the grommet on

the top mounts, both LH and RH

simultaneously.

13.Pry out the sealing rivets and remove both the

LH and RH side condenser sealing.

14.Pry out the sealing rivets and remove top

radiator sealing.

15.Pry out the sealing rivets and remove bottom

radiator sealing.

16.After removing the radiator and condenser

assembly out, separate the condenser from

the radiator, by removing fasteners.
