152 / 1131
1.2L REVOTRON ENGINE
114

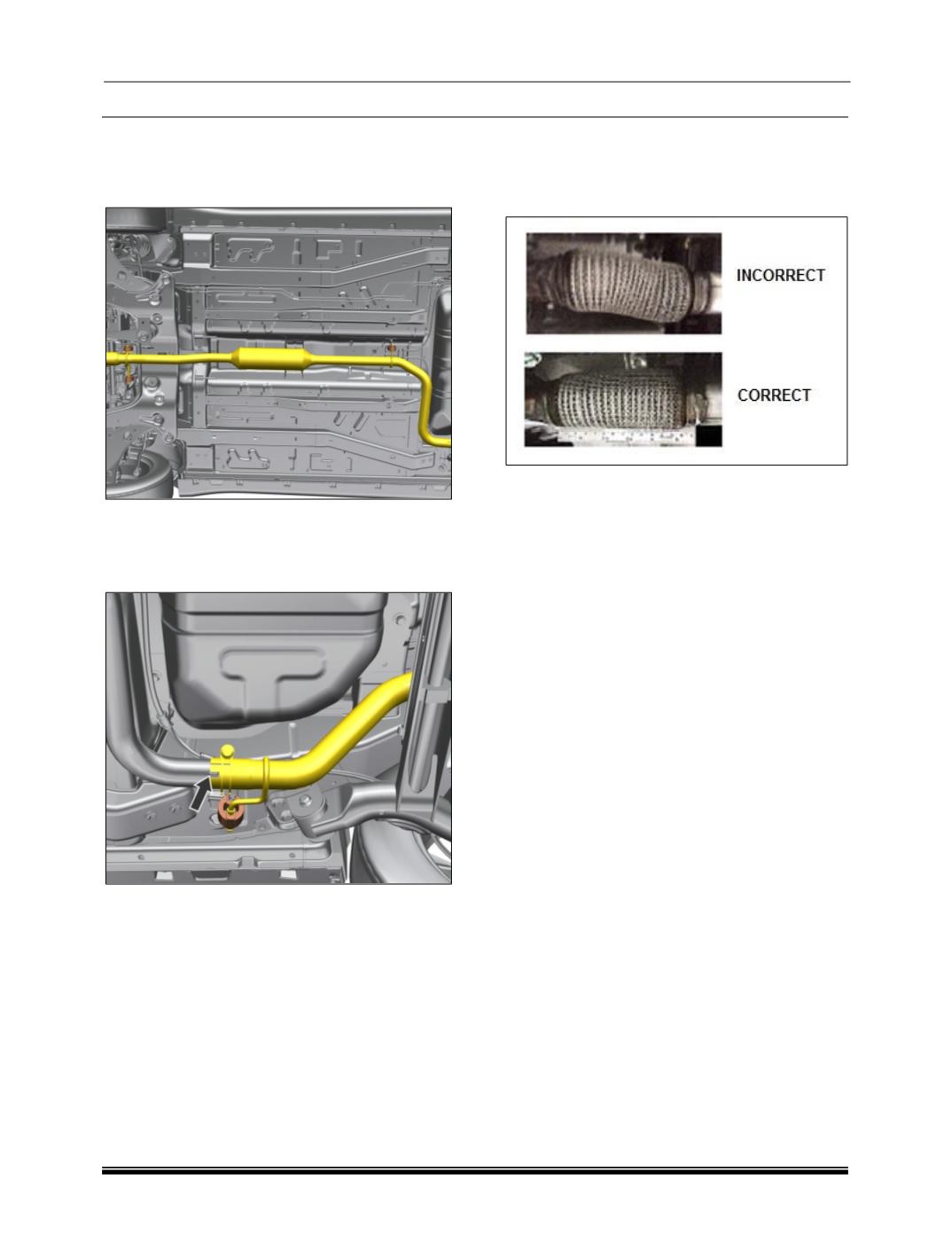

5. Insert exhaust front pipe with pre silencer
assembly into rubber hanger. (Ensure proper
orientation of exhaust front pipe with pre
silencer assy. rubber hangers)
6. Insert exhaust rear pipe assembly into exhaust
front pipe with presilencer up to stopper touch.
Just hand tighten the fasteners of pipe in pipe
joint clamp.
7. Tight the bracket on front pipe bolt by
pneumatic tool & apply tightening torque 2.5
kgf.m.
8. Tight the pipe in pipe joint clamp nut by
pneumatic tool & apply tightening torque 4.5
kgf.m.
NOTE
Ensure flex bellow should not be pre stress or
bend as shown in below figure & also ensure
proper orientation of rubber hangers
