564 / 1906
ENGINE
132
vi.

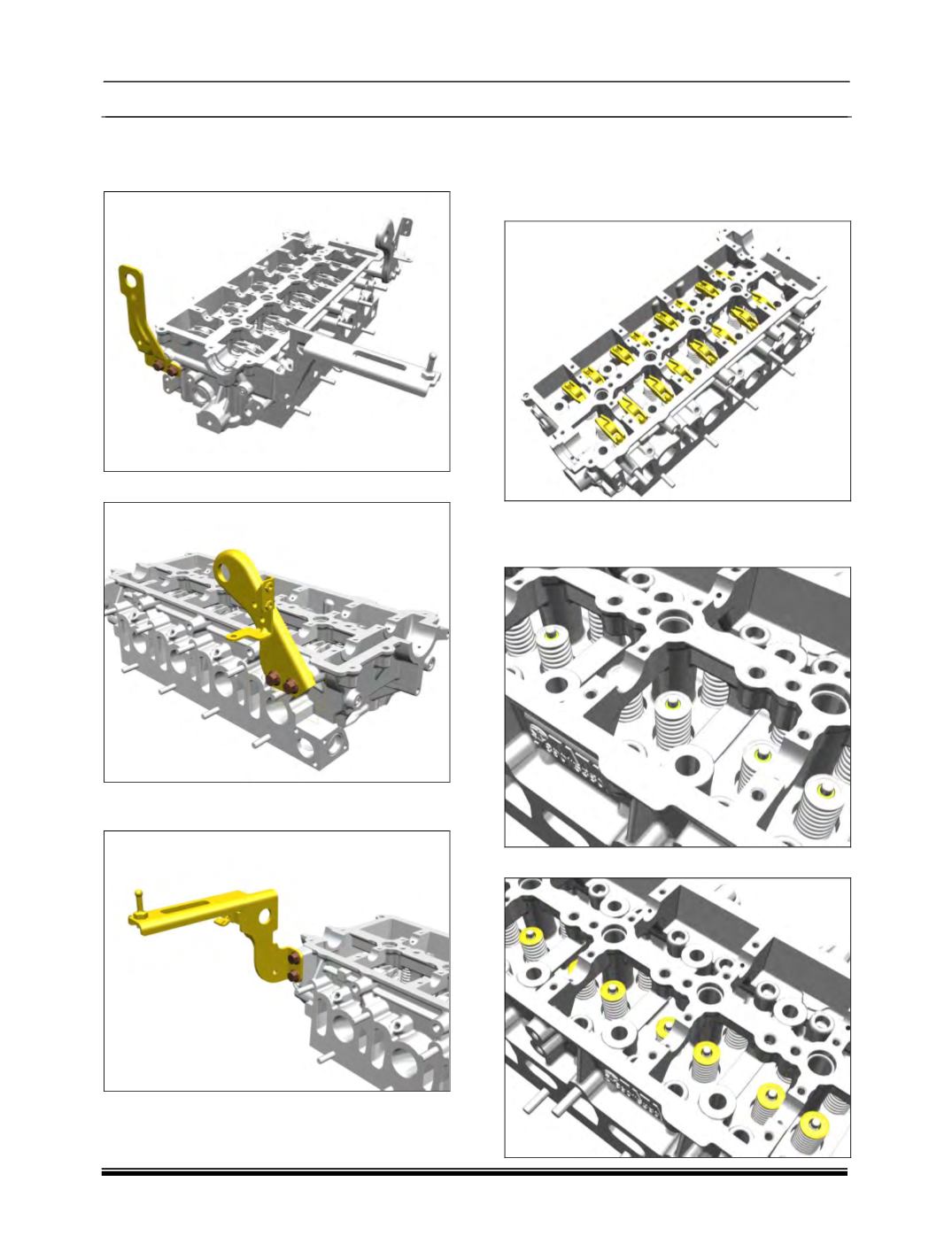

Removal of cylinder head sub-
assemblies :
1. Remove front lifting hook.
2. Remove rear lifting hook.
3. Remove engine cover mounting front LH
bracket assembly.
4. Remove
all the roller finger followers (RFF)
along with hydraulic lash adjusters (HLA) by
lifting them vertically and placing them in
correct sequence and in vertical direction only
to avoid oil drain from HLA.
5. Using valve spring compressor (2653 5890 06
02), compress valve springs and remove lack
halves.
6. Remove the valve spring retainers.
