ENGINE
128
iv.

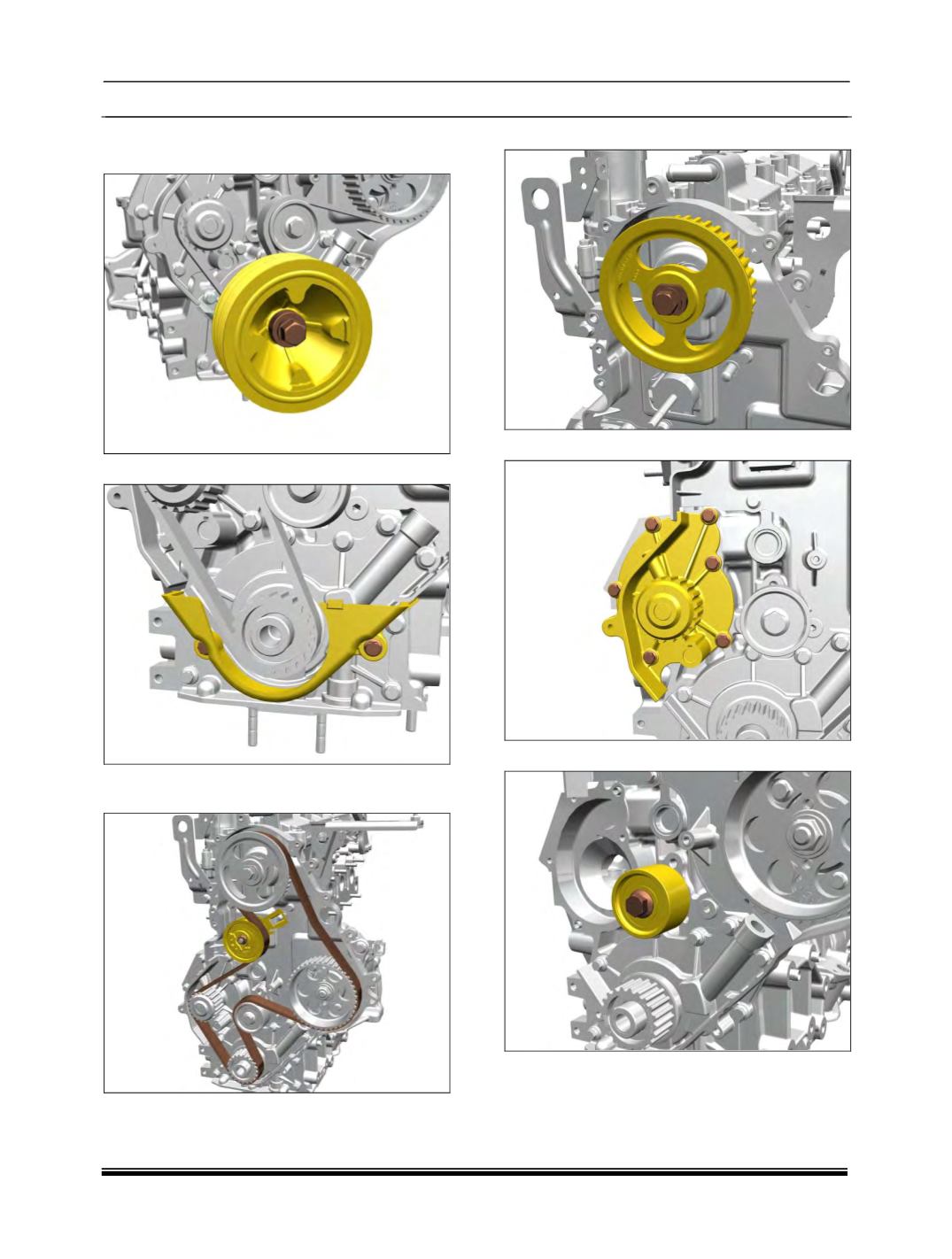

Remove of Timing Belt :
1. Remove Vibration Damper assembly.
2. Remove timing cover bottom assembly.
3. Loosen and remove auto tensioner bolt and
take out the auto tensioner and timing belt.
4. Remove camshaft timing gear.
5. Remove water pump assembly.
6. Remove Idler pulley assembly.
