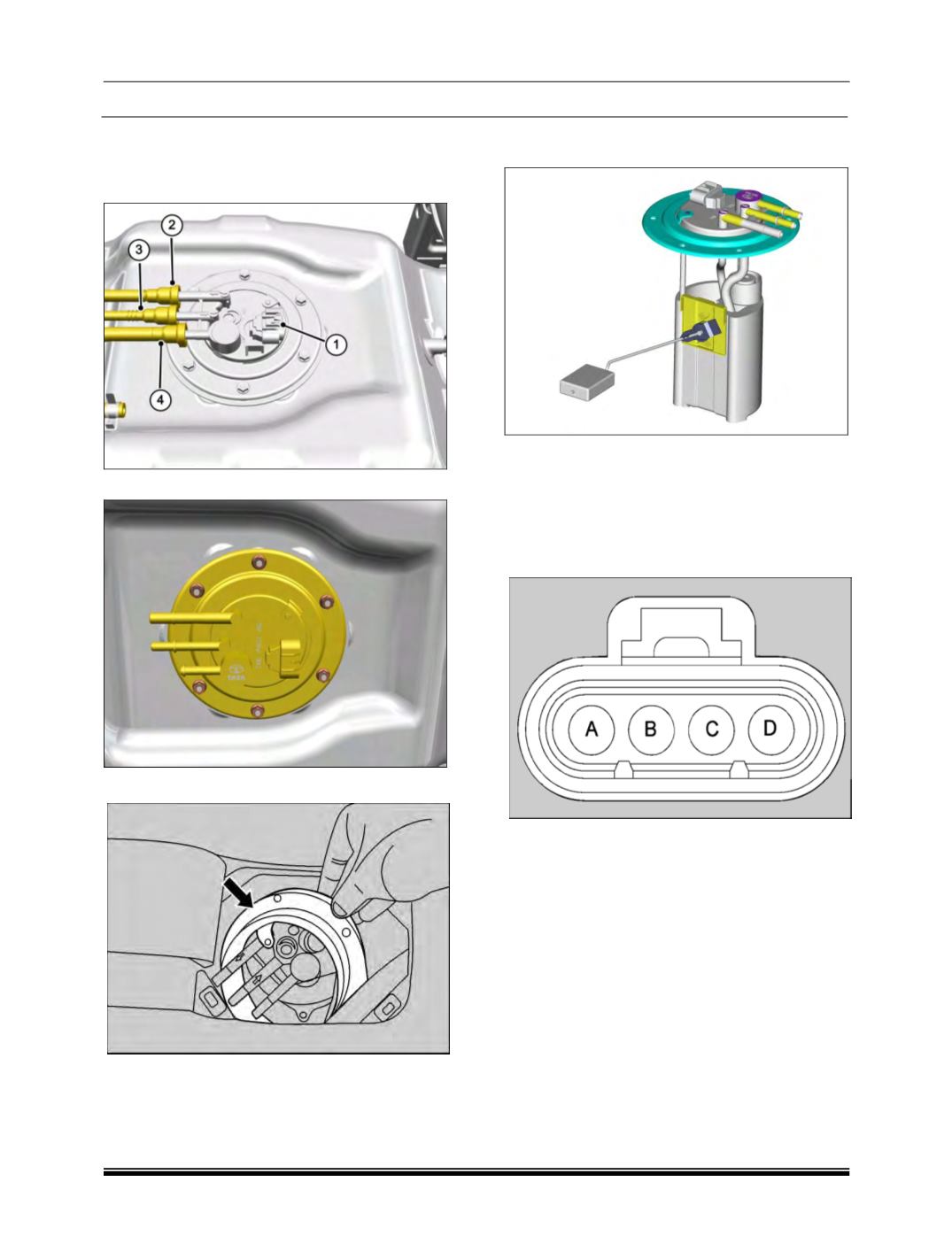

4. Disconnect the connector (1) and then

disconnect the fuel lines i.e. Delivery line (2),

Return line (3) and the Tank pressure valve

line (4)..

5. Loosen and remove the 6 mounting nuts.

6. Remove the locking ring.

7. Lift the in-tank pump carefully out from the

tank.

FITMENT :

Follow the reverse order of removal for fitment.

INSPECTION :

Use multimeter to confirm that the resistance of

the fuel level sensor changes with the level of float

position.

Measure the resistance in pins B and C. refer

next page for values at different heights of the

float.
