ENGINE
111

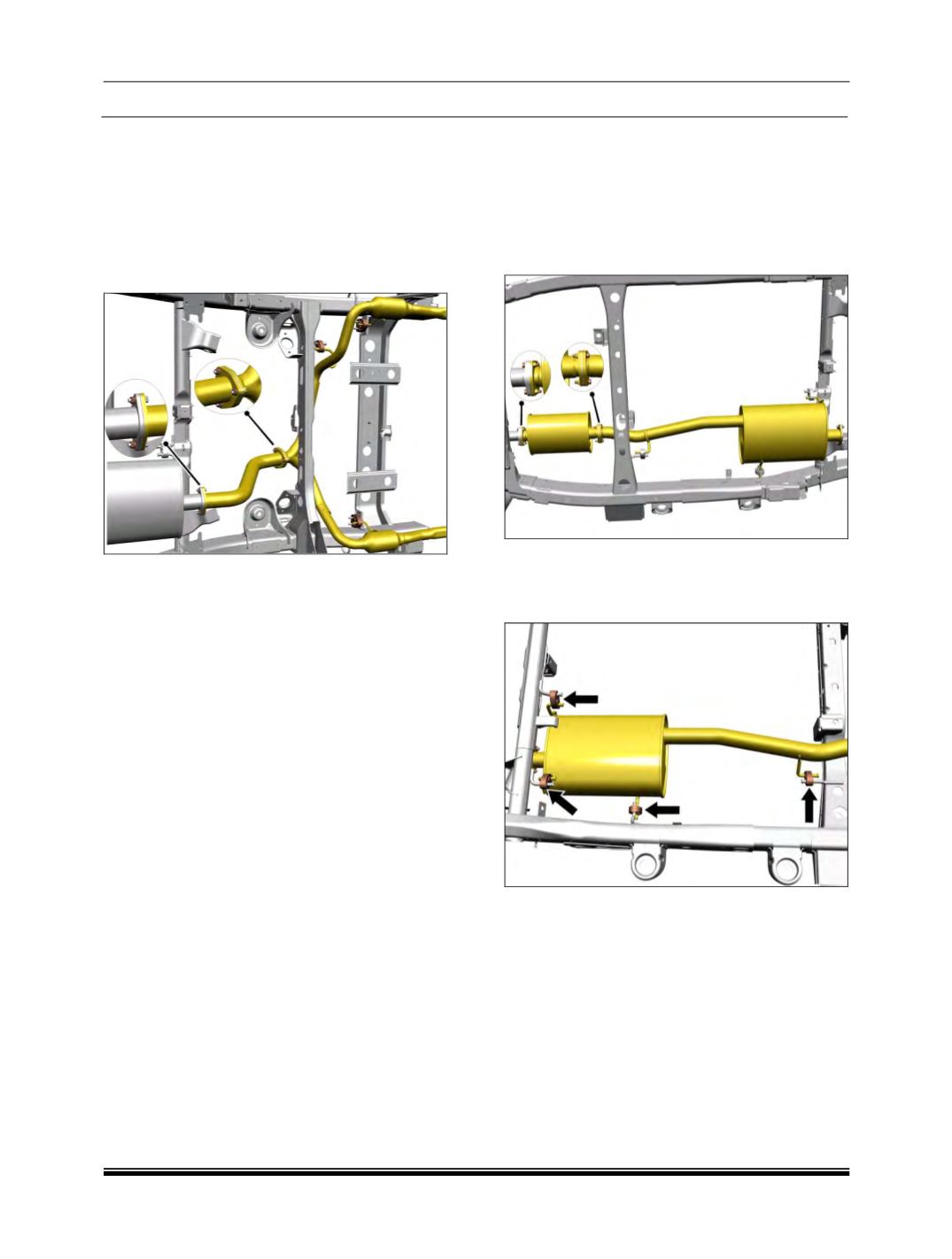

T. Post Silencer And Intermediate Pipe :
Removal:
1. Loosen and remove the mounting bolts and
disconnect the two pipe assembly along with
the Post silencer from Intermediate pipe
(rear)
Remove the two rubber hanger and then take
out the twin pipe assembly along with post
silencer.
2. Loose and remove the mounting bolts from
Main silencer end and remove the
Intermediate pipe assembly.
Fitment:
For fitment follow the reverse procedure of
removal.
U. Pre-Silencer And Main Silencer :
Removal :
1. Loosen and remove the Pre-silencer
mounting bolts
(3 Nos.).
2. Remove the mounting bolts from the other
end of Pre-silencer and take out the Pre-
silencer Assembly.
3. Disconnect the Intermediate pipe connection
by removing there mounting bolts & remove
rubber hangers take out the Main silencer
assembly.
Fitment :
For fitment follow reverse procedure of removal.
