ENGINE

185

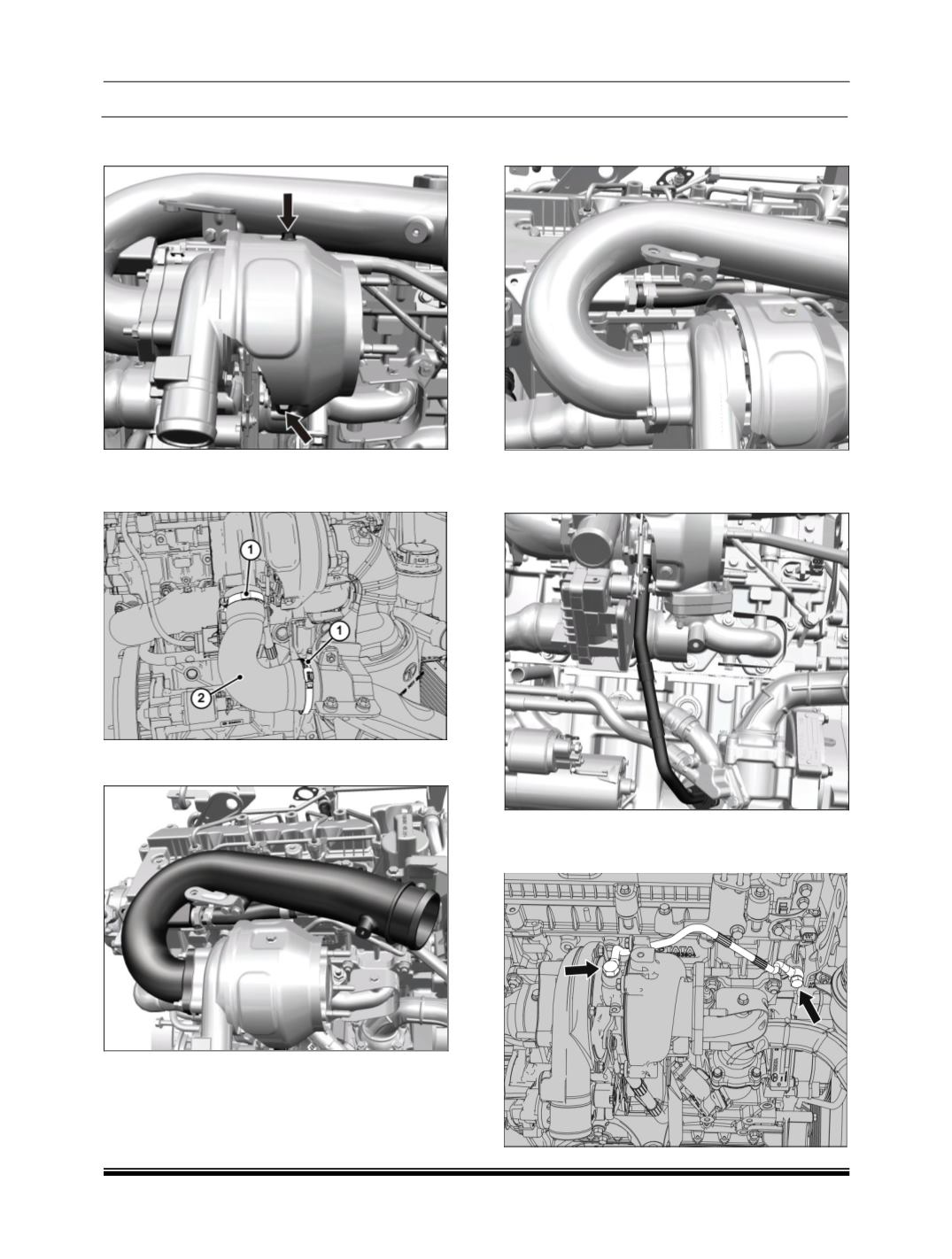

5. Remove the Turbocharger heat shield

(1)

by re-

moving the two mounting bolts.

6. Loosen and remove the clamps

(1)

and remove

the hose

(2)

between turbocharger and inter-

cooler pipe.

7. Loosen and remove one mounting bolts of the

intake pipe.

8. Remove the OMS hose pipe and loosen the in-

take pipe nuts from turbocharger to remove it.

9. Disconnect the Turbocharger oil return tube by

removing two mounting bolts from cylinder

block.

10. Loosen and remove the banjo bolt of oil feeder

line and disconnect the same from turbocharger

and cylinder head.
