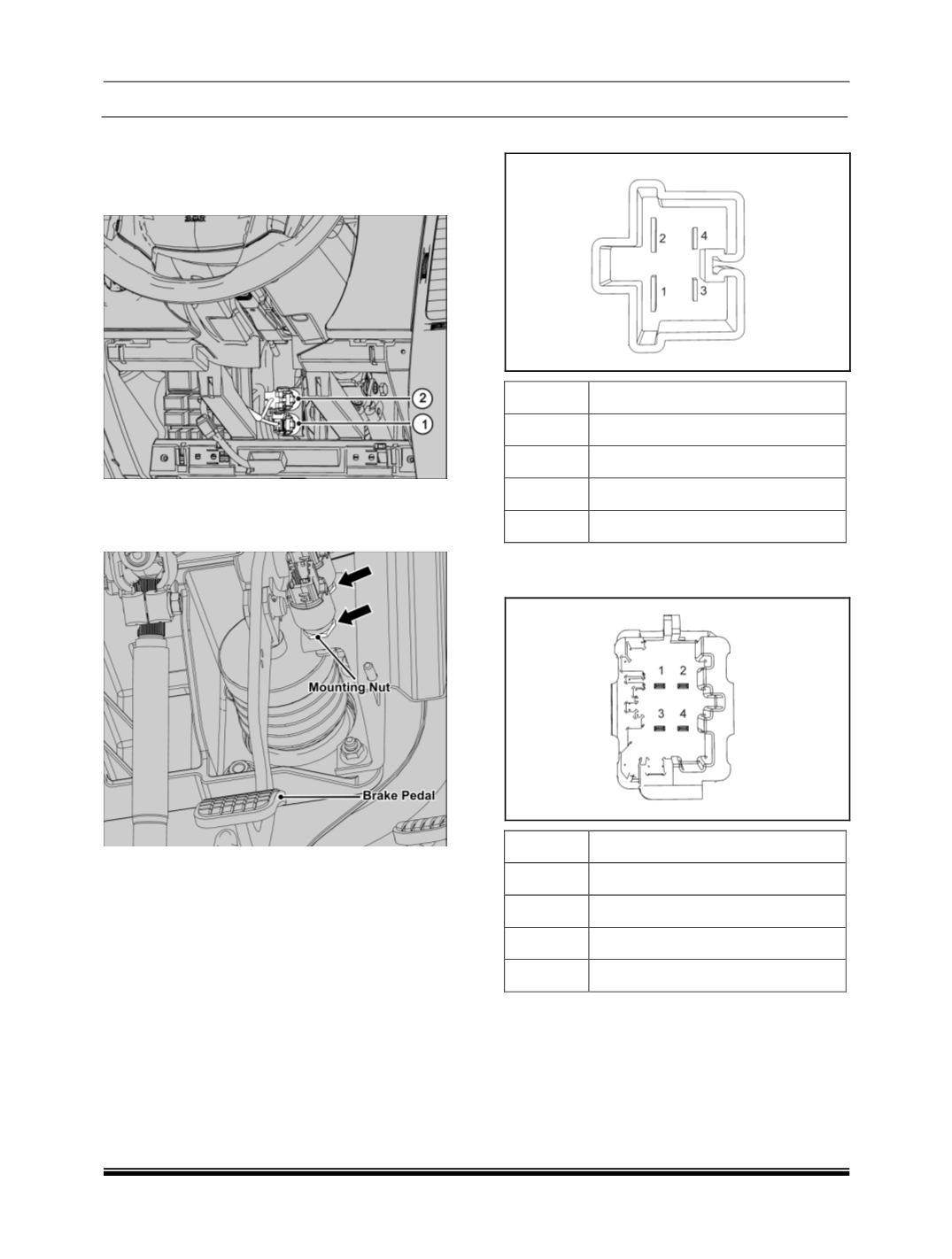

1. Disconnect electrical connections of brake light

switch (1) and brake switch for cruise control (2)

(If fitted)

2. Loosen the mounting nut of brake switch and

take out the brake switch by rotating anticlock-

wise direction.

INSPECTION

Disconnect the connector and check the continuity

between the following pins. When the pedal is de-

pressed there should be connectivity and when it is

released to rest position there should not be con-

nectivity.

Brake Light Switch:

Pins 1 and 2 for Brake light circuit.

Pins 3 and 4 for Brake signal to EMS circuit

Brake switch for Cruise

Pins 1 and 3 for Brake pedal signal for cruise con-

trol.

For switch adjustment details, refer brake section

PIN OUT

PIN NO DESCRIPTION

Ignition

Supply to tail lamp

Ignition

Signal to EMS

BRAKE PEDAL SWITCH

(FOR VEHICLES WITH

CRUISE CONTROL)

PIN NO DESCRIPTION

Ignition

Signal to EMS

(Cruise Control)

REFITMENT

1. Fit the brake light switch on the mounting bracket

and tighten its mounting nut.

NOTE

Refer brake section for brake switch adjustment

details.
