Check the resistance



1.7K ohm +/- 0.8 between terminals 1 & 5



1.2K ohm +/- 0.5 between terminals 2 & 3

REFITMENT

1. Locate accelerator pedal module and fit 4

mounting nuts.

2. Connect the accelerator pedal electrical con-

nector (1) to the accelerator pedal module.

12. BRAKE SWITCH

The brake pedal is fitted with two Brake switches,

which provide the information to ECU about the

brake pedal application.



Upper brake switch give signal to EMS ECU for

cruise control functionality.



Lower brake switch give signal to tail lamp&

ABS/ESP ECU.

NOTE

Brake switch for cruise control is fitted only if the

vehicle is having cruise control feature.

LOCATION

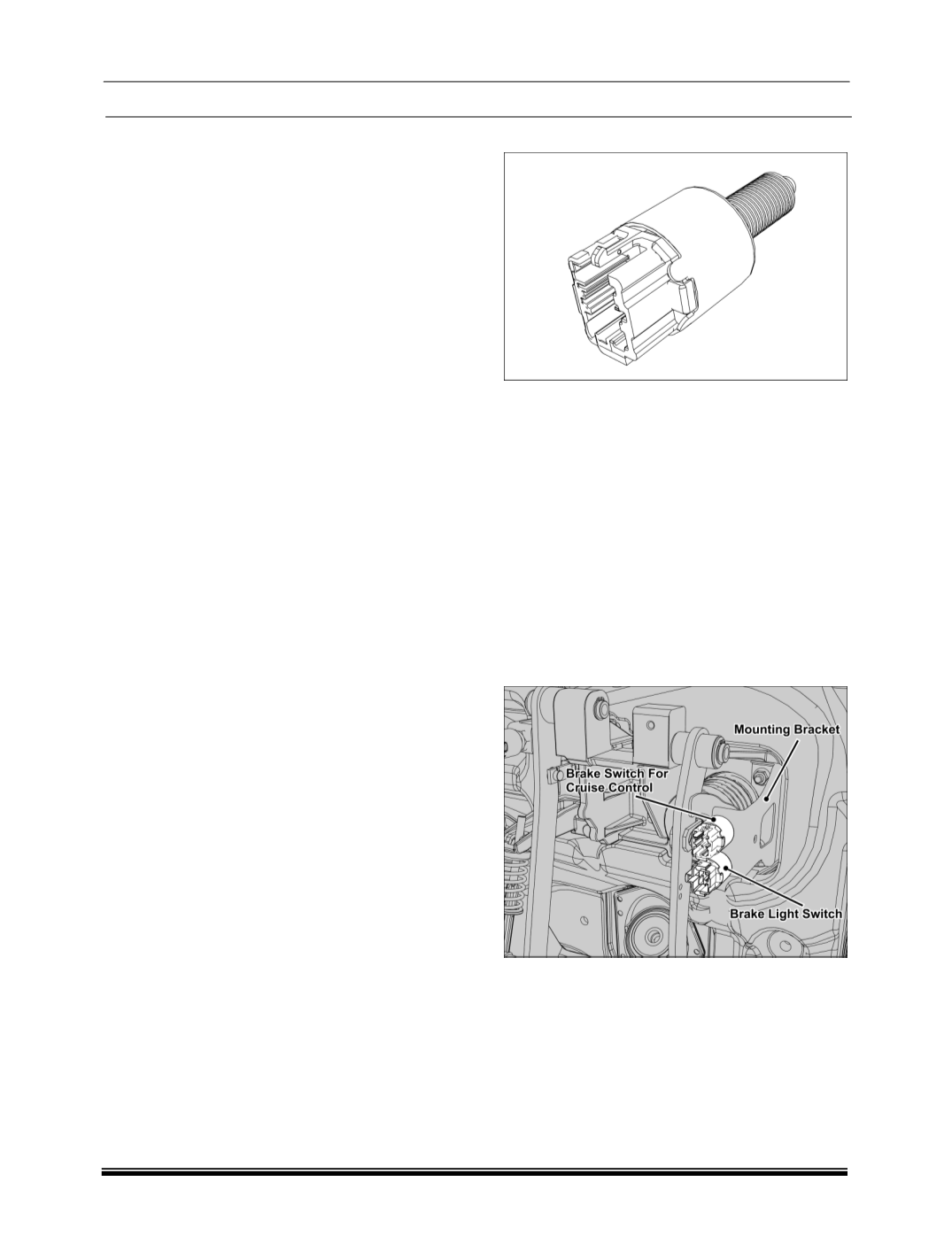

Brake switches are fitted on brake light switch

mounting bracket.
