HEXA

SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

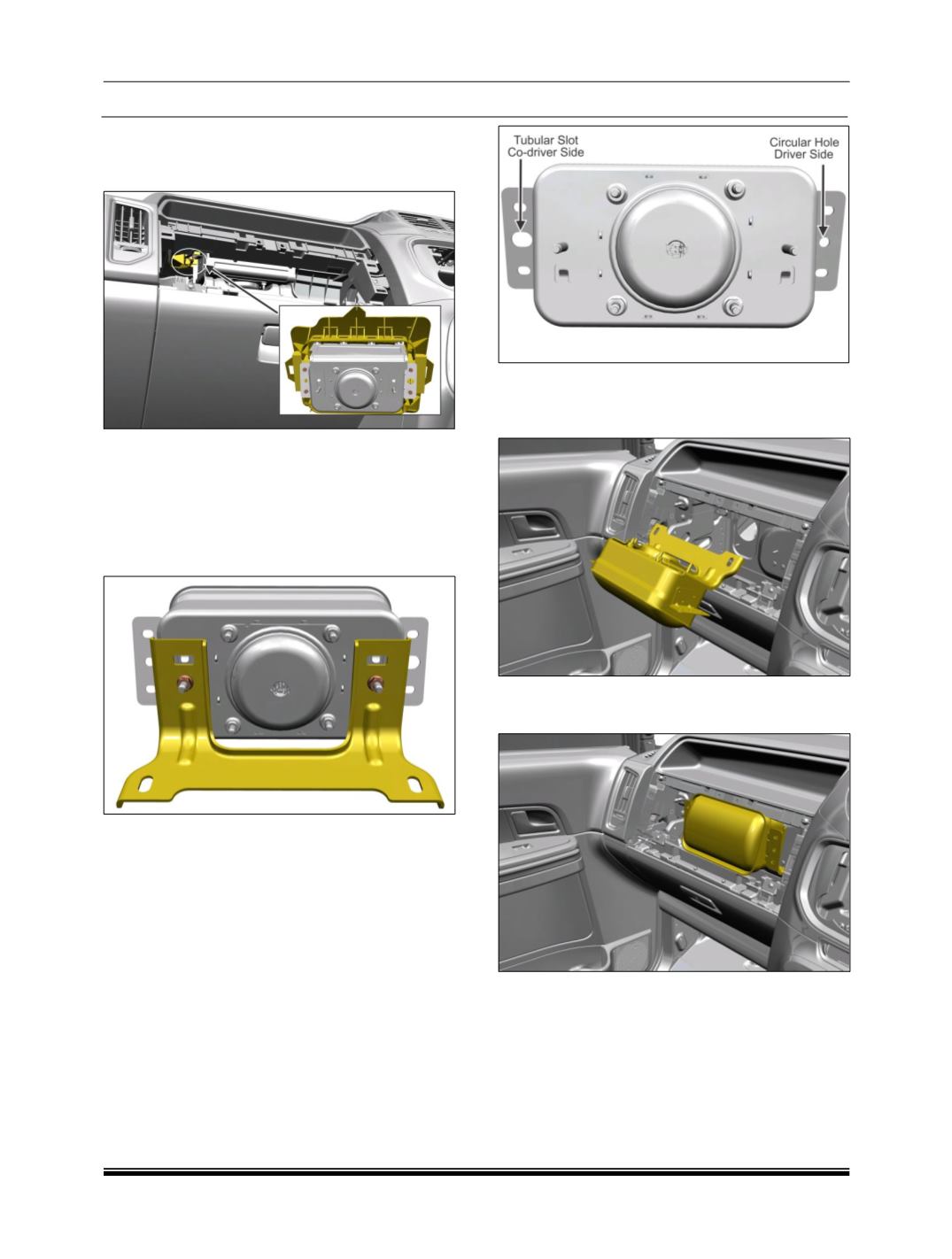

7. Loosen and remove the mounting flange screws

which hold the PAB module with the chute chan-

nel on the dashboard.

8. Carefully remove the PAB module from the chute

locators and take out the PAB module from the

dashboard assembly.

FITMENT

1. Assemble the PAB module with the air bag

bracket.

NOTE

As the locators on chute channel are different. Care

should be taken while fitting the PAB module on the

dashboard that the tubular slot on the PAB module

should be towards co-driver side.

2. With PAB facing towards you insert the PAB

module in the dashboard by tilting the same

through the top utility bin area.

3. Again adjust the PAB module such that the bag

folding is facing towards you.
